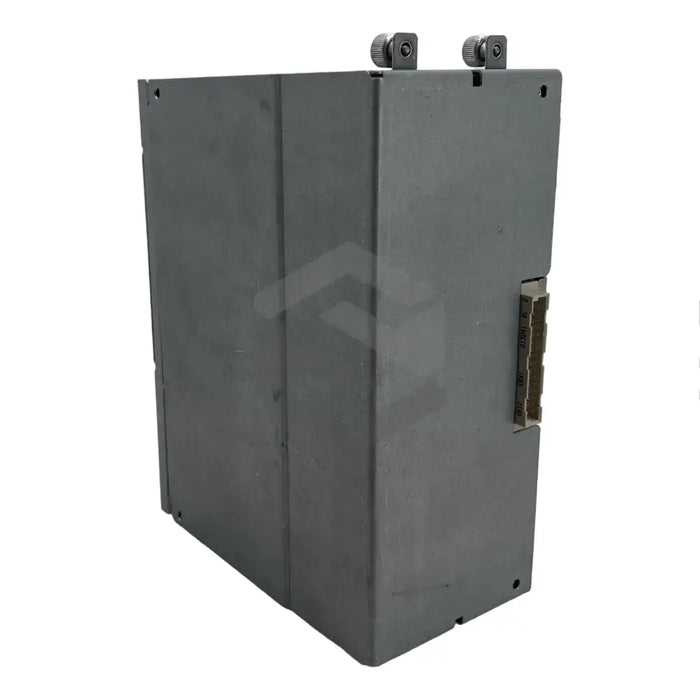

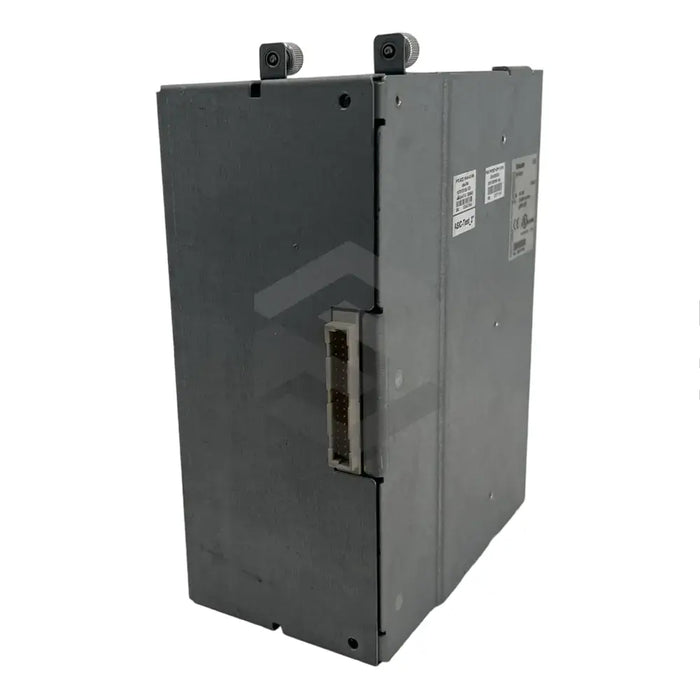

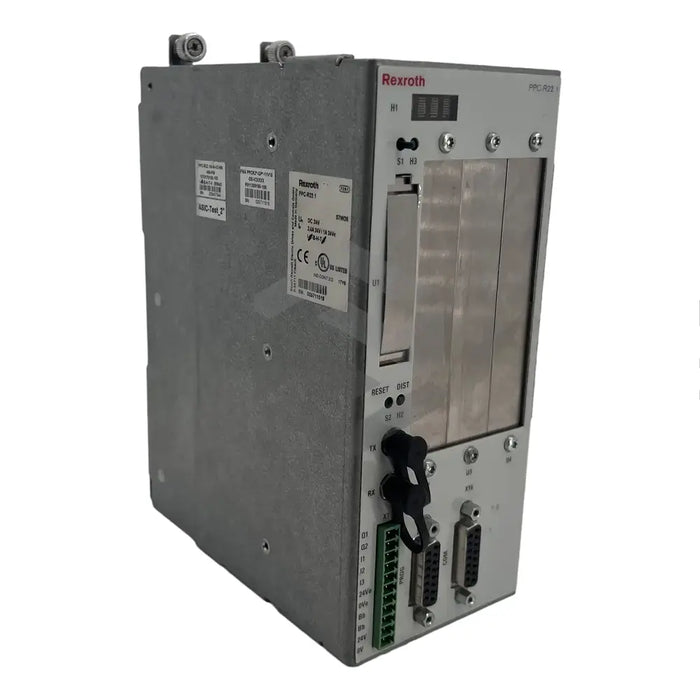

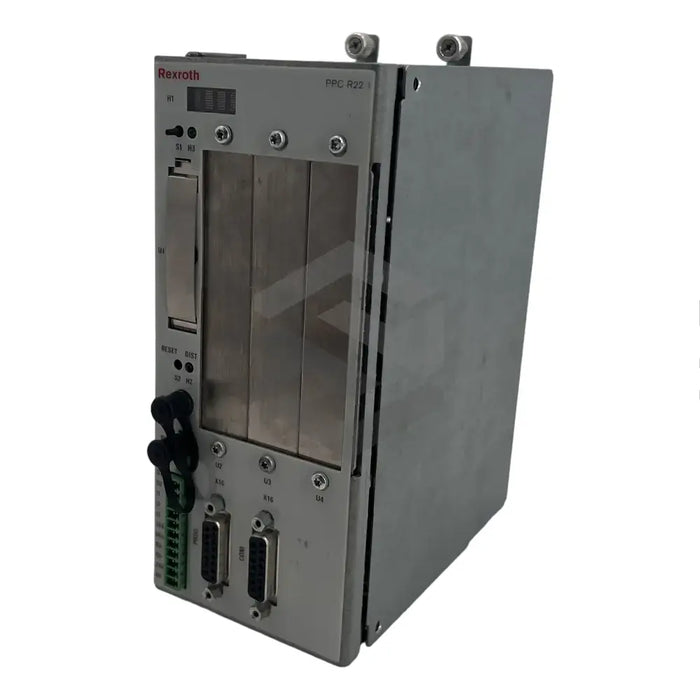

C image of PPC-R22.1N-N-NN-NN-NN-FW | Main (Front Left)

PPC-R22.1N-N-NN-NN-NN-FW

by Bosch Rexroth Indramat
$5,981.60 - $5,981.60
$5,981.60
$5,981.60 - $5,981.60
$5,981.60

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat's PPC-R22.1N-N-NN-NN-NN-FW is a version 1 R22 series controller, combining motion and logic features in a lightweight, compact unit. It comes equipped with 14 technical features including the S1 display toggle button, a 32 MB flashcard slot, SERCOS interface transmitter and receiver, programming and communication ports. Weighing only 1.3 kg, it mounts onto TS 35x27x15 DIN rails using RMB02.2 racks. Operating humidity is 5-78% without condensation, and the unit has an IP20 rating for dust protection. The controller operates within 0-45 degree Celsius, but can withstand -25 to 70 degree Celsius for storage and transport. Pulling 1.2 Amps at 24v DC, the unit's real-time clock can maintain accurate time for up to 3 days without power thanks to a dedicated capacitor. The device is also noted for its quick I/O processing. Please note, the hardware lacks expansion cards and Ethernet, hence firmware is ordered separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

PPC-R22.1N-N-NN-NN-NN-FW

Series

R22 Series version 1

Features

14

Weight

2.87 pounds (1.3 kg)

Installation Method

TS 35x27x15 DIN rails with RMB02.2 racks

Housing Protection

IP20

Humidity Level

5%-78% non-condensing

Atmospheric Pressure at 1500m

860 to 1080 hPa

Operating Temperature

0 to 45 degree Celsius

Storage and Transportation Temperature

-25 to 70 degree Celsius

Supply Voltage

24 Volt DC

Current Consumption

1.2 Amperes

Internal Clock Backup

None

Real Time Clock Power Source

Capacitor (up to 3 days)

I/O Processing Speed

fast

Digital Input Delay Time

50 microseconds

Digital Output Response Time

less than 500 microseconds

Firmware

To be ordered separately

Ports

Two serial ports, no Ethernet

Expansion Card

None

Extra Firmware

GPP 10 and Bootloader firmware to be ordered separately.
