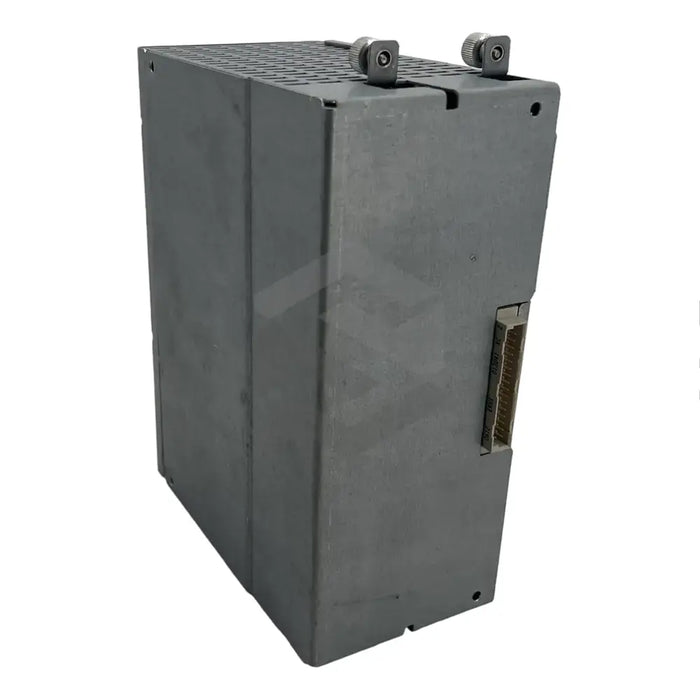

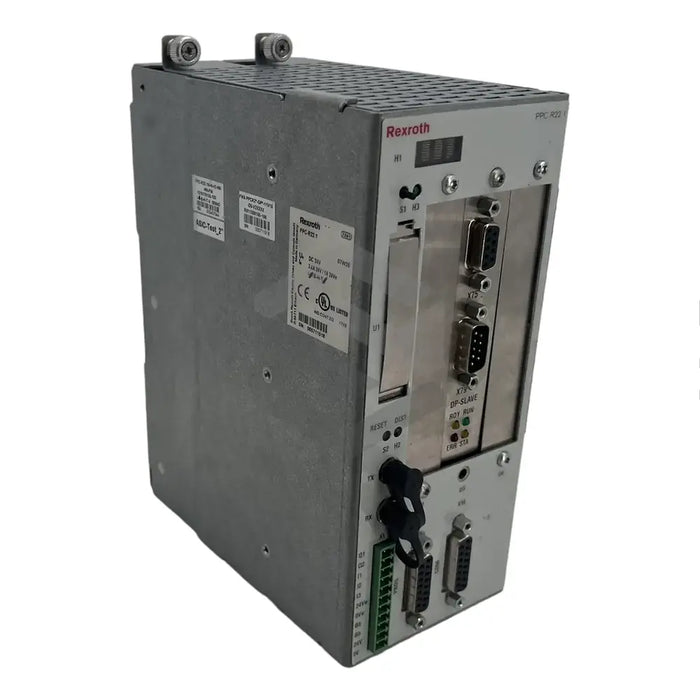

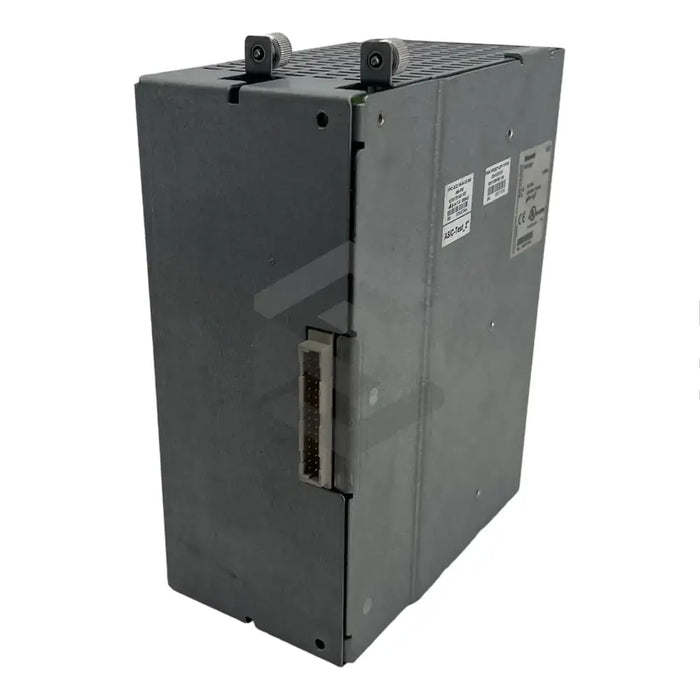

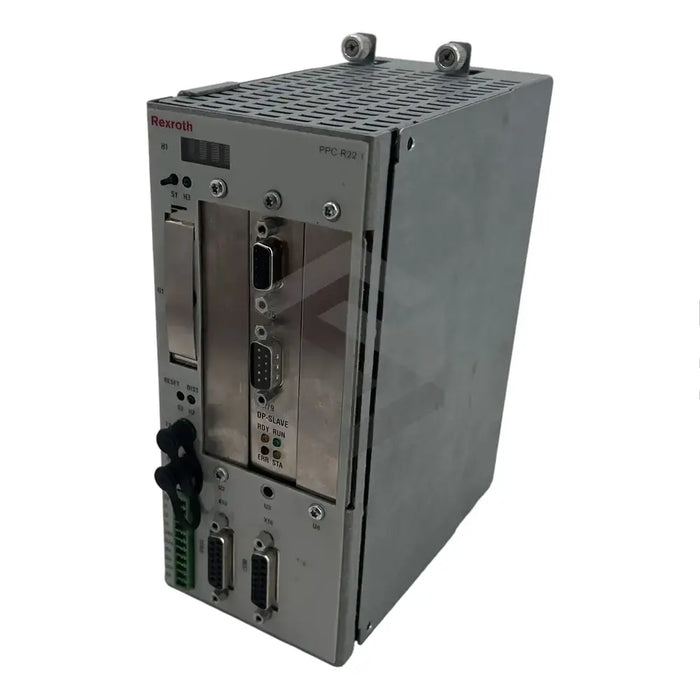

C image of PPC-R22.1N-N-NN-P1-NN-FW | Main (Front Left)

PPC-R22.1N-N-NN-P1-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The PPC-R22.1N-N-NN-P1-NN-FW, crafted by Bosch Rexroth Indramat, is an industrial automation equipment that specializes in the manufacturing and maintenance of motion/logic controls, servo motors, and converters. It is notable for its PROFIBUS-DP master module, which sports a 64 byte input/output capacity. This model is designed for seamless communication with I/O devices through its standard 9 pin Profibus D-sub connector. Notably, this module operates within a temperature range of 0 to 55 degrees Celsius. For programming purposes, the VisualMotion Toolkit (PC software) leverages the model's GPP 10 firmware to control up to 40 intelligent servo drives. The PPC-R22.1 control pairs well with Rexroth IndraDrive, Diax 04, and EcoDrive 03 drives, using a SERCOS interface for real-time communication. Installation vertically is recommended, and the model operates at a rated voltage of 24 VDC, consuming a maximum current of 1.2 A.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

PPC-R22.1N-N-NN-P1-NN-FW

Module

PROFIBUS-DP master module

Input/Output Capacity

64 bytes

Connector Type

9 pin Profibus D-sub

Operating Temperature

0 to 55 degree Celsius

Communication system

VisualMotion Toolkit (PC software)

Firmware

GPP 10

Compatible drives

Rexroth IndraDrive, Diax 04, EcoDrive 03

Installation method

Vertically in slot 00 of Reco 02 rack

Operating Voltage

24 VDC

Current Consumption

1.2 A

Display

4-digit alpha-numeric matrix display (H1)

Storage

PFM01.1 compact flash memory card and onboard NVRam memory

Clock

Real-time clock inside control

Protection Category

IP 20

Ambient Temperature

0 to +45 degree Celsius

Installation Height

Up to 1500 meters above sea level

Weight

1.3 kg

Memory Expansion

No.
