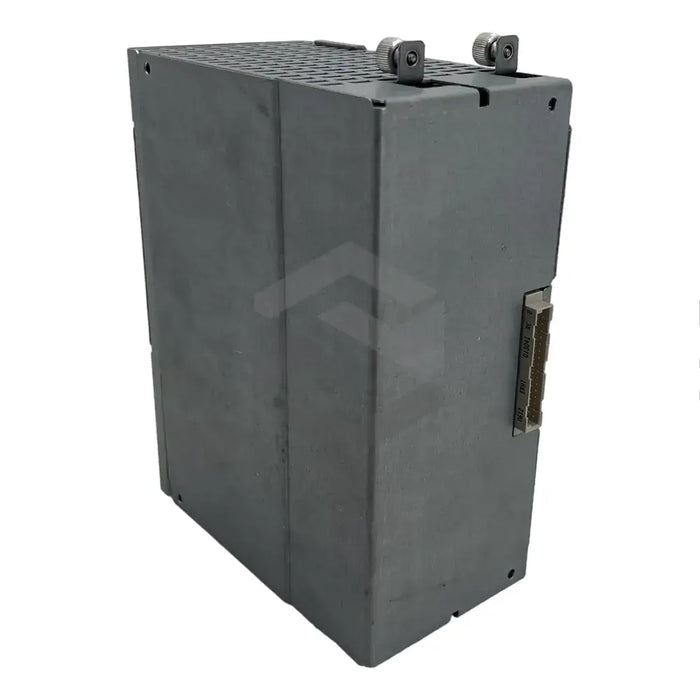

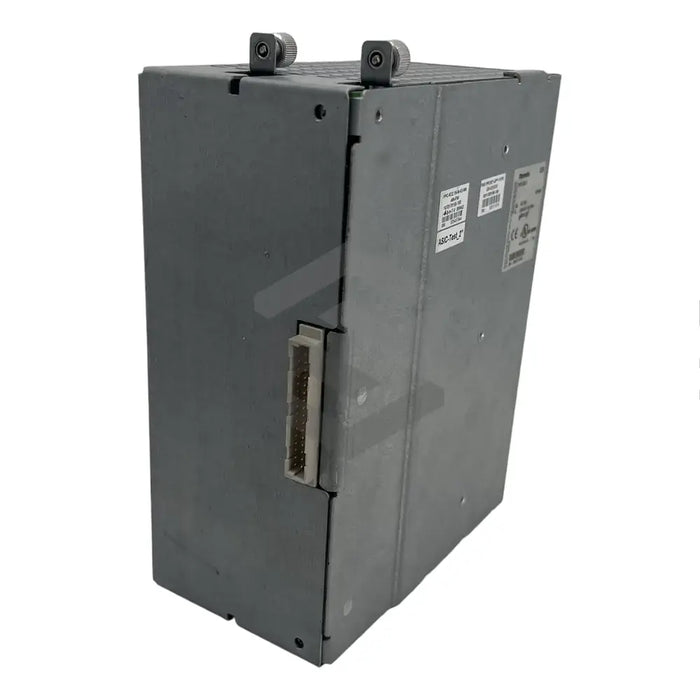

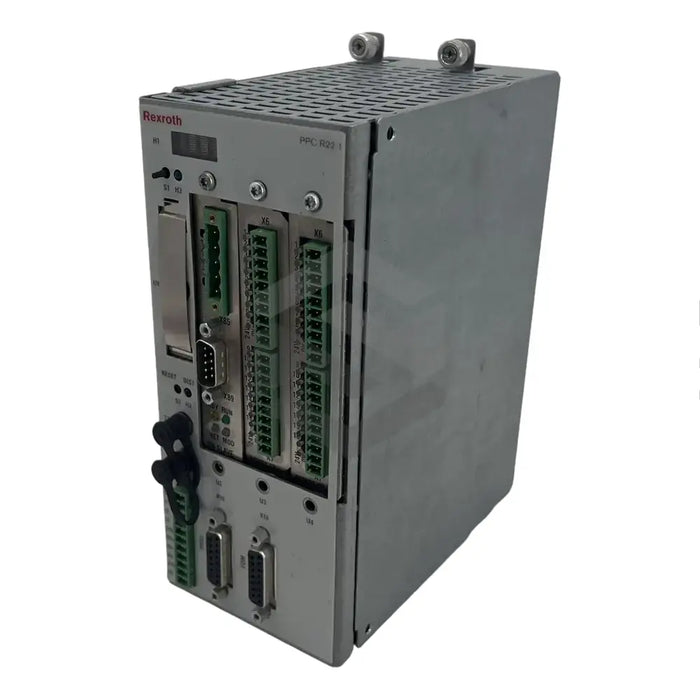

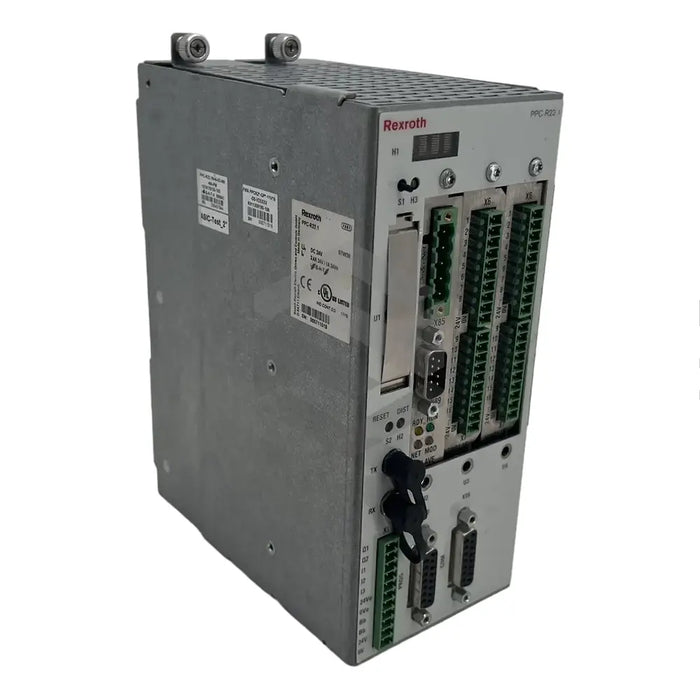

PPC-R22.1N-N-V1-N1-N2-FW

Request a quote
Bosch Rexroth Indramat's PPC-R22.1N-N-V1-N1-N2-FW controller is a robust, high-efficiency piece of equipment designed to address various motion control problems in the industrial sector. This product is made by a team of seasoned engineers and technicians. It weighs 1.3 kg and comes in dimensions of 83.7 mm x 192 mm x 150 mm, with an IP20 EN60529 protection. It utilizes a Lithium 3.5V battery, recommended for annual replacement, to optimize performance. Compatible ambient temperatures range from 0 to +45 °C for operation, and -25 to +70 °C for storage or transport. The relative humidity during operation should be within 10 to 95%, and it should be within 5 to 95% during storage or transport. Moreover, the device operates at an air pressure of 86 to 106 kPa. Lastly, its power supply rating is 24V DC, with a maximum ripple of 5%, with power consumption reaching up to 3.5A (1.2A + 2.3A maximum i/o bus supply).
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: PPC-R22.1N-N-V1-N1-N2-FW controller
  • Weight: 1.3 kgs
  • Dimensions: 83.7 mm x 192 mm x 150 mm
  • Protection Category: IP20 EN60529
  • Battery Type: Batterie Lithium 3,5V Konfektioniert (Mat. Nr. 226423)
  • Battery Replacement Recommendation: Annually
  • Operating Ambient Temperature: 0...+45 °C
  • Storage/Transport Temperature: -25...+70 °C
  • Relative Humidity During Operation: 10...95 %
  • Relative Humidity During Storage/Transport: 5...95 %
  • Air Pressure During Operation: 86...106 kPa
  • Air Pressure During Storage/Transport: 70...106 kPa
  • Rated Power Supply Value: 24V DC
  • Maximum Ripple: 5%
  • Permissible Power Supply Range: 19.2...30 VDC
  • Maximum Power Consumption: 1.2 A +2.3 A maximum I/O Bus supply.
