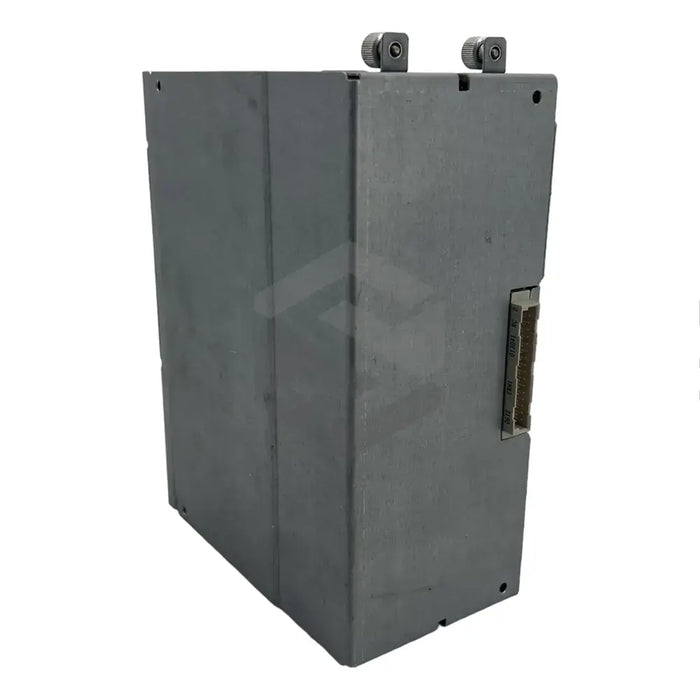

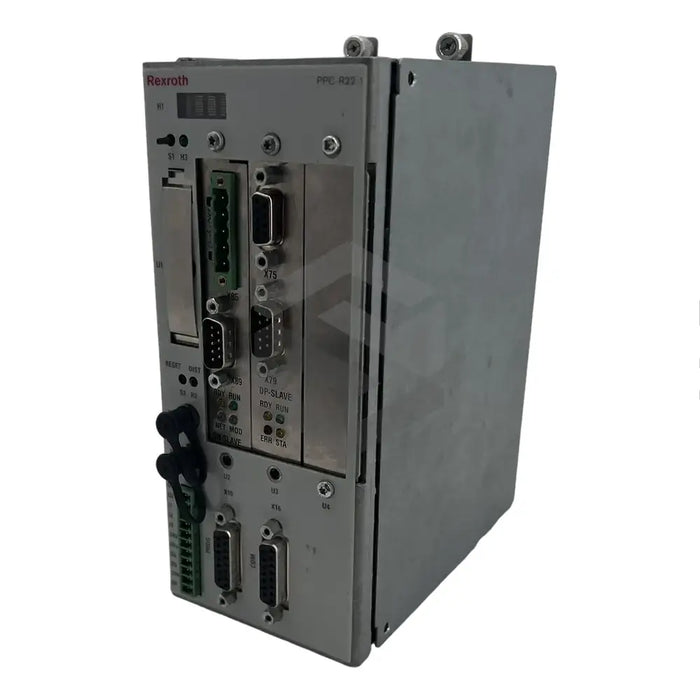

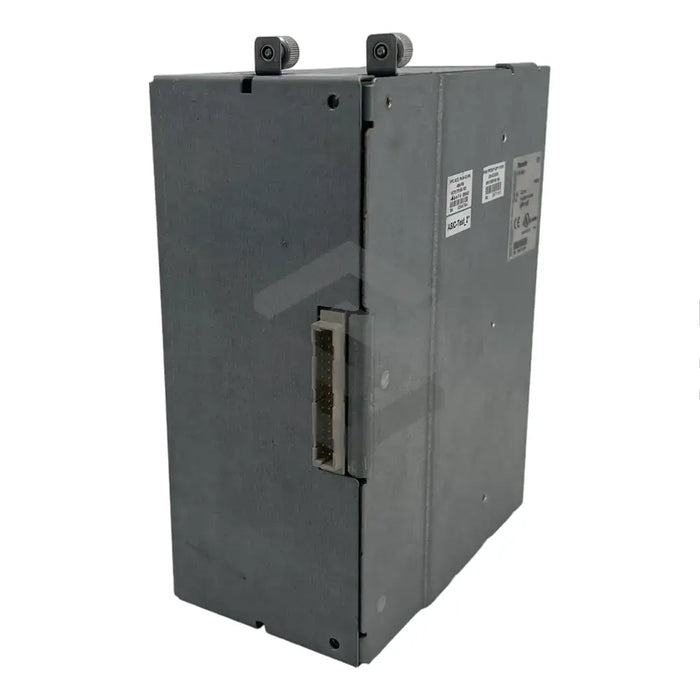

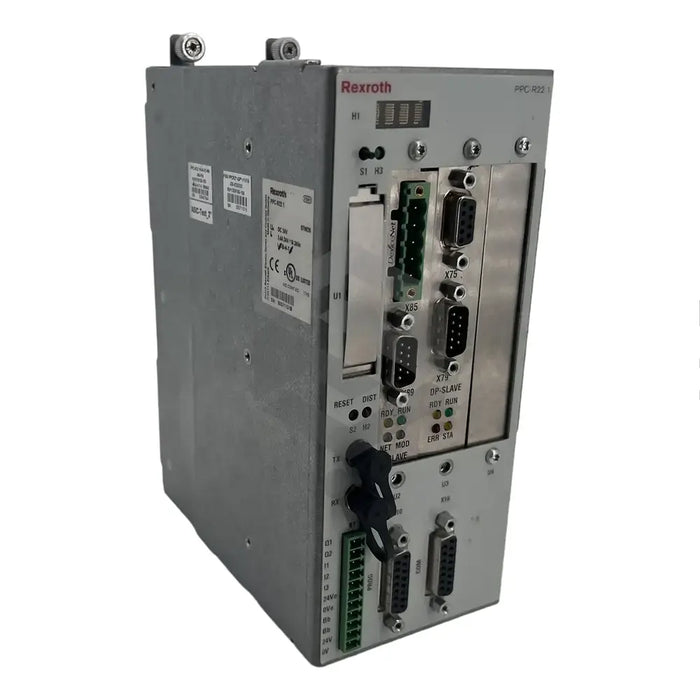

The PPC-R22.1N-N-V2-P1-NN-FW, produced by Bosch Rexroth Indramat, is a high-performing industrial motion control unit designed for drive automation applications. Leveraging the power of Visual Motion Logic software, the device works seamlessly with Eco 03, IndraDrive, and Diax 04 digital drives produced by Rexroth, and connects via the Sercos interface. Capable of managing coordinated and non-coordinated multi-axis movements via the Visual Motion GPP 10 firmware, the unit also features three Ethernet-supporting expansion slots. The functionality of the unit can be customized using Rexroth's Visual Motion Toolkit software. Compatible with BTV06, BTV04, and BTV05 Human Machine Interface panels, it provides significant diagnostic capabilities. The unit supports DeviceNet Fieldbus, Interbus Fieldbus, and Profibus Fieldbus interfaces. Ideal operation occurs in ambient temperatures between 5 ᵒC and 45 ᵒC, and the IP20 standard-rated 1.4 kg unit assures sturdy ingress protection.
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product type: Motion Control Unit
  • Form Factor: Reco 02
  • Data Exchange: Local Reco 02 back-plane bus
  • Software: Visual Motion Logic
  • Compatible Drives: Eco 03 digital drives, IndraDrive drives, Diax 04 digital drives
  • Interface: Sercos
  • Firmware: Visual Motion GPP 10
  • Expansion Slots: Three supporting Ethernet connections
  • Software for Parameter Adaption: Visual Motion Toolkit (VMT)
  • Human Machine Interface (HMI) Compatibility: BTV06, BTV04, BTV05
  • Fieldbus Slave Interface Support: DeviceNet Fieldbus Interface, Interbus Fieldbus slave interface, Profibus Fieldbus slave interface
  • Ambient Temperature Range: 5ᵒC to 45ᵒC
  • Weight: 1.4 kg
  • Ingress Protection: IP20 standard
