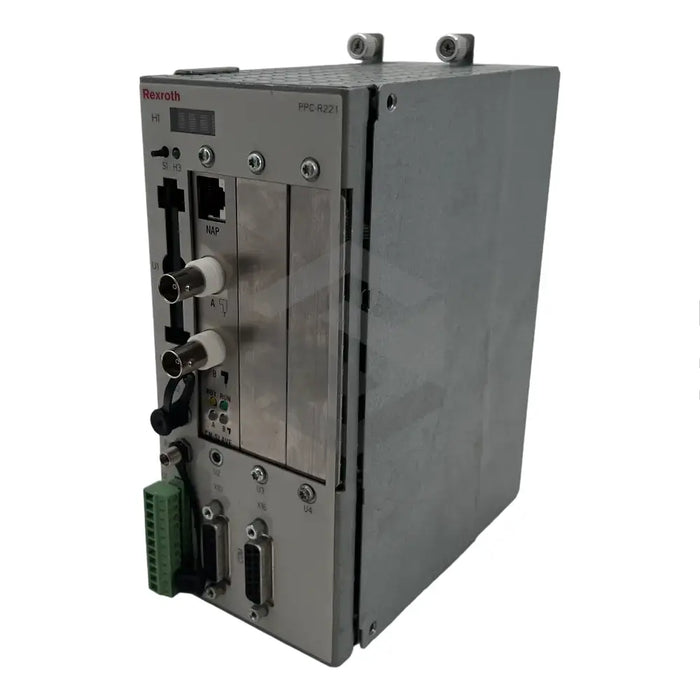

product Main (Front Left) image of PPC-R22.1N-T-L2-NN-NN-FW

PPC-R22.1N-T-L2-NN-NN-FW

by Bosch Rexroth Indramat
$12,303.00 - $12,303.00
$12,303.00
$12,303.00 - $12,303.00
$12,303.00
In Stock, Ships Today
Produced by Bosch Rexroth Indramat, the PPC-R22.1N-T-L2-NN-NN-FW CNC module offers potent, compact, and adaptable control over machinery, particularly when employed with an MTS-R01.2 PLC control unit. The module is capable of supporting an axis processor in its optional sockets and holding application-specific NC data persistently within its SRAM. However, the data is entirely eradicated if the lithium battery fully discharges. This module is unable to function with MTC-P or MTC-R active axis processor modules and should not be operated under severe temperature variances. The firmware components for APR and CPU are only loadable with a boot monitor or loader, playing a vital role in SERCOS interface communication, axes interpolation, and several other axis-related functions. The module is circumscribed by a specific operational and transportation temperature range (-25°C and 70°C), with a relative humidity of 5% to 95% during transport and storage. It requires trained and qualified personnel for operation and installation inside a switch cabinet, as mishandling may result in personal injury or material damage.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: PPC
  • Product Model: PPC-R22.1N-T-L2-NN-NN-FW
  • Grounding Bolt: Present at the bottom
  • Optional Sockets: Supports plugging of an axis processor module
  • Compatible PLC control unit: MTS-R01.2
  • NC Data Storage: SRAM (Residual Storage)
  • Axis Processor Modules Compatibility: Incompatible with MTC-P and MTC-R
  • Firmware Components: Loadable through user interface (APR and CPU)
  • APR Firmware: Responsible for communication through the SERCOS interface, axes interpolation and other axes related functions
  • COM Diagnosis Serial Interface Settings: 9600 Baud, 1 stop bit, no parity and 8 data bits
  • Recommended Usage: Machining centers
  • Temperature Range: Must not be used in high temperature fluctuation conditions
  • Potential Risks: Electric shock, bodily harm, material damage when tampered with
  • Storage and Transport Temperature: Between -25°C and 70°C
  • Relative Humidity for Transport and Storage: 5% to 95%
  • Power Supply Cable Cross-Section: 0.75mm2 to 1.5mm2
  • Personnel Requirement: Qualified and trained to operate and use
  • Installation Requirement: Inside a switch cabinet
  • Control: Module rack system unsuitable for CNC module control
