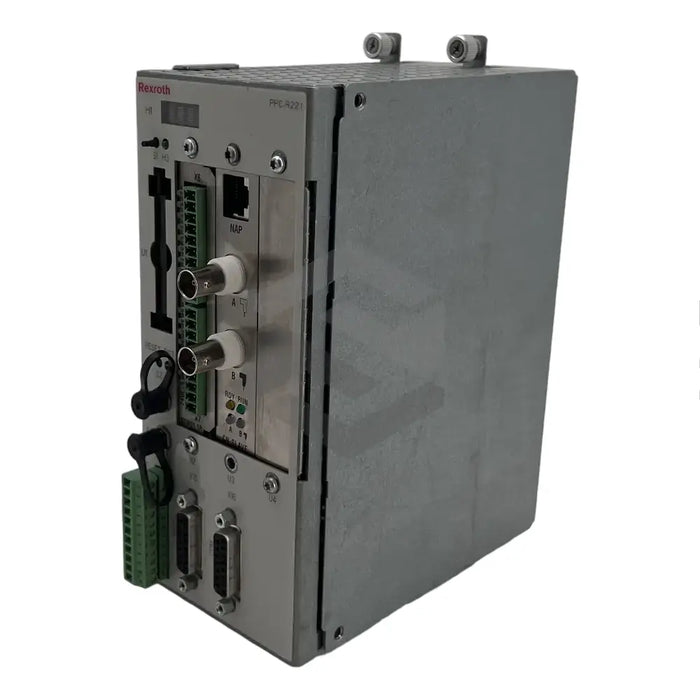

C image of PPC-R22.1N-T-N1-L2-NN-FW | Main (Front Left)

PPC-R22.1N-T-N1-L2-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat PPC-R22.1N-T-N1-L2-NN-FW is a high-quality automation controller, suitable for regulating up to 40 intelligent digital drives. With a permissible voltage of 19.2 to 30 VDC and maximum current of 1.2 A, it operates efficiently within a height of 1500 meters above sea level. The device utilises VisualMotion Toolkit PC software for programming and commissioning of motion and logic control, and it fits into the Reco 02 rack slot 00. The controller communicates through the SERCOS interface with Reco 02 input/output modules. Operating with GPP 10 firmware, the model features an optional onboard EtherNet connection and up to two PLS master modules. The unit incorporates a PFM01.1 compact flash memory card and NVRam memory, offering a 4-digit alphanumeric H1 display and two serial interface ports. The controller, which operates within 0 to +45 degrees Celsius, is IP 20 protection standard certified.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Drive Controller

Model

PPC-R22.1N-T-N1-L2-NN-FW

Control Capacity

Up to 40 intelligent digital drives

Permissible Voltage Range

19.2 – 30 VDC

Maximum Current

1.2 A

Programming Software

VisualMotion Toolkit (PC software)

Installation Location

Slot 00 of the Reco 02 rack

Communication Interface

SERCOS

Maximum Operating Height

1500 meters above sea level

Firmware

GPP 10

Optional Features

Onboard EtherNet connection and PLS (programmable limit switch) master module

Memory Options

PFM01.1 compact flash memory card and onboard NVRam memory

Display

4-digit alphanumeric H1 display

Serial Interface Ports

Two

Operable Ambient Temperature Range

0 to +45 degree Celsius

Storage and Transportation Temperature Range

-25 to +70 degree Celsius

Protection Standard

IP 20.
