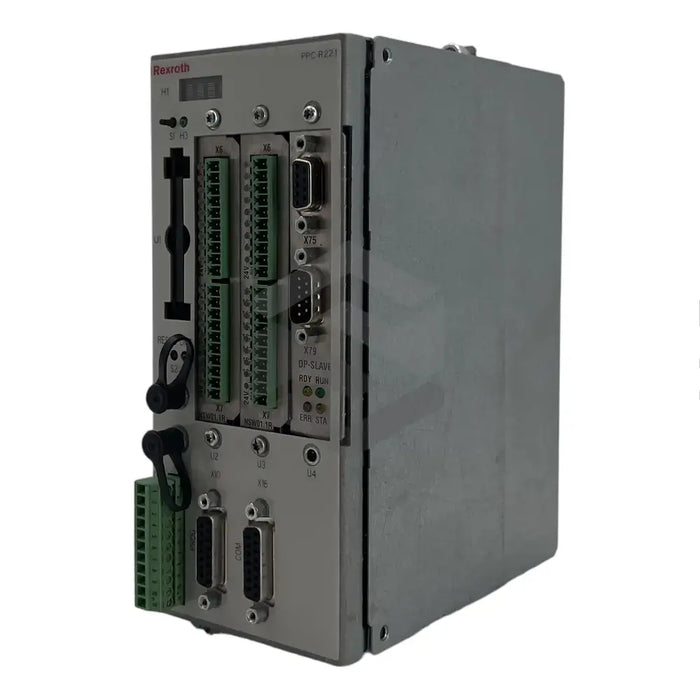

C image of PPC-R22.1N-T-N1-N2-P2-FW | Main (Front Left)

PPC-R22.1N-T-N1-N2-P2-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth manufactured PPC-R22.1N-T-N1-N2-P2-FW model is a component of the VisualMotion 10 control system, which can manage up to 40 intelligent digital drives from reknown Rexroth IndraDrive, Diax 04, and EcoDrive 03 drive systems. This model uses a SERCOS interface for drive-related communications and a LocalReco 02 back-plane bus for data exchange. Designed for use in either solitary or multiple axis drives, this model needs programming, utilizing the PC software VisualMotion Toolkit. The unit can handle a voltage range of 19.2 – 30 VDC with a ripple limit of 4 Vpp and the capacity for installation in slot 00 of the Reco 02 rack. It falls under IP20 protection standard, so it defends against solids larger than 12mm but not liquids. The PPC-R22.1N-T-N1-N2-P2-FW model includes a programmable limit switch module and allows for optional connection via ethernet or DCOM. Additionally, it comes with a 4-digit alphanumeric matrix display, a 32 MB compact memory card, while its firmware is ordered separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

PPC-R22.1N-T-N1-N2-P2-FW

Product Type

VisualMotion 10 Control System

Communication Interface

SERCOS

Data Exchange

LocalReco 02 back-plane bus

Voltage Range

19.2 – 30 VDC

Ripple Permissible

4 Vpp

Mounting Position

Vertical Upright

Protection Standard

IP 20

Clearance for heat dissipation

Minimum at top and bottom

Programming Software

VisualMotion Toolkit

Programmable limit switch (PLS)

Master and Slave Module included

Communication Access

Optional EtherNet connection or DCOM

Altitude Level

Up to 1500 meters without reduction in rated data

Ambient temperature range

0 to +45 degree Celsius

Display

H1 4-digit alphanumeric matrix display

Memory Storage

32 MB compact memory card

Firmware

Must be ordered separately.
