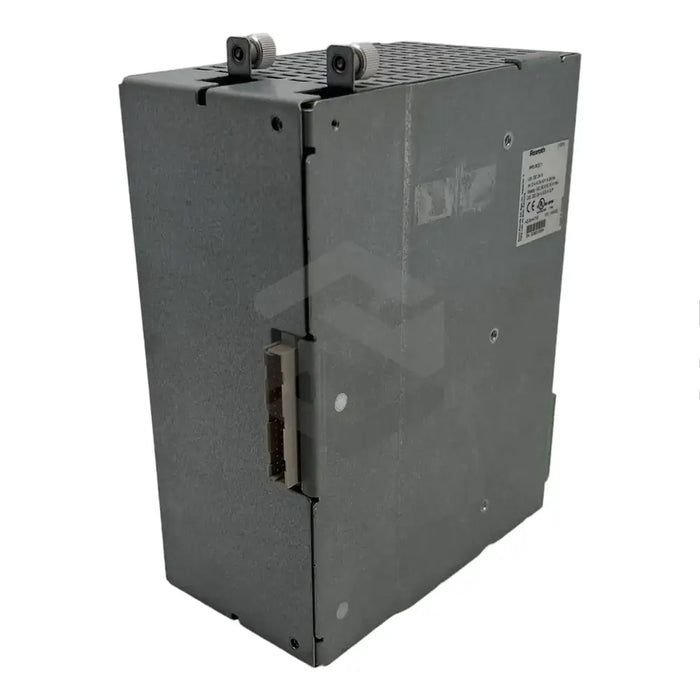

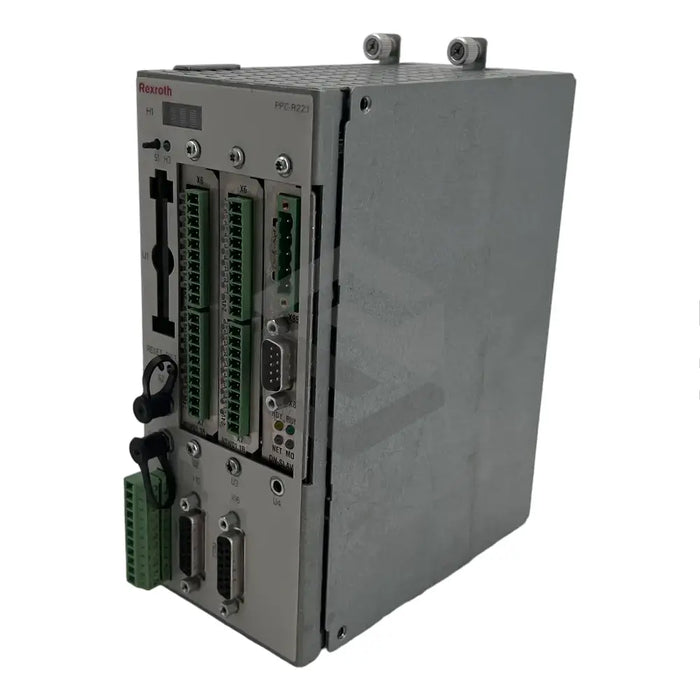

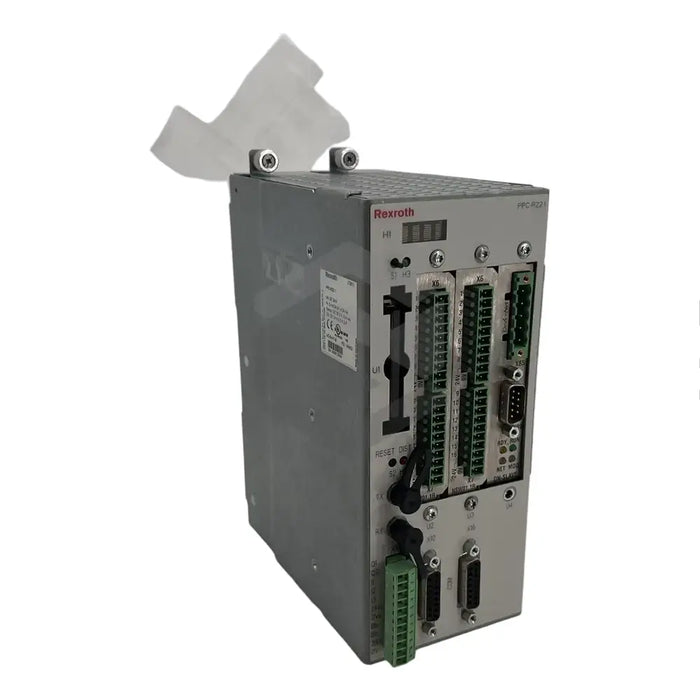

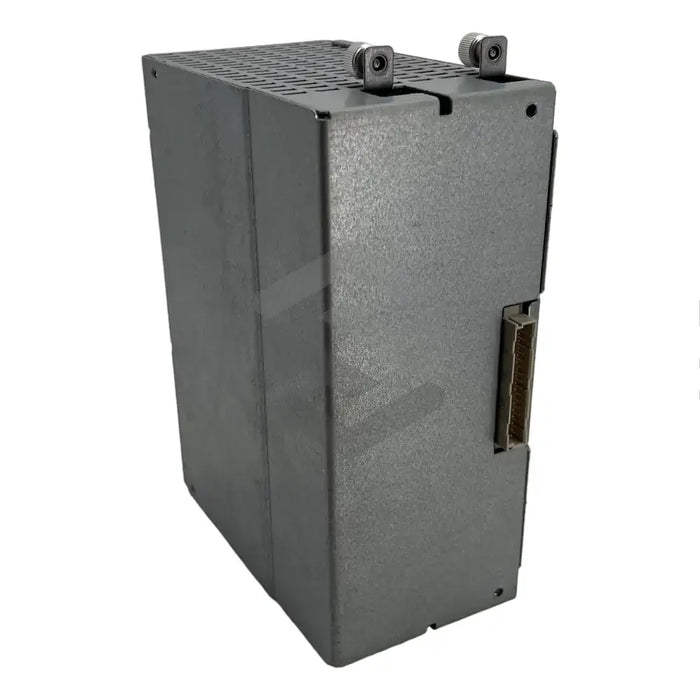

C image of PPC-R22.1N-T-N1-N2-V1-FW | Main (Front Left)

PPC-R22.1N-T-N1-N2-V1-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The PPC-R22.1N-T-N1-N2-V1-FW by Bosch Rexroth Indramat is a standalone multi-axis motion and logic control housed in a Reco 02 form factor. It's synced with EcoDrive03, DIAX04 and IndraDrive digital drives from Rexroth through a SERCOS interface. The control is programmed using the VisualMotion Toolkit on a PC. It features three expansion slots, an integrated Ethernet interface, and comes fitted with a DeviceNet Master module, a PLS slave module, and a PLS master module. Firmware must be ordered separately and it does not come with a memory module. Measuring 214 x 83.7 x 165 mm and weighing 2.87lbs, it takes a maximum of 1.5 mm2 cross-sectional cable for power supply. It's mounted using RMB02.2 racks and offers IP 20 protection. The operating atmospheric pressure and relative humidity range from 860-1080 hPa and 5-78% respectively, and it functions best within a temperature range of 32-113°F.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Stand-alone multi axis motion and logic control

Form Factor

Reco 02

Recommended Drives

EcoDrive03, DIAX04 and IndraDrive digital drives from Rexroth

Interface

SERCOS interface

Programming Software

VisualMotion Toolkit

Expansion Slots

Three slots with DeviceNet Master module, a PLS slave module, a PLS master module

Ethernet Interface

Integrated

Dimensions

214 x 83.7 x 165 millimeters

Shipping Weight

2.87 pounds

Cable Cross-Sectional Area

Up to 1.5 mm2

Mounting Method

RMB02.2 racks mounted on TS rails

Enclosure Protection Rating

IP 20

Operational Humidity

5 to 78%

Storage and Transportation Humidity

5 to 95%

Atmospheric Pressure

860 and 1080 hPa

Elevation

Maximum 1500 meters above sea level

Ambient Temperature Range

32 to 113 degrees Fahrenheit
