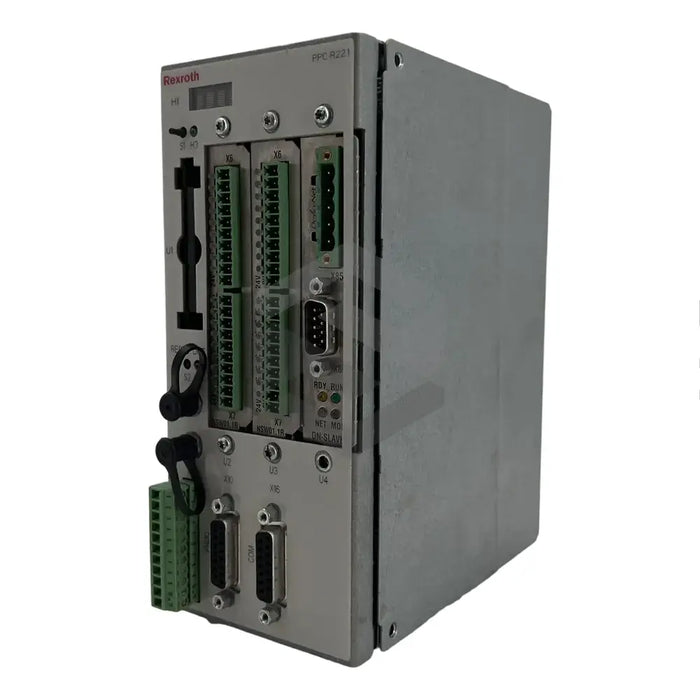

C image of PPC-R22.1N-T-N1-N2-V2-FW | Main (Front Left)

PPC-R22.1N-T-N1-N2-V2-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The PPC-R22.1N-T-N1-N2-V2-FW is a versatile controller manufactured by Bosch Rexroth Indramat. Designed for IP 20 rated housing, it can function as a Numerical Control (NC) or Programmable Logic Controller (PLC), depending on the firmware. The device measures 214mm in height, 83.7mm in width, and 165mm in depth, and weighs approximately 1.3 kg. It necessitates proper grounding through a wire measuring at least 6 mm2 in cross-sectional area. The controller lacks an integrated memory module but provides an Ethernet interface. It requires a 24 Volt DC power supply able to provide 1.2 Amps. Enhanced connectivity is offered through RS 232/RS 422/RS 485 programming and general serial interfaces, and an Indramat BT bus interface. Programmable via Bosch's VisualMotion Toolkit, the controller is customizable with optional DeviceNet slave, PLS master, and PLS slave modules. Installation and setup must be by trained personnel to prevent possible injury or equipment damage.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Controller

Model

PPC-R22.1N-T-N1-N2-V2-FW

Ratings

IP 20

Dimensions

214mm height, 83.7mm width, 165mm depth

Weight

1.3 kilograms

Grounding Requirement

Minimum 6 mm2 cross-sectional area wire

Memory

No integrated memory module

Interface

Integrated Ethernet, RS 232 / RS 422 / RS 485 programming, RS 232 / RS 422 / RS 485 general serial, Indramat BT bus

Power Requirement

24 Volts DC, 1.2 Amps

Cable Requirement

0.75 to 1.5 mm2 cross-sectional area

Tolerance

Maximum 5% ripple on power input

Programming

PC based software VisualMotion Toolkit

Optional Modules

DeviceNet slave, PLS master, PLS slave

Firmware

To be ordered as per customer requirements

Installation

To be done by trained personnel.
