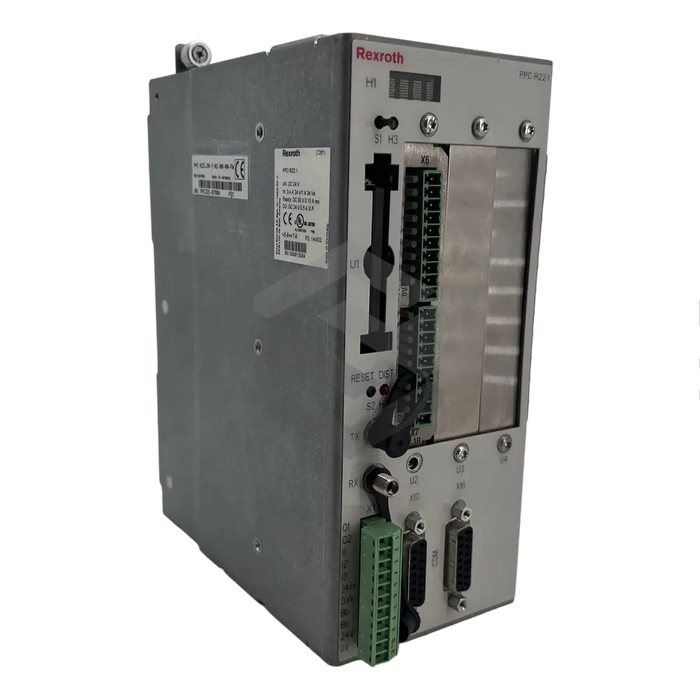

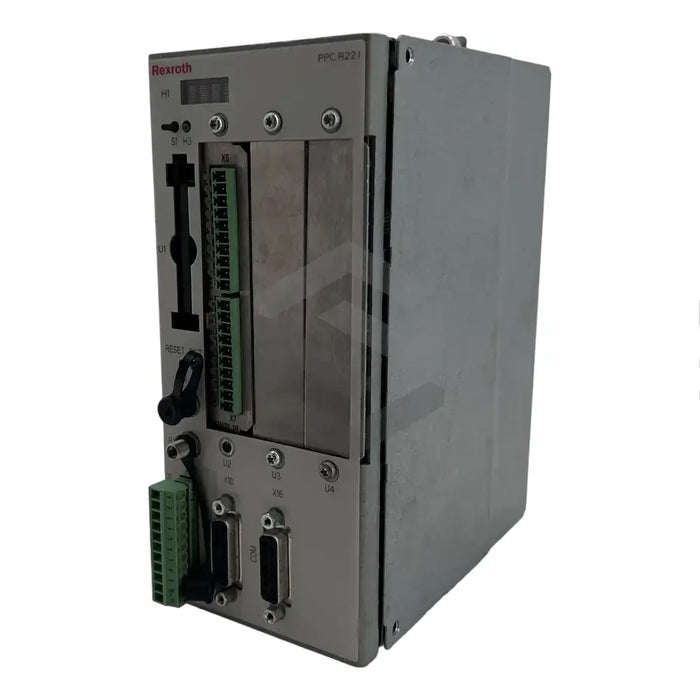

C image of PPC-R22.1N-T-N1-NN-NN-FW | Main (Front Left)

PPC-R22.1N-T-N1-NN-NN-FW

by Bosch Rexroth Indramat
$7,105.67 - $7,105.67
$7,105.67
$7,105.67 - $7,105.67
$7,105.67

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat PPC-R22.1N-T-N1-NN-NN-FW is a motion/logic control with integrated Ethernet, supporting Ethernet/IP slave fieldbus and standard TCP/IP. It features three expansion slots and comes with a factory-fitted PLS master module (programmable limit switch). This control model can connect to up to forty digital drives via SERCOS interface, compatible with Rexroth IndraDrive, Rexroth DIAX 04, and Rexroth EcoDrive 03. For programming and configuration, the VisualMoton Toolkit software from Bosch Rexroth is utilized, connecting through a serial programming interface that supports RS 232/RS 422/RS 485. The PPC-R22.1N-T-N1-NN-NN-FW is powered by a Power PC processor, equipped with 8MB of RAM, 256 bytes of EPROM, three digital inputs, and two digital outputs. Its IP 20 rated housing measures 214 x 83.7 x 165mm and weighs 2.87 pounds. It operates with DC input ranging from 19.2 to 30 Volts DC. The recommended operating temperature is 0 to 45 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Motion / Logic Control

Ethernet Support

Ethernet / IP slave fieldbus, Standard TCP / IP

Expansion Slots

3

Factory Fitted Expansion Module

PLS master module

Integrated Memory Module

Not Available

No. of Connectable Digital Drives

40

Compatible Drives

Rexroth IndraDrive, Rexroth DIAX 04, Rexroth EcoDrive 03

Programming & Configuration Software

VisualMoton Toolkit

Serial Programming Interface

RS 232 / RS 422 / RS 485

Processor Type

Power PC

RAM

8 Megabytes

EPROM

256 Bytes

Display

Four-Digit Front Panel

Digital Inputs

3

Digital Outputs

2

Housing Environmental Rating

IP 20

Dimensions

214 x 83.7 x 165 mm

Weight

2.87 pounds

Storage Temperature

-25 to 70 degrees Celsius

Operational Temperature

0 to 45 degrees Celsius

DC Input Range

19.2 to 30 Volts DC

Power Supply Load

1.2 Amps (Can increase by up to 2.3 Amps with I/O bus supply)
