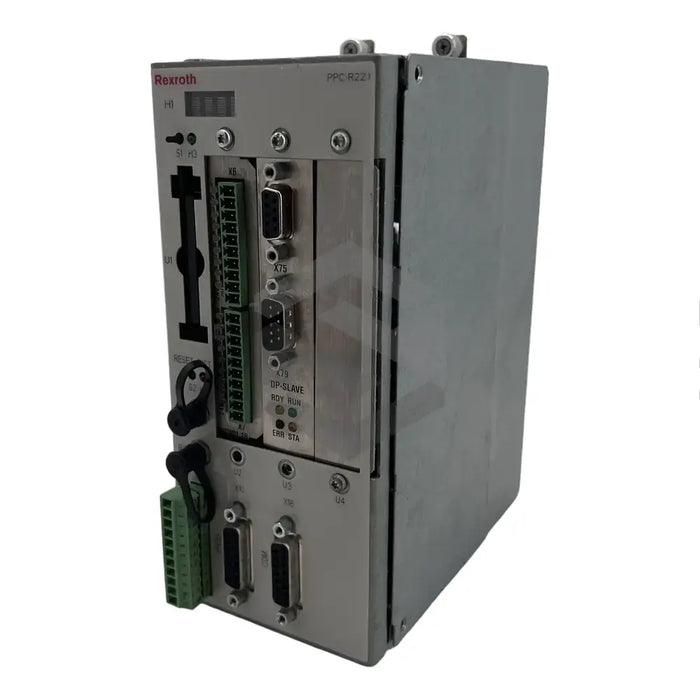

C image of PPC-R22.1N-T-N1-P2-NN-FW | Main (Front Left)

PPC-R22.1N-T-N1-P2-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The PPC-R22.1N-T-N1-P2-NN-FW, a product from Bosch Rexroth Indramat, is a standalone motion and logic control designed for robotics and general motion control. It operates based on the Bosch VisualMotion system and GPP10 firmware to offer both uncoordinated and coordinated multi-axis motion control integrated with logic functions. The PPC-R22.1 control, I/O modules, inline modules, VisualMotion Toolkit programming software, and Rexroth Indramat drive the system. Boasting three expansion slots, it comes with factory-fitted modules, including a PLC master module and a Profibus-DP slave module. Communication is facilitated by Ethernet, Indramat BT bus interface, and serial interfaces. The product incorporates three digital, ground current-sinking inputs and two short circuit-proof digital outputs. The device operates on a 24V DC nominal power supply within an input range of 19.2 to 30 Volts DC and a rated current consumption of 1.2 Amps. Dimensions of the device are approximately 83.7 x 192 x 150 mm with a weight of 1.3 kg.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

PPC-R22.1N-T-N1-P2-NN-FW

System Type

Bosch VisualMotion system

Firmware

GPP 10

Form Factor

RECO 02

Applications

Robotics, general motion control and master electronic line shafting

Expansion Slots

Three (two factory-fitted)

Modules Included

PLC master module, Profibus-DP slave module

Communication Interfaces

Ethernet, Serial programming, General-purpose serial, Indramat BT bus

Memory Module

Not included

Digital Inputs Number

Three

Digital Inputs Type

Current-sinking to ground

Low Input Voltage

0 to 5V DC

High Input Voltage

15 to 30V DC

Minimum Input Current

10 milliamps

Digital Outputs

Two

Maximum Delay of Output

400 microseconds

Maximum Output Current

0.5 Amps

Power Requirement

24 Volts DC nominal

Input Range

19.2 to 30 Volts DC

Rated Current Consumption

1.2 Amps

Weight

1.3 kilograms

Dimensions

83.7 x 192 x 150 millimeters
