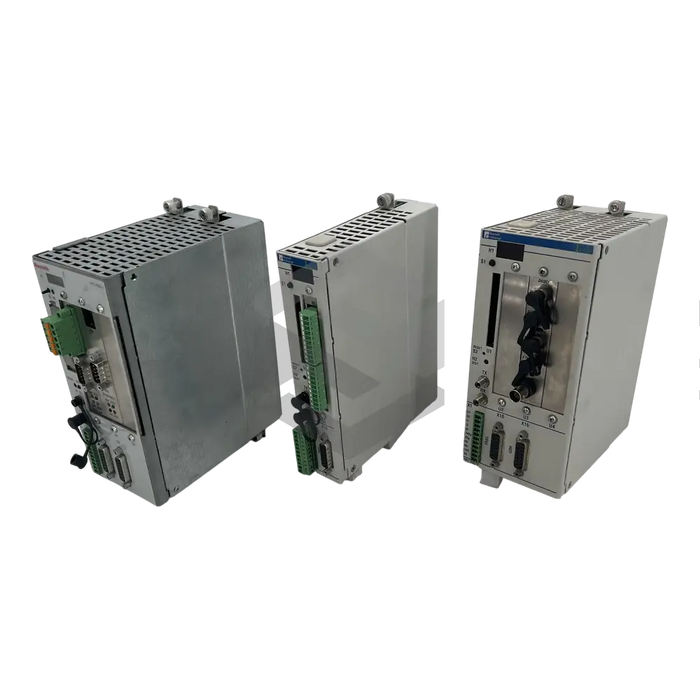

series image of PPC-R22.1N-T-N1-T3-NN-FW

PPC-R22.1N-T-N1-T3-NN-FW

by Bosch Rexroth Indramat
Request a quote
Bosch Rexroth Indramat's PPC-R22.1N-T-N1-T3-NN-FW is a CNC module that comes with a PowerPC microprocessor, an 8MB SDRAM main memory, and a 256-byte serial EEPROM. The module boasts multiple interfaces such as a PC/104, a RECO/PLC, and a 4 MBaud SERCON 410B SERCOS interface for optimal communication with various digital drives. Also included is a ready to use relay for system monitoring and the device conforms to Class A noise emission standards (EN 55022). The device can be installed onto the vertically assembled module carrier inside a switch cabinet that can hold up to four module racks. The power lines come with a delayed fuse rated at 4A maximum. The CNC module operates at an atmospheric pressure rating of 86kPa-106kPa and features a battery for buffering real time clock. The device should not be operated under extremely high temperatures and is compatible with rotary transfer machines.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: PPC-R22.1N-T-N1-T3-NN-FW
  • Processor Type: PowerPC Microprocessor
  • Main Memory: 8MB SDRAM
  • Serial EEPROM: 256-byte
  • Interface Types: PC/104 Interface, RECO/PLC Interface, SERCON 410B SERCOS Interface
  • Transmission Rate: 4 MBaud
  • Noise Emittance: Class A (EN 55022)
  • Firmware Module Compatibility: PC Card
  • Mounting Requirement: Mounted Rack
  • Module Rack Capacity: Up to 4
  • Fuse Max Current Rating: 4A Delay Action
  • Atmospheric Pressure During Operation: 86kPa to 106kPa
  • Battery Function: Buffers Real-Time Clock
  • Control Unit I/O Bus Supply Capacity: 52W
  • X1 Connector Function: No Function
  • Programming Tool: Manufacturers DOLFI V02VRS
  • Extreme Temperature Operation: Not Applicable
  • Compatibility: Rotary Transfer Machines
  • Atmospheric Pressure During Storage and Transport: 70 kPA to 106kPA
