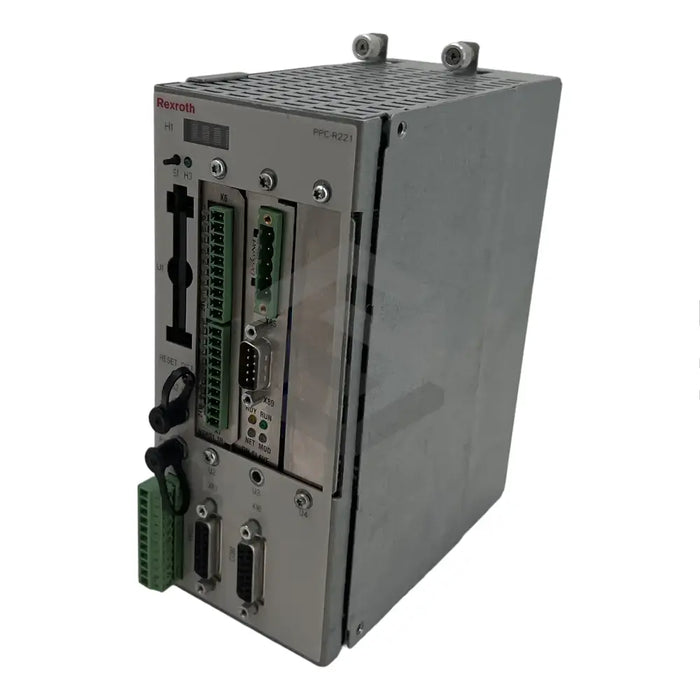

C image of PPC-R22.1N-T-N1-V1-NN-FW | Main (Front Left)

PPC-R22.1N-T-N1-V1-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth PPC-R22.1N-T-N1-V1-NN-FW is an advanced logic and motion control unit, integral to the VisualMotion machine system. Designed with customizable utility in mind, three slots are offered for added modules, with two prefilled by a DeviceNet master module and a programmable limit switch master module. An additional slot is available for user-specific customization. Equipped with a SERCOS interface that supports varying megabaud levels, and two configurable baud rate serial interfaces, optimal connectivity is ensured. Additionally, an in-built Ethernet port is provided. This control unit requires an external 24 Volts DC power source and should operate in a temperature between 0 and 45 degrees Celsius for robust performance. Also featured is an IP 20-rated enclosure and it is mounted using RMB02.2 racks on DIN rails. Users should note that due to the unit's complexity, installation and upkeep should be executed by trained personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Advanced Logic and Motion Control

Product Part

VisualMotion Machine Control Systems

Firmware

Needs to be ordered separately

Slots

Three (Three available slots for installation of modules)

Installed Modules

DeviceNet Master Module and a PLS Master Module (programmable limit switch)

Memory Module

Not available

Form Factor

RECO 2

SERCOS Interface

Supports 2, 4, 8 or 16 megabaud

Serial Interface Ports

Two

Serial Interface Baud Rate

9600 to 115200 (Selectable through software)

Ethernet Port

Available

Mounting

Using RMB02.2 racks on RS 35 x 27 x 15 DIN rails

Enclosure

IP 20 rated (As per DIN VDE 0470 and EN 60529)

Ambient Temperature

0 to 45 degrees Celsius

Pressure

860 to 1080 hPA (Corresponds to 1500 meters altitude)

Relative Humidity

5 to 78%

Power Supply

External 24 Volts DC (capable of providing 1.2 Amps current)

Installation and Maintenance

By trained personnel only.
