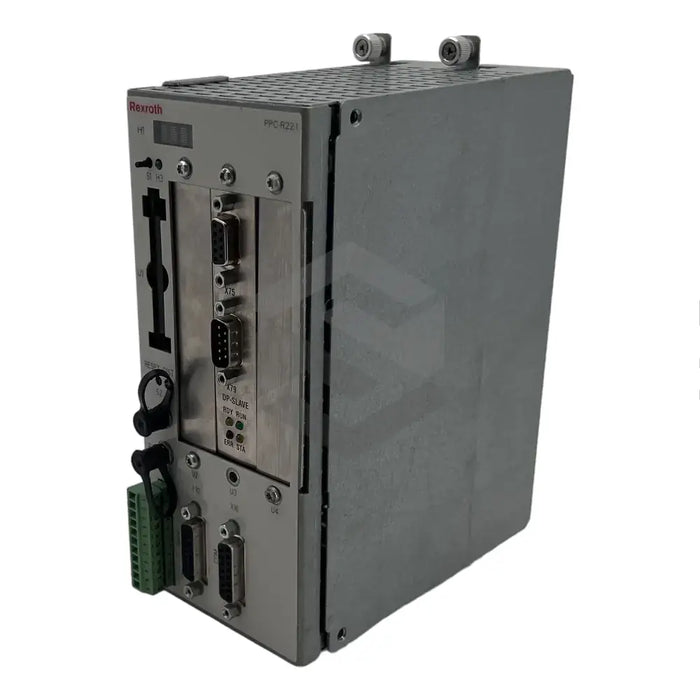

product Main (Front Left) image of PPC-R22.1N-T-NN-P1-NN-FW

PPC-R22.1N-T-NN-P1-NN-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat PPC-R22.1N-T-NN-P1-NN-FW CNC module includes a fiber optic receiver and transmitter, a H2 distortion display for its SERCOS interface, and a socket for its firmware module. Backed by three optional sockets, it can each accommodate an axis processor module supporting eight additional drives. Installation stipulates vertically fitting the module inside a switch cabinet, covering the RECO module. It operates between 0°C and 45°C, at an atmospheric pressure of 86kPa to 106kPa, and requires a 24V maximum 4A delay action fuse. With a relative humidity range of 10-95%, it has 3 digital inputs, 2 digital outputs and an 11-pin Phoenix socket. It cannot operate under water and needs to be managed by trained personnel. Its enhanced EMC compliance ensures safe operations while its built-in relay function aids system monitoring.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: PPC-R22.1N-T-NN-P1-NN-FW
  • Interface: Fiber optic receiver and transmitter, H2 distortion display
  • Firmware Socket: One Dedicated Socket
  • Additional Sockets: Three for axis processor module
  • Supported Axes: Eight additional drives
  • Rack Function: Only for assembling
  • Orientation: Vertical
  • Fuse requirement: Maximum of 4A with delay action for 24V
  • Operating Ambient Temperature: 0°C to 45°C
  • Atmospheric Pressure: 86kPa to 106kPa
  • Relative Humidity: 10% to 95%, No condensation
  • Digital Inputs: Three
  • Digital Outputs: Two
  • Connector: 11-pin Phoenix socket
  • Relay: Ready-for-operation relay, Minimum 500,000 switch cycles
  • Data Transfer Type: Application Dependent
  • CPU Firmware Functions: Tool management, Block preparation, NC program processing and Communication with the PLC
  • Communication: Manufacturer’s local bus
  • Environment Restriction: No operation under water
  • User Restriction: Only for trained and qualified personnel
  • Installation Requirement: Must meet the EMC requirements for drive and control systems
  • High Voltage Warning: Yes during operation
