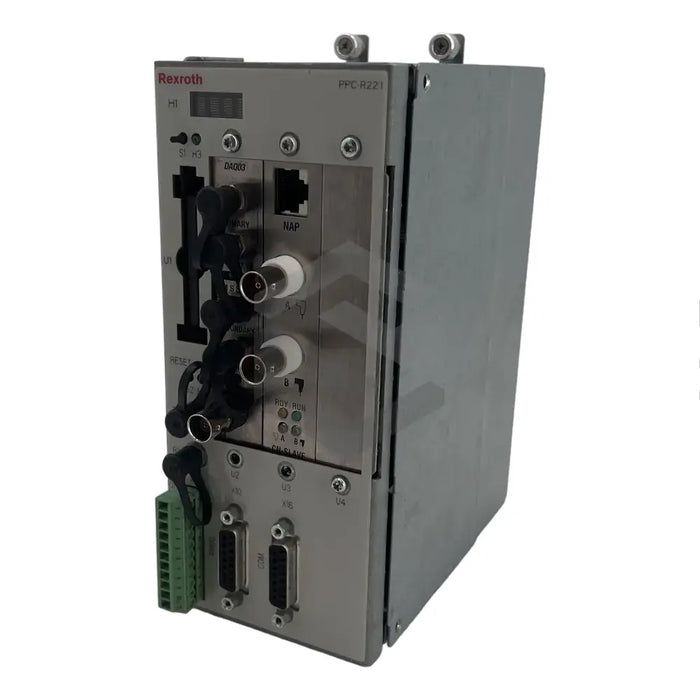

C image of PPC-R22.1N-T-Q1-L2-NN-FW | Main (Front Left)

PPC-R22.1N-T-Q1-L2-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Bosch Rexroth Indramat presents its PPC-R22.1N-T-Q1-L2-NN-FW device, a part of its PPC product group. This standalone multi-axis control unit, featuring three expansion slots, can control up to 40 digital drives produced by Bosch Rexroth. This unit's firmware, to be ordered separately, accommodates various applications. It supports DeviceNet and Profibus-DP interfaces of 32 words each, and ARCNET cross-communication. The product is rack-mountable, using RMB0.2.2 racks on 35x27x15 TS DIN rails. It also includes the VMT software for parameterization, system diagnostics, and motion control programming. It operates best with five specific types of fieldbus interfaces and must not be modified or used underwater. The unit contains a slot for a 32MB compact flash card. Its Class F insulation meets DIN VDE 40 040 specifications, while its serial ports are adjustable using the VisualMotion Toolkit. Other features include a H2 SERCOS interface distortion LED and an S1 push button for additional control settings on the H1 display.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Group

PPC

Product Model

PPC-R22.1N-T-Q1-L2-NN-FW

Expansion Slots

3

Control Capability

Up to 40 digital drives

Application

General automation applications

Characteristics

Not to be modified structurally

Compatibility

DeviceNet and Profibus-DP interfaces (32 words length each)

Communication Type

ARCNET Support for cross-communication

Rack Type

Mounted on RMB0.2.2 racks

DIN Rail Model

35x27x15 TS DIN rails

Software

VMT software program for parameterization and diagnostics

Fieldbus Interfaces

5 different types

Installation Environment

Industrial machinery

Insulation Class

Class F according to DIN VDE 40 040 specifications

Memory Slot

32MB Compact Flash Card Slot

Indicators

H2 SERCOS interface distortion LED

Serial Port Settings

1 bit, 8 bits and no parity

Management Tool

VisualMotion Toolkit

Front Panel Button

S1 for additional control settings
