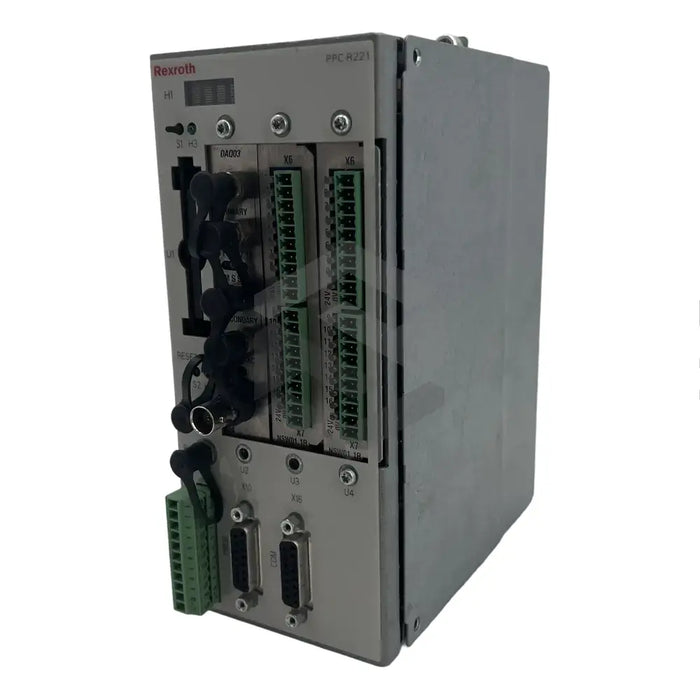

C image of PPC-R22.1N-T-Q1-N1-N2-FW | Main (Front Left)

PPC-R22.1N-T-Q1-N1-N2-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat PPC-R22.1N-T-Q1-N1-N2-FW is a multi-axis motion and logic control device. It mounts in the leftmost slot of the RMB rack and features a standalone R housing design. This device is versatile, compatible with numerous interfaces such as ControlNet, Profibus, and DeviceNet. It features multiple LEDs for diagnosing the communication and bus status. With the ability to support two PLS option cards, it can manage up to 32 outputs simultaneously. Connection to a link ring can be established through a DAQ03 card. The device delivers an IP 20 level of protection and uses a SERCOS interface for communication with digital servo drives. Programming is facilitated via integrated VisualMotion Toolkit and PLC software. This motion control solution is ideal for utilization in textile machines, assembly, and handling systems. Optimal operating temperature ranges from 0°C to 45°C, adhering to DIN 40 040 Class KV specifications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

PPC-R22.1N-T-Q1-N1-N2-FW

Product Type

Motion and Logic Control

Position on RMB Rack

Leftmost Slot

Housing Design

R

Design Code

2

Compatible Interfaces

ControlNet, Interbus, Profibus, DeviceNet

LED Indicators

Four for Diagnostics

Programmable Limit Switch Interface

PLS Option Card

Support for Option Cards

Two with 16 Outputs Each

Link Ring Connection

Through DAQ03 Card

Degree of Protection

IP 20 (DIN VDE 0470 / EN 60529)

Download Mode Setting

Viewable via S1 Button

Communication Interface

SERCOS Interface

Integrated Kit

VisualMotion Toolkit

Use Conditions

Not Faulty or Damaged

Operating Temperature Range

0°C to 45°C (DIN 40 040 Class KV)

Applications

Textile Machines, Assembly, Handling Systems.
