PPC-R22.1N-T-Q1-NN-NN-FW

Request a quote

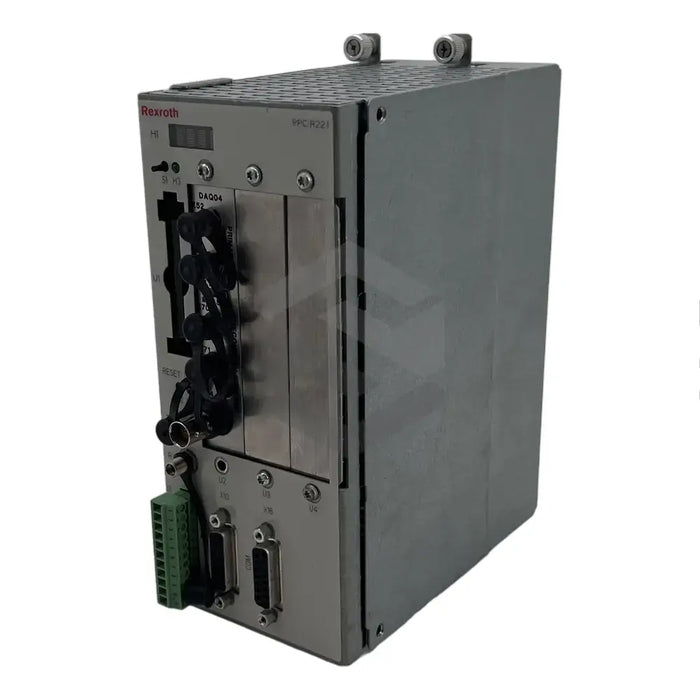

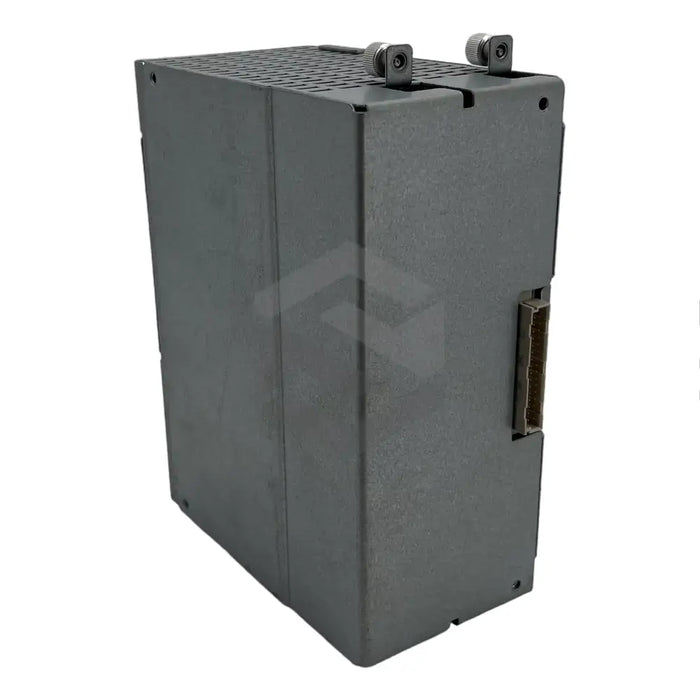

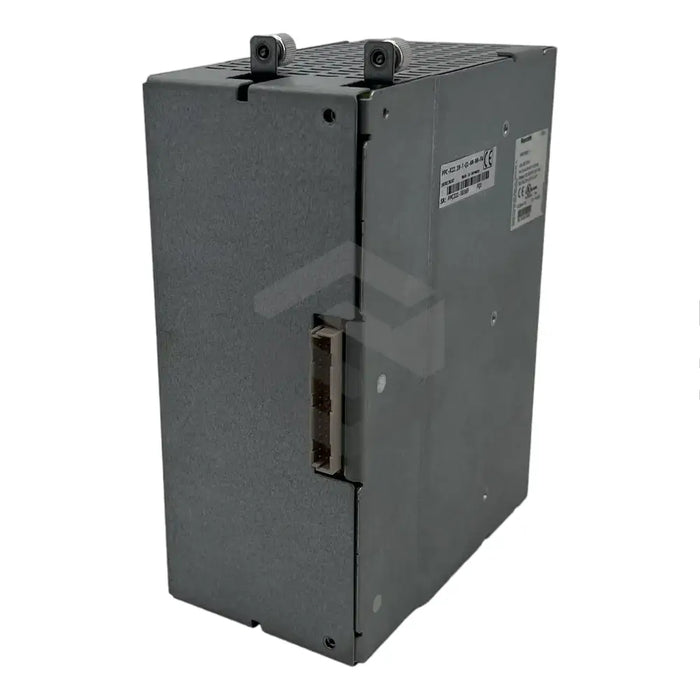

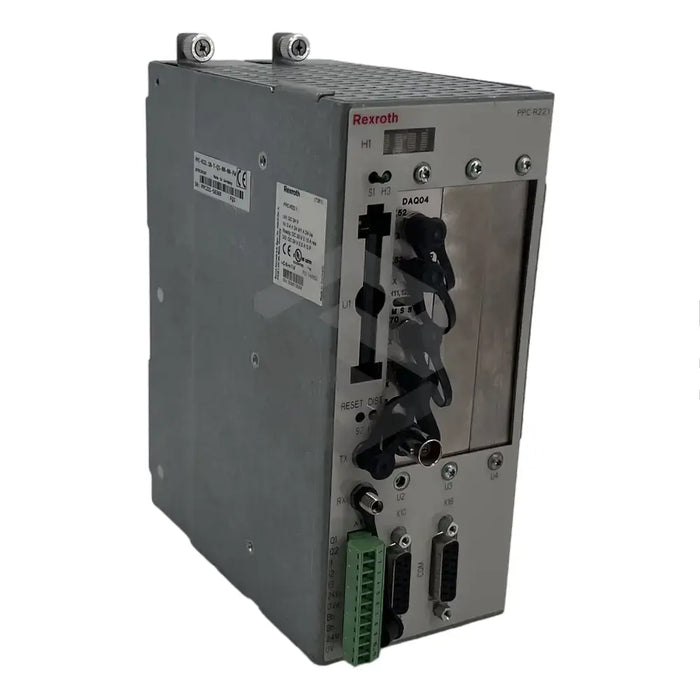

The Bosch Rexroth PPC-R22.1N-T-Q1-NN-NN-FW is a multi-access motion and logic control system, specifically designed for VisualMotion programming. The system integrates seamlessly with IndraDrive Diax 04 drives and EcoDrive 03 digital servo drives. The system is constructed to be installed vertically inside a Rexroth Indramat Reco 02 rack, along with I/O modules. The firmware, although ordered separately, supports version PRC-R22.1 hardware and version GPP 10 firmware. The package includes Ethernet and two serial interfaces, and is compatible with ARCNET. Power voltage ranges from 19.2 to 30 Volts DC, with a peak current consumption of 1.2 Amps. The system does not come with battery backup, but has an internal clock with a three-day capacitor backup. Operating temperature ranges from 0 to 45 degrees Celsius, and the unit is enclosed in an IP20 rated cover. The system, with a weight of 1.3 kilograms, is ideal for applications in motion control, robotics, and electronic line shafting.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: PPC-R22.1N-T-Q1-NN-NN-FW
  • Type: VisualMotion programmable multi-axis motion and logic control system
  • Hardware Version: PRC-R22.1
  • Firmware Version: GPP 10
  • Application: Motion control, robotics, electronic line shafting
  • Compatible Drives: IndraDrive Diax 04, EcoDrive 03
  • Setup Requirement: Vertical orientation, appropriate clearance for airflow
  • Mounting Slot: 00
  • Memory Expansion Module: Not included
  • Network Communication: Integrated Ethernet, ARCNET Support
  • Serial Interfaces: RS-232, RS-485, RS-232 / RS-422 / RS-485
  • Voltage Range: 19.2 to 30 Volts DC
  • Peak Current Consumption: 1.2 Amps
  • Cable Cross Section for Power Supply: Max 1.5 mm2
  • Internal Clock Backup: Capacitor up to three days
  • Protection Rating: IP20
  • Operating Temperature Range: 0 to 45 degrees Celsius
  • Non-operating Temperature Range: -25 to 70 degrees Celsius
  • Weight: 1.3 kilograms
