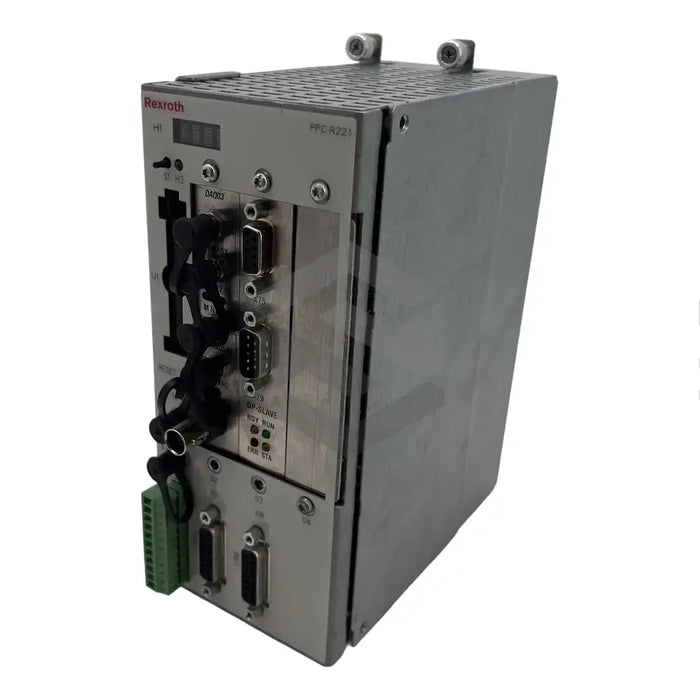

C image of PPC-R22.1N-T-Q1-P1-NN-FW | Main (Front Left)

PPC-R22.1N-T-Q1-P1-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The PPC-R22.1N-T-Q1-P1-NN-FW by Bosch Rexroth Indramat is an assuredly safe and reliable control unit designed to function with a variety of digital servo drives from the manufacturer. Made to withstand natural temperature changes, yet not extreme fluctuations, the unit utilizes uniquely designed cables for connectivity. The control unit, boasting VisualMotion system with OPC and DDE servers, can be employed for single or multiple axis drives and control tasks. Essential to note, any improper handling could incur injuries. The device has a nominal voltage rating of 24VDC and a maximum current consumption of 1.2A. Alongside this, the control unit includes a real-time clock to log power shutdowns, uses 15-pin D-sub female connectors for both PROG and COM ports, and adheres to EN 55022 noise emission standards. Last but not least, the unit weighs 1.3kg and should console a 10mm2 ground wire.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Number

PPC-R22.1N-T-Q1-P1-NN-FW

Operating Reliability and Safety

Yes

Connection Type

Manufacturer Provided Cables

Temperature Fluctuation Resistant

No

Compatibility

Compatible with various digital servo drives from Bosch Rexroth

VisualMotion Control System

Features OPC and DDE servers for communication

Multi-Use

Can be used for single and multiple axis drives and control tasks

Ground Wire Connection

Required

Humidity Range

5% to 78% (no condensation)

Atmospheric Pressure Range

860hPa and 1,080hPa

Nominal Voltage

24VDC and 4Vpp ripple within allowed range

Real-Time Clock

Included

Digital Input Time Delay

50µs

Digital Output Delay

Maximum of 500µs

Current Consumption

1.2A maximum

Noise Emission

Conforms to EN 55022 standards

PROG and COM Ports

15-pin D-sub female connectors for RS-232 and RS-485 serial interfaces

Grounding Requirement

10mm2 ground wire

Weight

1.3 kg

Atmospheric Pressure During Transport

660 to 1,080hPa

Humidity During Transport

5 to 95% (no condensation)

Digital Input Voltage Range

15V to 30V

Digital Output Current Rating

0.5A.
