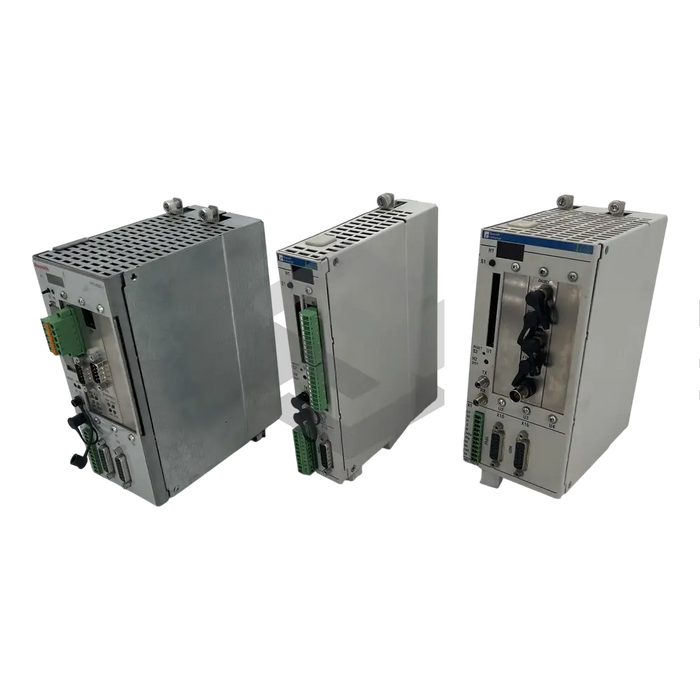

series image of PPC-R22.1N-T-Q1-P1-P2-FW

PPC-R22.1N-T-Q1-P1-P2-FW

by Bosch Rexroth Indramat
Request a quote
The PPC-R22.1N-T-Q1-P1-P2-FW, a product by Bosch Rexroth Indramat, is a versatile multi-axis motion and logic control system with updated Reco 02 form factor. It is designed to manage up to 40 Rexroth digital drives such as EcoDrive 03 and Diax 04 drives. Using a PC, it can be programmed by the VisualMotion Toolkit software. The compatible firmware, GPP10, which must be ordered separately, supports both coordinated and non-coordinated motion control. The control system is equipped with Ethernet support, ARCNET, and a 4-digit alphanumeric display. It also includes a Serco interface supporting 2, 4, 8, and 16 Mbaud, and two serial interface ports with 9600-115200 baud rates. Two Fieldbus interface cards, PROFIBUS-DP Master and PROFIBUS-DP slave modules, are part of the system. The unit measures 164mm high, 165mm deep, and 84mm wide, and weighs 2.87 pounds. It requires a specific temperature and humidity range for optimal performance and has a maximum operating altitude of 1500 meters.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Multi-axis motion and logic control system
  • Form Factor: Reco 02
  • Compatible Drives: Up to 40 Rexroth digital drives
  • Programming: From a PC running the VisualMotion Toolkit software
  • Required Firmware: GPP10
  • Ethernet Support: Onboard
  • ARCNET Support: Yes
  • Display: 4-digit alphanumeric
  • Serco Interface: 2 / 4/ 8 / 16 Mbaud
  • Serial Interface Ports: 2, Supporting baud rates ranging from 9600 to 115200 baud
  • Memory Expansion Module: Not available
  • Fieldbus Interface Cards: PROFIBUS-DP Master and Slave modules
  • Rack Installation: Vertically in slot 00 of the Reco 02 rack
  • Physical Dimensions: 164 millimeters (Height) x 165 millimeters (Depth) x 84 millimeters (Width)
  • Weight: 2.87 pounds
  • Operating Temperature: 32- to 113-degrees Fahrenheit
  • Storage Temperature: -13 to 158 degrees Fahrenheit
  • Operating Humidity: 5 to 78%
  • Non-operating Humidity: 5 to 95%
  • Operating Altitude: Up to 1500 meters
  • Atmospheric Range: 860 to 1080 hPa
  • Storage Altitude: Up to 3000 meters.
