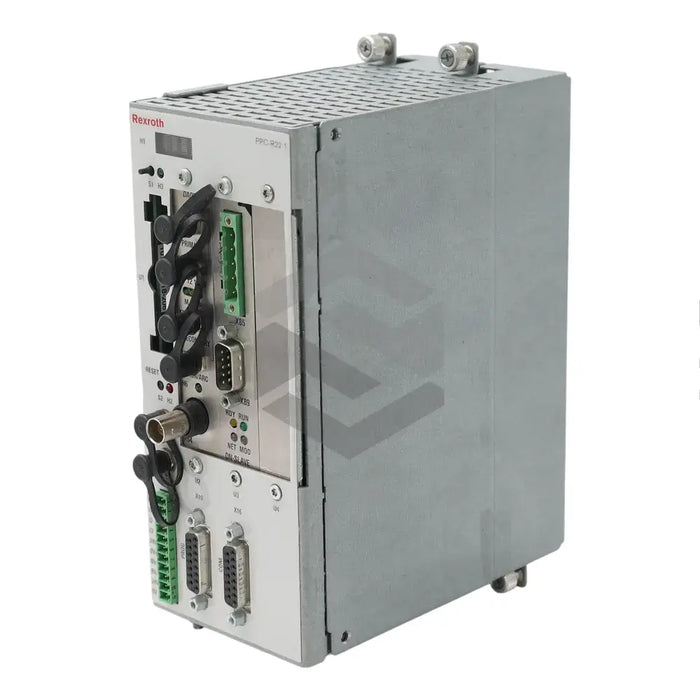

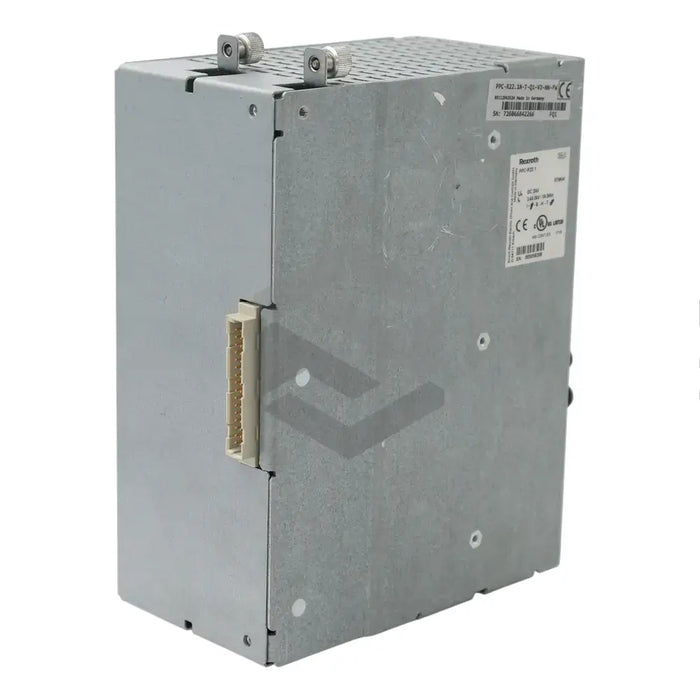

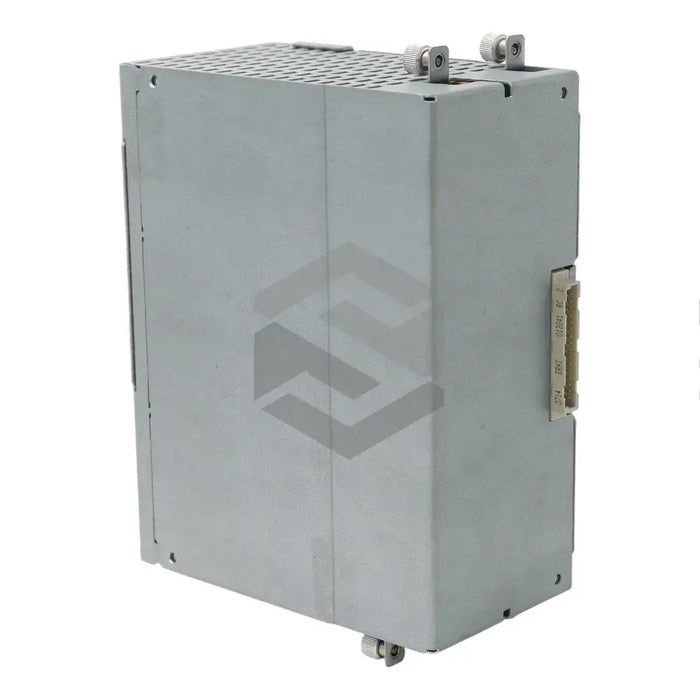

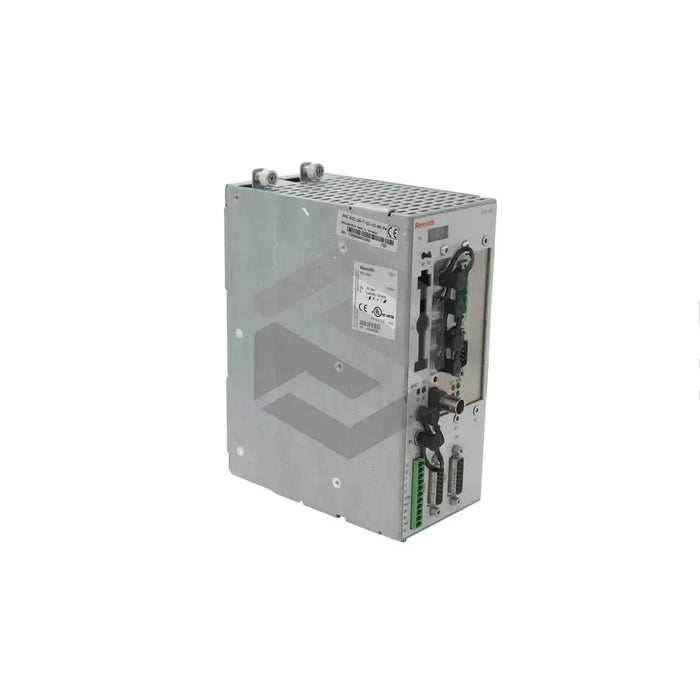

The PPC-R22.1N-T-Q1-V2-NN-FW, a product of Bosch Rexroth Indramat, is a stand-alone motion and logic control system. Targeting industrial applications such as robotics and multi-axis motion control, this unit falls under Bosch Rexroth's VisualMotion 10 range. With the VisualMotion GPP 10 firmware installed, the device can perform coordinated and non-coordinated motion control, along with integrated logic control functions. The system works seamlessly with Reco 02 racks, EcoDrive 03 digital servo drives, and IndraDrive Diax 04 drives. Real-time communication is facilitated via a SERCOS fiber optic interface and there is a built-in 10 / 100 Mbps Ethernet interface along with two serial ports. The unit weighs 2.87 pounds and sits within an IP20 rated enclosure, with dimensions of 184 x 8 x 165 millimeters. The unit operates at a maximum of 1.2 Amps with a 24 Volt DC input.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: VisualMotion 10
  • Function: Motion and Logic Control System
  • Compatibility: Reco 02 racks, EcoDrive 03 digital servo drives, IndraDrive Diax 04 drives
  • Communication Interface: SERCOS interface, 10 / 100 Mbps Ethernet interface with RJ-45 jack, two serial ports
  • Ethernet Port Usage: Standard TCP/IP communication, Ethernet/IP fieldbus slave interface
  • Field Bus Slave Interface: DeviceNet slave module
  • Support: ARCNET
  • Mechanical Specifications: 2.87-pound weight, enclosure dimensions of 184 x 8 x 165 millimeters, IP20 enclosure rating
  • Input Power Requirement: Maximum 1.2 Amps at 24 Volts DC
