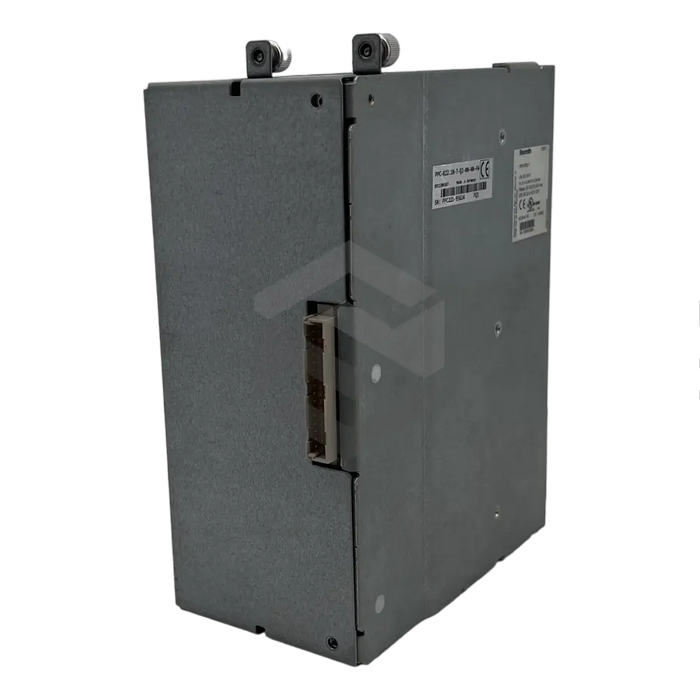

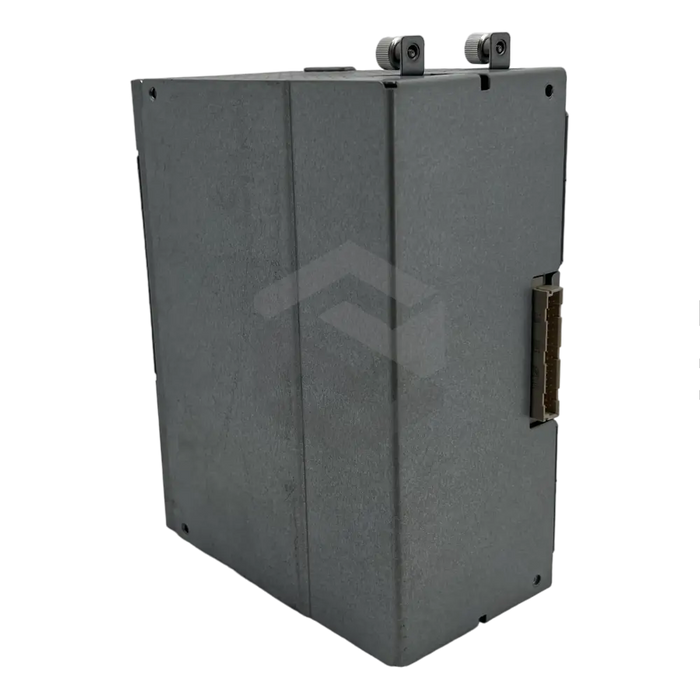

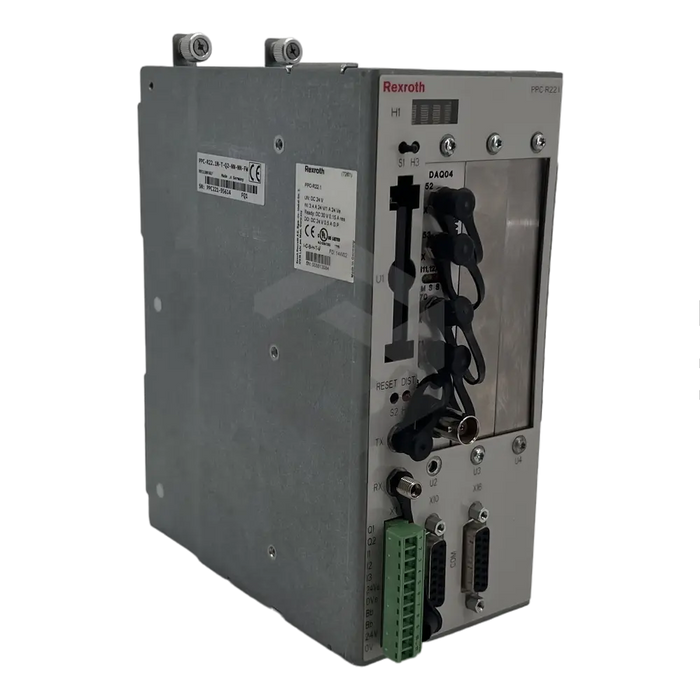

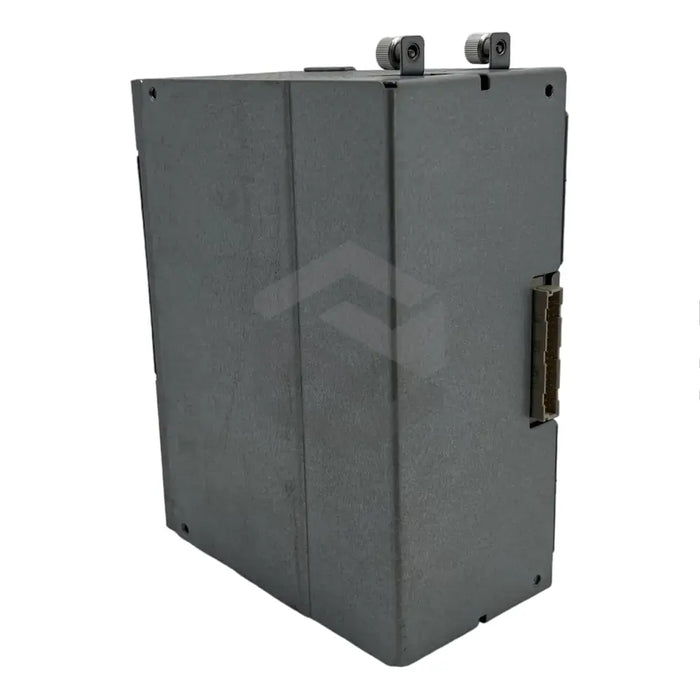

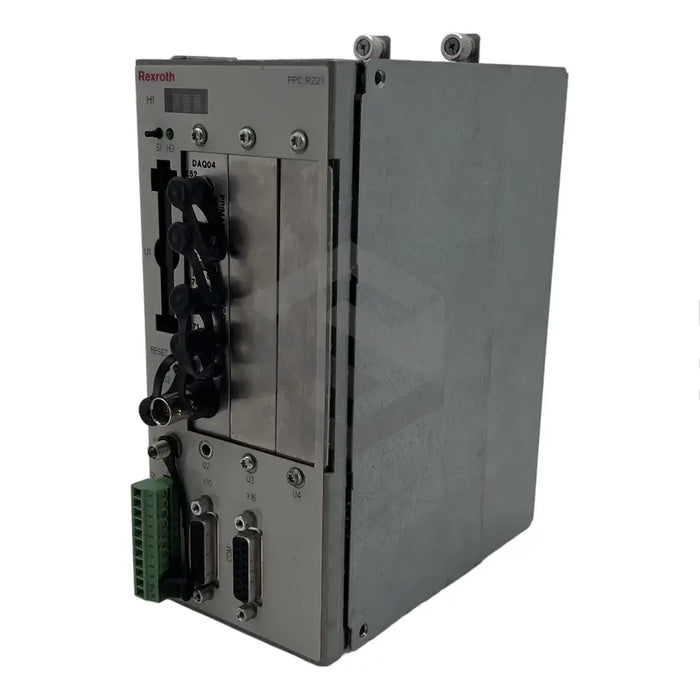

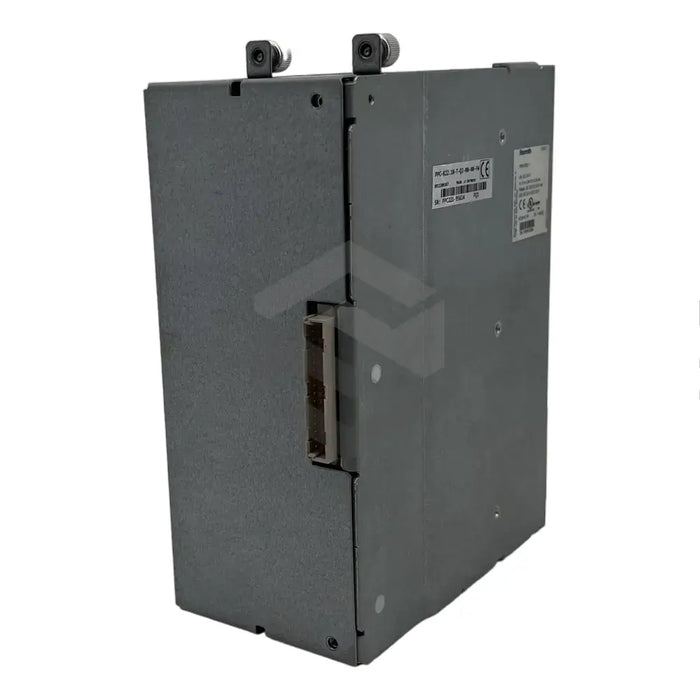

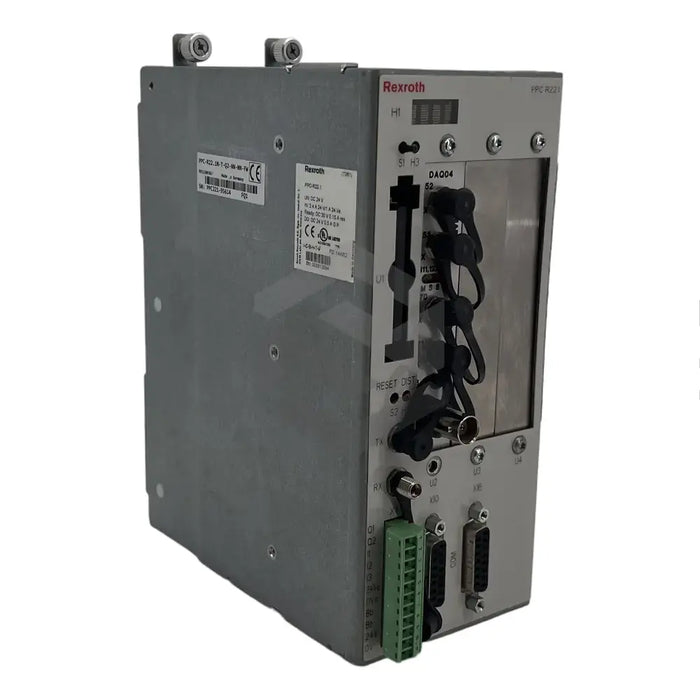

product Main (Front Left) image of PPC-R22.1N-T-Q2-NN-NN-FW

PPC-R22.1N-T-Q2-NN-NN-FW

by Bosch Rexroth Indramat
$6,708.88 - $6,708.88
$6,708.88
$6,708.88 - $6,708.88
$6,708.88
In Stock, Ships Today
The PPC-R22.1N-T-Q2-NN-NN-FW, part of Bosch Rexroth Indramat's MTC200 range, is a CNC module featuring an in-built axis processor and CNC processor system. Meeting the EN 60529 IP 20 protection class, it requires installation within a switch cabinet and alongside an RMB02.2 sub-rack, with vertical positioning. The module includes a diagnostic-accessible COM port and is contained within a double-wide housing that measures 83.7 x 182 x 150mm (W x H x D). A line code of 2 allows for extension across two module slots of the rack, supporting a 24VDC power supply with a maximum power consumption of 1.2A at 24VDC. Requires firmware for operation, loaded on a 4MB PSM firmware module. Non-user accessible interfaces include COM, PROG and BT bus connection. Approved equipment should only be used, with tampering or inappropriate use posing risk of damage or injury.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: PPC-R22.1N-T-Q2-NN-NN-FW
  • Product Group: MTC200
  • Protection Class: IP 20 according to EN 60529
  • Required Installation: Inside a switch cabinet with an RMB02.2 sub-rack
  • Features: Integrated axis processor and a basic unit with a CNC processor system
  • Housing: Double-wide
  • Installation Position: Vertical
  • Dimensions: 83.7 x 182 x 150mm (W x H x D)
  • Line Code: 2
  • Module Slot: Two
  • Additional components for Operation: Firmware and Hardware
  • Power Supply: 24VDC
  • Maximum Power Consumption: 1.2A at 24VDC
  • User Accessibility: COM and PROG serial interfaces and BT bus connection are not accessible
  • Safety Precaution: Not to be used when damaged or faulty.
