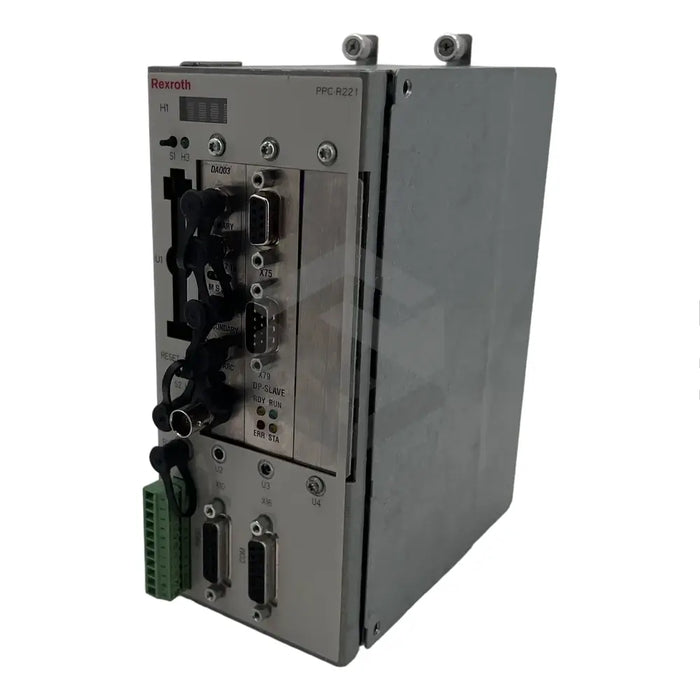

C image of PPC-R22.1N-T-Q2-P1-NN-FW | Main (Front Left)

PPC-R22.1N-T-Q2-P1-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The PPC-R22.1N-T-Q2-P1-NN-FW CNC Module, produced by Bosch Rexroth Indramat, incorporates a design code of 2 and is designed for installation exclusively in commercial machinery. This module utilizes a power supply connection cable with a cross-section of 0.75mm2 to 1.5mm2 depending on the current necessities. When in operation, the module may generate high discharge current and voltage. Any operation and repair work should only be managed by trained personnel. The device's housing may become hot during use and should not be touched. There's an H1 LED display at the module's top and the unit should be attached to a DIN TS top hat rail measuring 35 x 27 x 15mm. Weighing 1.3kg, the gadget can operate without performance reduction between 0°C and +45°C. It is equipped with a relay for system monitoring with a longevity of at least 500,000 switching cycles, if protected against excess current.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

RECO CNC module

Design Code

2

Power Supply Connection

Cable with a 0.75mm2 to 1.5mm2 cross-section

Installation Requirements

Installation only in commercial machinery, operation and repair by qualified and trained staff

Safety Measures

Firmly and permanent connection of safety conductor to supply mains, housing must not be touched when operating to avoid burns, emergency stop switch must be easily accessible

LED Display

H1 LED display featured on the top of the unit

Module Rack Control

Cannot control I/O modules

Installation Conditions for Module Rack

Mounted on a DIN TS top hat rail of size 35 x 27 x 15mm and secured with a locking screw

Weight

1.3kg

Operating Temperature Range

0°C to +45°C without reduced performance

Power Supply

24VDC with a tolerance limit of -15% or +20% according to EN 61131-2 specifications

System Monitoring

One ready-for-operation relay

Relay Lifetime

Minimum of 500,000 switch cycles when protected against excess current
