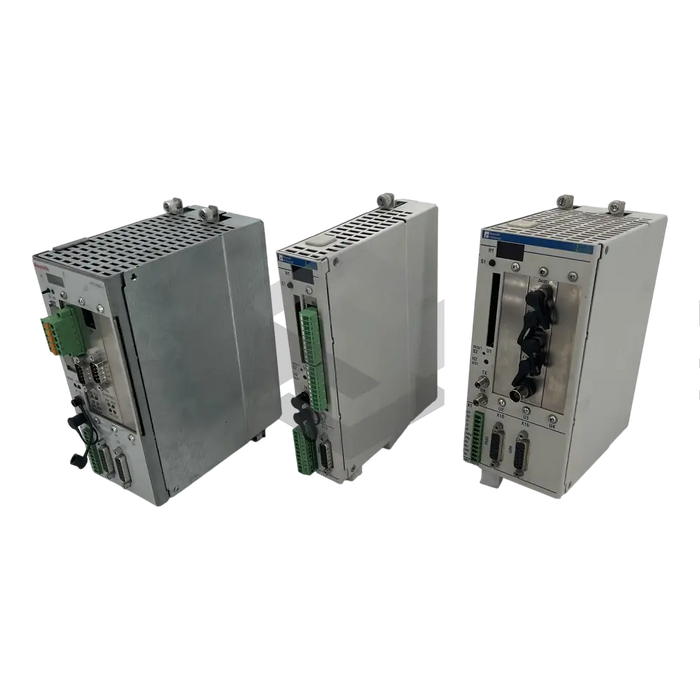

series image of PPC-R22.1N-T-T3-P1-NN-FW

PPC-R22.1N-T-T3-P1-NN-FW

by Bosch Rexroth Indramat
Request a quote
The PPC-R22.1N-T-T3-P1-NN-FW CNC module from Bosch Rexroth Indramat comes with a PowerPC microprocessor, 8MB SDRAM main memory and a 256-byte serial EEPROM. It features several interfaces including a PC/104 interface, a RECO/PLC interface and a SERCON 410B SERCOS interface, which facilitates communication with multiple digital drives at a 4 MBaud rate. This device requires a mounted module rack for installation inside a switch cabinet, which can accommodate up to four module racks simultaneously. It relies on a battery for real-time clock buffering and utilizes a power supply fuse with a maximum 4A current rating. The product also features an operational atmospheric pressure rating of 86kPa to 106kPa, abides by EN 55022 specifications for Class A noise emittance, and is equipped with a socket for PC-compatible firmware modules. The CNC module's battery life depends on the control's usage, supports rotary transfer machines, and can withstand an atmospheric pressure of 70 kPA to 106kPA during storage and transport.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: PPC-R22.1N-T-T3-P1-NN-FW CNC module
  • Processor: PowerPC microprocessor
  • Main Memory: 8MB SDRAM
  • EEPROM: 256-byte serial
  • Interfaces: PC/104, RECO/PLC, SERCON 410B SERCOS
  • SERCOS Transmission Rate: 4 MBaud
  • PC/104 components: LK SCEB01 PC104 history card, connection board with ribbon cable and PC slot plate
  • Noise Emittance: Class A according to EN 55022
  • Firmware Socket: Compatible with PC card
  • Mounting: Vertical assembly inside switch cabinet
  • Cabinet Capacity: Up to four module racks
  • Power Supply Fuse: Maximum 4A current rating with delay action
  • Operating Atmospheric Pressure: 86kPa to 106kPa
  • Battery Function: Buffers real-time clock
  • I/O Bus Supply: 52W by the control unit
  • Digital Interface Functionality: X1 connector inlets and outlets have no function
  • Programming Tool: DOLFI V02VRS
  • Machine Compatibility: Rotary transfer machines
  • Storage and Transport Atmospheric Pressure: 70kPA to 106kPA
