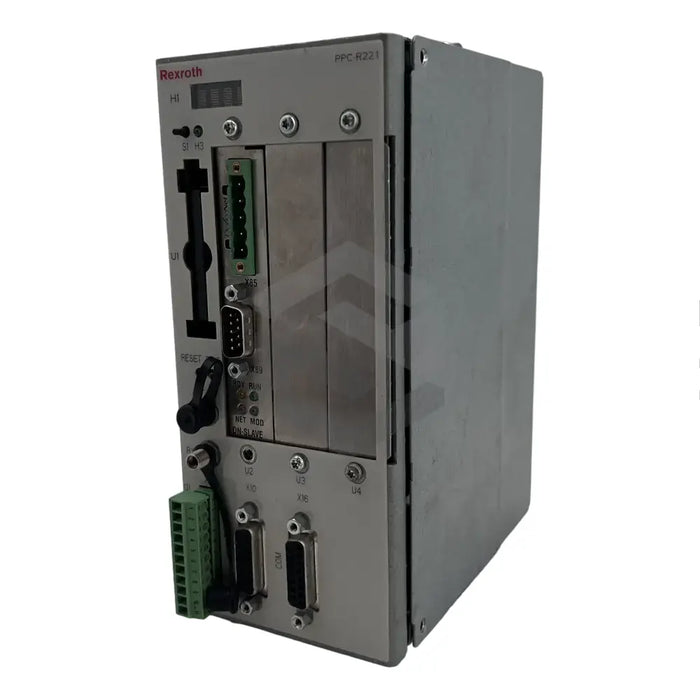

C image of PPC-R22.1N-T-V1-NN-NN-FW | Main (Front Left)

PPC-R22.1N-T-V1-NN-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat PPC-R22.1N-T-V1-NN-NN-FW is a CNC module designed for precise and reliable operation in an industrial setting. The module should be connected cautiously, with power supply disconnected initially to prevent component damage. For stability, module rack locking screws must be tightened before commissioning. In the MTC200 control system, it must link with socket 0 of the MTS-R01.2 PLC assembly through the manufacturer's local bus. The product lacks a memory expansion module and power supply connection is via the X1 plug's 10th and 11th contacts. The unit's control features an 8MB SD RAM main memory, a PowerPC microprocessor, and a 256-byte E2PROM. It can support up to eight drives through a SERCOS interface and includes three optional sockets. The module must be installed according to instructions, grounded correctly and handled with care to ensure safe and dependable performance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

PPC-R22.1N-T-V1-NN-NN-FW

Use Requirement

Device must be fully disconnected from power supply prior to connecting

Assembly Requirement

Tighten all locking screws prior to commissioning

Integration

Device connects to socket 0 of the MTS-R01.2 PLC assembly through local bus

Power Supply Connection

Through the 10th and 11th contacts of its X1 plug

Memory

Not equipped with memory expansion module

Buttons

S1 button present on top for switching display and other functions

Firmware

Must be ordered separately

Control Unit Features

8MB SD RAM main memory, a PowerPC microprocessor, and a serial 256-byte E2PROM

Drives

Can connect up to eight drives through a SERCOS interface

Interfaces

Contains three optional sockets, passive SERCOS interface axis processor module with PC/104 format

Operation Environment

Not for underwater use

Safety Guidelines

Must not be operated in a faulty manner, device must connect with ground wire when in use

Leakage Current

Tends to be more than 3.5mA when product is in use.
