series image of PPC-R22.1N-T-V1-V2-NN-FW

PPC-R22.1N-T-V1-V2-NN-FW

by Bosch Rexroth Indramat
Request a quote

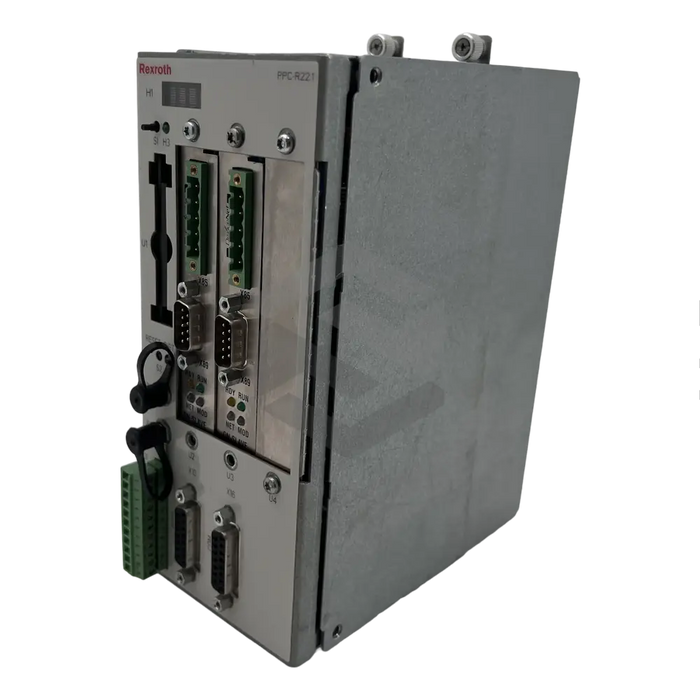

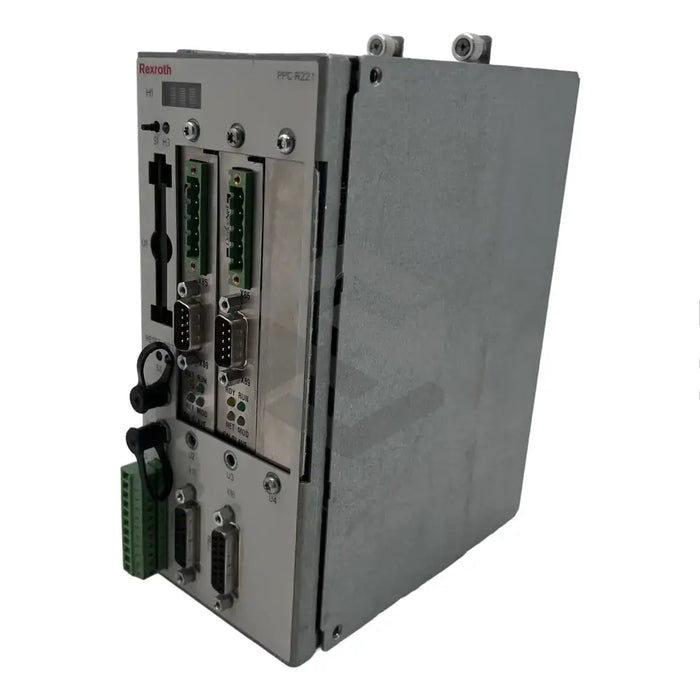

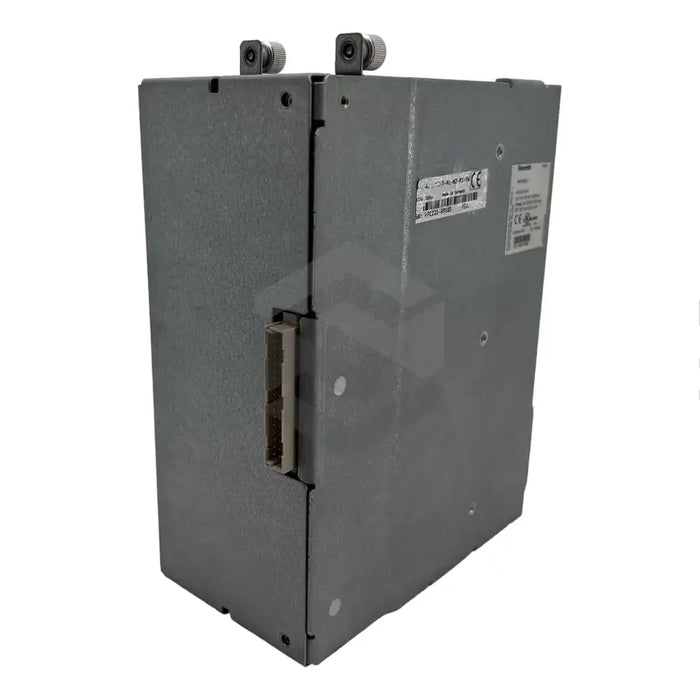

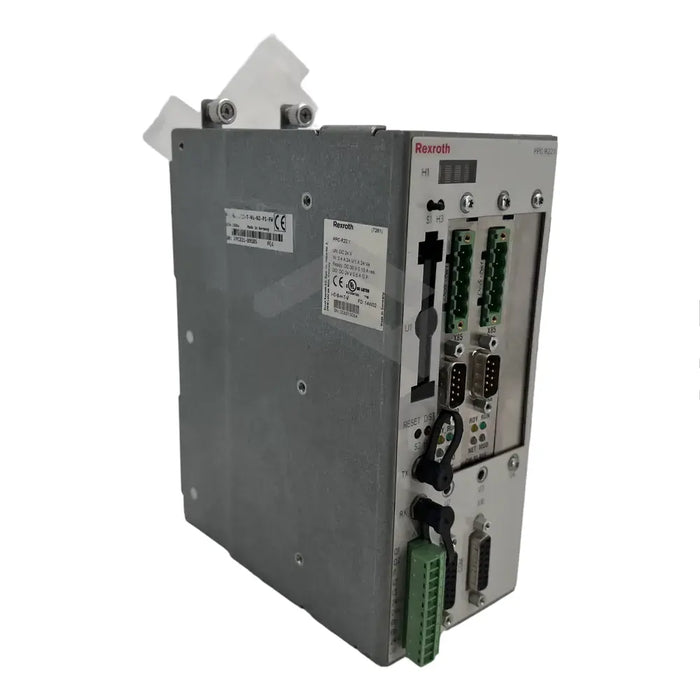

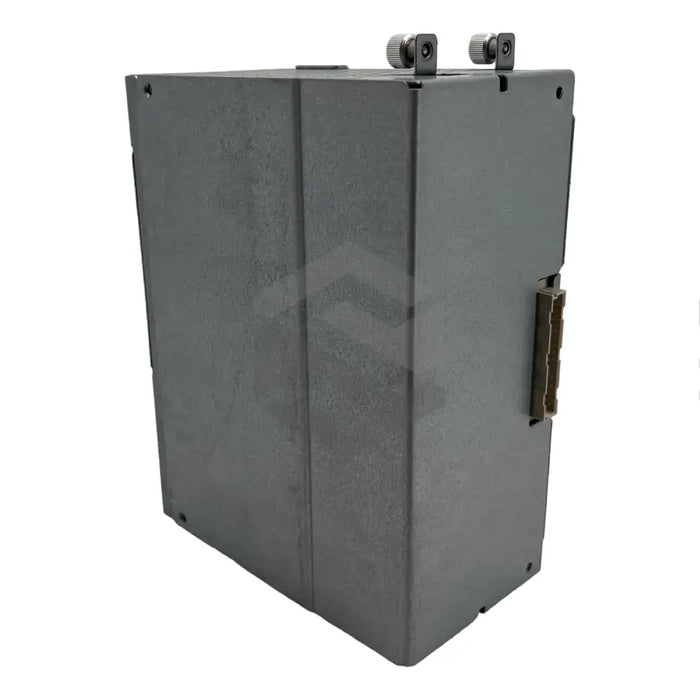

The PPC-R22.1N-T-V1-V2-NN-FW is a Bosch Rexroth MTC200 CNC module. It has three digital inputs and two digital outputs with a control unit that connects to the DIAX04 series of digital drives via fiber optic cables. The S1 button activates an S1 menu, while the device type and firmware ID are displayed by the H1 display. The module has a Class A noise emittance and operates within a relative humidity of 10% to 95%. Its firmware module is PC card compatible and includes 4MB flash and 64KB nvRAM. The control unit has three interfaces: PC/104, RECO/PLC, and SERCON 410B SERCOS. Additionally, an axis expansion module can be added if needed. The device handles an overall capacity of 52W in its I/O bus supply and communicates operational statuses through specific display codes.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: PPC-R22.1N-T-V1-V2-NN-FW
  • MTC200 CNC Module: Yes
  • Connection to DIAX04 Series Digital Drives: Fiber optic cables
  • Number of Digital Inputs: 3
  • Minimum Current Rating of Inputs: 10A
  • Number of Digital Outputs: 2
  • Maximum Current Rating of Outputs: 0.5A
  • Maximum Delay Time of Digital Outputs: 400µs
  • S1 Menu Opening Mechanism: Pressing the S1 button for more than a second
  • Auto-close Time for S1 Menu: About 20 seconds
  • Noise Emittance: Class A as per EN 55022
  • Power Fail, Boot-Lock, and Invalid Firmware States: Represented by two-character code
  • Firmware Compatibility: PC card
  • Flash Memory: 4MB
  • nvRAM: 64KB
  • Allowed Relative Humidity during Operation: 10% - 95% without condensation
  • Display Capability: Device type and firmware ID with date
  • Number of Interfaces: Three (PC/104, RECO/PLC, SERCON 410B SERCOS)
  • Axis Expansion Eligibility: Yes (through a passive axis expansion module)
  • Maximum Overall Capacity of Control Unit I/O bus supply: 52W.
