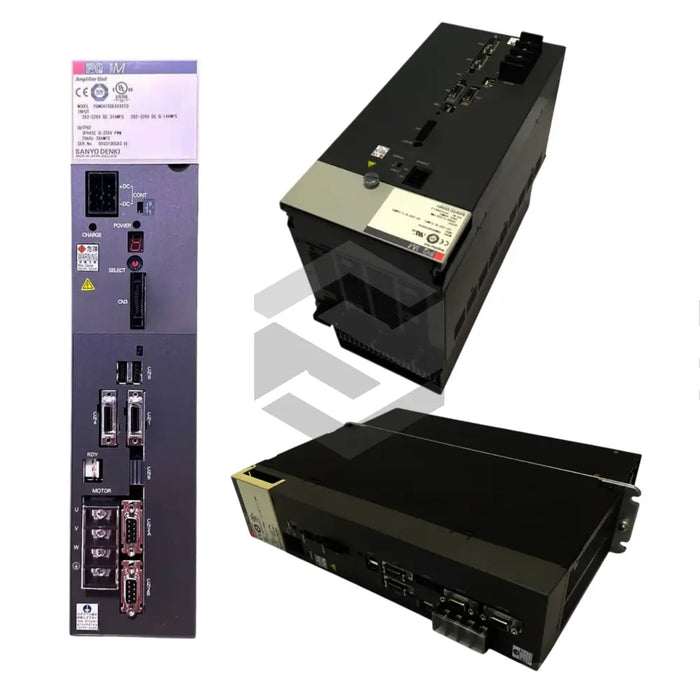

PQM0A300EXXXST0

The Sanyo Denki PQM0A300EXXXST0 servo amplifier from the PQ Type M Servo Amplifiers series delivers robust power management for industrial automation, featuring high-current capability and flexible voltage control. Engineered by Sanyo Denki for precision motion control, the unit accommodates a peak 80 A current and an input current of 67 A, ensuring stable drive performance under demanding load conditions. The amplifier supports an extensive input voltage of 282-326 V DC and outputs a controlled 0-326 V output voltage across its three-phase configuration. Key capabilities include efficient power conversion, precise voltage regulation, and continuous operation up to a maximum temperature of 45°C. Designed for industrial environments, it meets stringent reliability requirements for high-availability systems.

Technical design details reflect a focus on durability and compatibility. The power module utilizes a 25 mm² cross-section conductor to minimize resistive losses while ensuring thermal stability. Its compact enclosure measures 80 x 398 x 200 mm dimensions, simplifying panel integration and rack mounting. With a mass of 6 kg weight, the amplifier achieves an optimal power-to-weight ratio that reduces mechanical stress on support structures. It operates at both 50/60 Hz frequency standards and conforms to EMC Level Class A for electromagnetic compatibility. The device dissipates only 25 W power loss in normal operation, demonstrating high internal efficiency.

Operational performance emphasizes stable control under variable conditions. Continuous three-phase output is maintained through the 3 output phase architecture, providing balanced load distribution and minimizing voltage ripple. Rated leakage current is limited to 35 mA rated leakage current, enhancing safety and compliance with industrial regulations. The amplifier’s thermal management system ensures consistent performance at elevated ambient temperatures, with an operational ceiling of 45°C maximum temperature. Its voltage regulation circuitry adapts dynamically to load changes, preventing overshoot and ensuring precise actuator control. These features support smooth acceleration, deceleration, and position holding in motion control applications.

System integration is streamlined through standard industry interfaces and modular mounting provisions. The PQM0A300EXXXST0 integrates with existing drive controllers and feedback devices, enabling synchronization across multi-axis frameworks. Target applications include CNC machining centers, robotic assembly lines, and high-precision conveyors where reliable power delivery and tight control response are essential. By leveraging the robust specifications of Sanyo Denki, the unit satisfies the demands of advanced industrial automation and process control environments.
