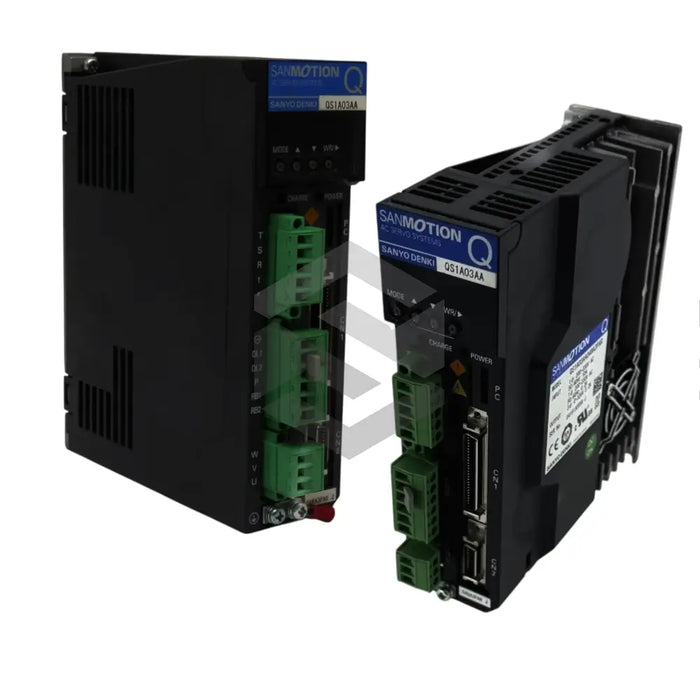

PQM0A300EXXYST2

The PQM0A300EXXYST2 from Sanyo Denki is a member of the Q SANMOTION Servo Amplifiers series, engineered for demanding industrial automation environments. This high-performance servo amplifier delivers a Rated Output Power of 300 W while operating on an Input Voltage of AC 200V. The compact form factor is defined by the Amplifier Volume specification of QS1A01, enabling integration into space-constrained control cabinets. Protection and safety are provided by an integrated Circuit Breaker rated at NF30 shape 10A. With an overall design emphasis on power density and efficiency, the PQM0A300EXXYST2 sets a new standard for mid-range servo amplification.

Performance characteristics of the PQM0A300EXXYST2 emphasize precise control and robust power delivery. The main circuit is supported by a Main Circuit Power Supply capacity of 0.8 kVA, ensuring consistent energy availability. Signal integrity is maintained by the dedicated Noise Filter EMC Corresponding Time module RF3010-DLC, which suppresses electromagnetic interference in harsh factory environments. Drive control circuitry operates with a Power Supply Control requirement of 30 VA, striking a balance between response speed and thermal management. Connection to the motor is optimized via the specified Main Circuit Electric Wire Diameter of AWG16 or 1.25mm², minimizing voltage drop and heat build-up. Critical switching operations rely on the embedded Electromagnetism Contactor S-N10 Manufactured by Mitsubishi Ltd., guaranteeing reliable engagement under heavy load. Integration with compatible motors is seamless, with the recommended Motor Model Number of 2AA07030D delivering peak dynamic performance.

Reliability and integration are cornerstones of the PQM0A300EXXYST2’s design philosophy. Its rugged architecture withstands the rigors of continuous duty cycles in high-volume production lines, advanced robotics, and precision motion platforms. Standardized mounting and control interfaces allow for straightforward incorporation into existing automation systems, reducing engineering time and cost. The amplifier maintains stable operation across a wide temperature range and features hardened components that mitigate the risk of unplanned downtime. Ideal for applications demanding consistent, uniform performance—such as assembly automation, pick-and-place machinery, CNC tooling, and robotic gantries—the PQM0A300EXXYST2 delivers reliable motion control with minimal configuration overhead.
