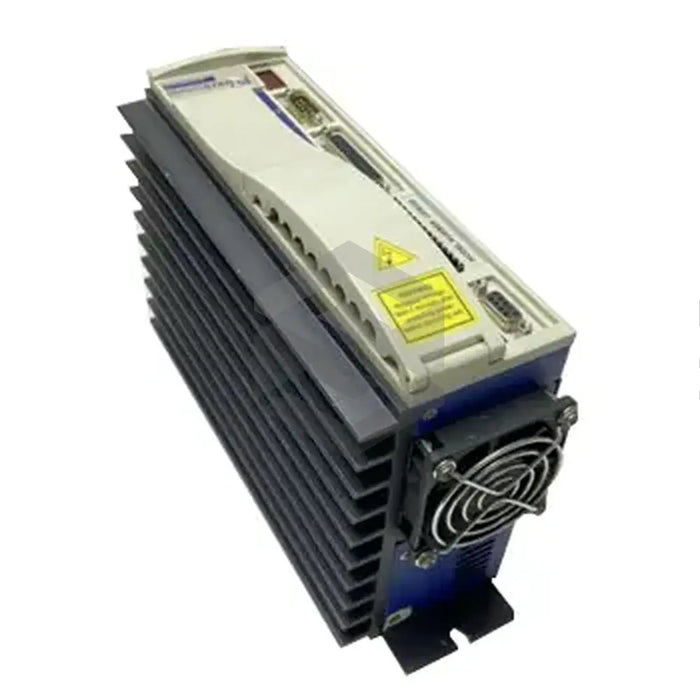

PRDrHP720SB5-65
by Kollmorgen
The PRDrHP720SB5-65 (CR06703-R) is a high-performance drive amplifier produced by Kollmorgen. Belonging to the Servostar CD product line, this amplifier is suitable for a range of industrial applications, such as machine tools, electronic assembly, packaging, and document handling. The unit can be programmed via analog, serial, and SERCOS interfaces and uses a resolver for input. The resolver input specification includes 0.47 transformation ratio, 7-8 kilohertz modulation frequency, 4.25 Volts input voltage, 120 Ohms maximum resistance, 55 milliamps current, and 2 Volts AC output. The amplifier is compatible with shielded cables, up to 75 feet, for motor feedback, however, consultation with Kollmorgen is advised for longer cable related queries.
Environmentally, the amplifier operates within an ambient temperature range of 41-113 degrees Fahrenheit and can be stored between 32-158 degrees Fahrenheit. It can withstand a relative humidity of 10-90% (non-condensing) and a maximum site elevation of 3300 feet. It's important to use the product in dust and corrosive gases free surroundings, as well as its vibration rating is 0.5 g. To ensure safe operation, the PRDrHP720SB5-65 (CR06703-R) amplifier features undervoltage, overvoltage, and overtemperature protection and is set to trip under certain voltage and temperature conditions—90 Volts DC and 430 Volts DC for voltage and 176 degrees Fahrenheit for temperature, respectively. It's recommended that only qualified personnel should handle this product.
