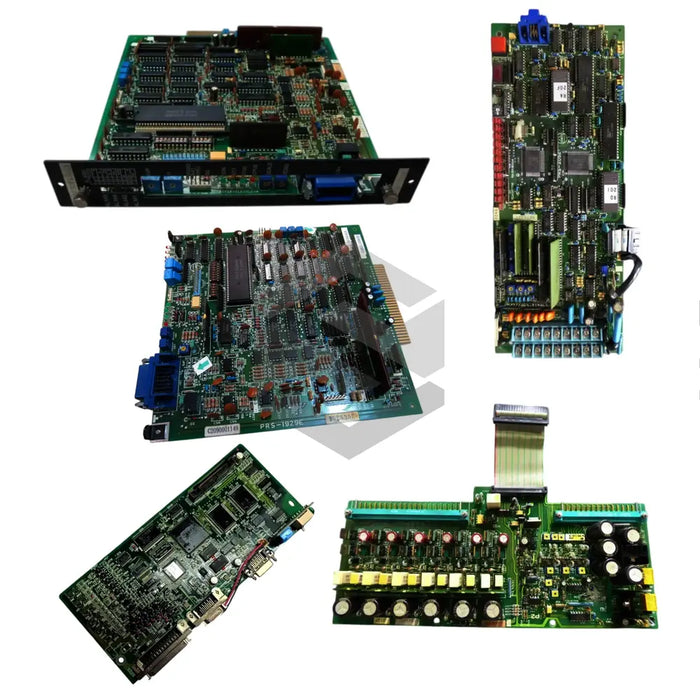

PRS-3002

The PRS-3002 from Sanyo Denki PRS Servo Drive Boards series is a high-performance servo drive board engineered for demanding industrial automation applications. Featuring a 24 V DC input requirement and a robust current rating of 10 A, this board delivers precise motion control through its servo signal amplification amplifier function. Constructed from durable ABS material, the PRS-3002 supports three model variants—65AA030VXR00E, 65AA030VXR01D, and 65AA050VXR01E—to accommodate a range of torque and power requirements. Its compact form factor of 150 mm x 100 mm x 30 mm and a lightweight design of approximately 0.5 kg enable seamless integration into space-constrained control panels. The board’s modular design facilitates straightforward incorporation into existing servo systems, making it ideal for both new installations and retrofit projects.

Performance is enhanced by a closed-loop control mode that delivers rapid, high-speed feedback for accurate position and velocity regulation. Communication flexibility is ensured through dual interfaces, including RS-485 and CANopen, enabling stable connections with PLCs, HMIs, and networked automation systems. Digital and analog signal outputs provide compatibility with a variety of sensors and actuators, while efficiency ratings exceeding > 90% minimize energy consumption and heat generation. The drive’s internal architecture is optimized for reliable operation within an operating temperature range of -10°C to +50°C, ensuring consistent performance in harsh factory environments. Through precise signal conditioning and advanced error suppression, the PRS-3002 maintains smooth, jitter-free motion profiles even under variable load conditions.

Reliability is further underscored by rigorous quality control and an industrial-grade build that withstands continuous operation in automated production lines. Its modular integration approach simplifies system maintenance and scalability, allowing technicians to swap or upgrade boards with minimal downtime. The PRS-3002’s combination of compact dimensions, high efficiency, and versatile communication interfaces makes it ideally suited for robotics, CNC machinery, packaging systems, and conveyor controls. Backed by Sanyo Denki’s reputation for durability, this servo drive board supports extended mission-critical operation in manufacturing, material handling, and process automation environments. With a focus on seamless interoperability and long-term reliability, the PRS-3002 delivers a dependable foundation for advanced motion control solutions.
