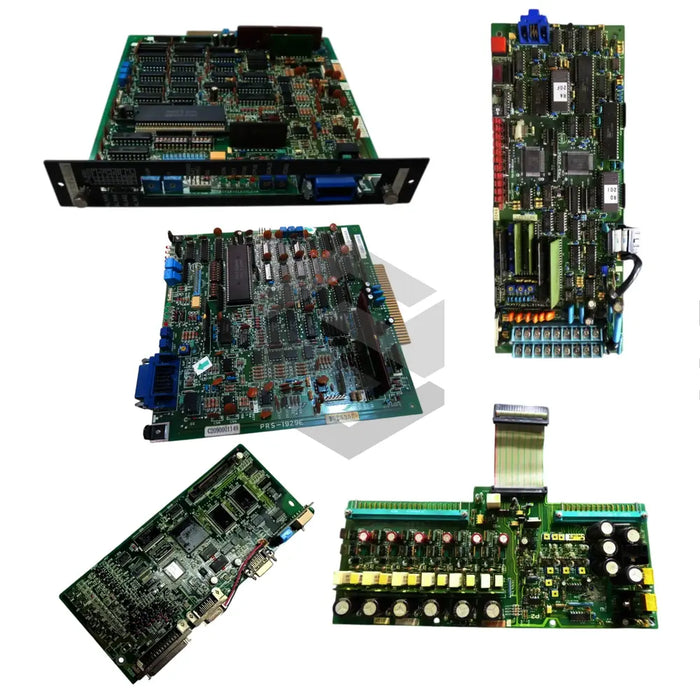

S image of PRS-4681F

PRS-4681F

by Sanyo Denki
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The PRS-4681F drive board from Sanyo Denki exemplifies high-performance motor control within the PRS Servo Drive Boards series. Engineered for industrial automation, this compact module delivers a Power Output ranging from 2 to 5 kW while operating on a standard Input Voltage of 24V DC. Its footprint is optimized for panel integration, measuring Dimensions: 200 x 150 mm (L x W), and it weighs just 1.5 kg, minimizing cabinet load. Designed for harsh environments, the module maintains reliable operation across an Operating Temperature range of -10°C to 60°C. With a low Power Consumption of 50 W, it balances energy efficiency and output capacity. This drive board holds Certifications for both CE and UL (safety & EMC), ensuring compliance with stringent industrial standards.

Performance is driven by an onboard processor running at Processor Speed: 150 MHz, paired with Memory: 64 MB flash for firmware and parameter storage. The board supports versatile Control Interface options, offering both digital & analog I/O channels to accommodate various sensor and actuator pairing. Communication is facilitated via dual Communication Protocols: RS485 and CAN bus, enabling integration with modern networked systems. Passive Cooling Type preserves system simplicity while dissipating heat effectively in enclosed cabinets. The drive’s dynamic response and precision make it ideal for CNC machinery, robotic arms, and automated assembly lines where accurate torque and speed regulation are critical.

Reliability is further enhanced by robust construction and EMI filtering, meeting industrial electromagnetic compatibility requirements. As part of an integrated solution, the PRS-4681F seamlessly interfaces with Compatible Systems such as the Nissei TACT series (e.g., TCTMCPU-10), simplifying deployment in existing control architectures. Its wide temperature tolerance and passive cooling ensure stable performance under fluctuating environmental conditions. Certified for safety and electromagnetic compliance, this drive board provides confidence in continuous operation across a variety of applications. From precision robotics to high-speed packaging lines, the PRS-4681F drive board offers dependable servo control tailored to demanding industrial automation scenarios.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Certifications

CE, UL certified (safety & EMC)

Communication Protocols

RS485, CAN bus

Compatible Systems

Nissei TACT series (e.g., TCTMCPU-10)

Control Interface

Digital & analog I/O

Cooling Type

Passive

Dimensions

200 x 150 mm (L x W)

Input Voltage

24V DC

Memory

64 MB flash

Model Number

PRS-4681F

Operating Temperature

-10°C to 60°C

Power Consumption

50 W

Power Output

2 to 5 kW

Processor Speed

150 MHz

Weight

1.5 kg
