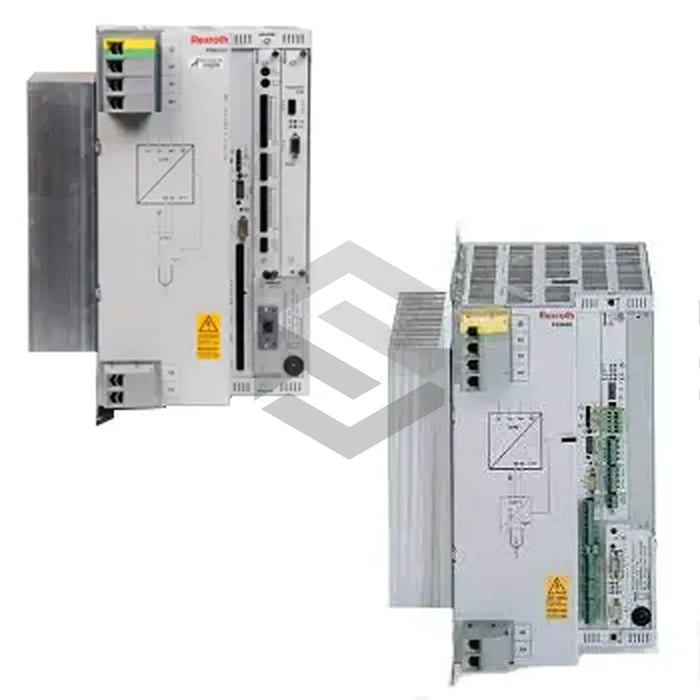

The PSI 6200.100W1 from Bosch Rexroth Indramat features a nominal system current of 220 A and an integrated weld timer. Part of the PSI Frequency Inverters series, it outputs 1200 A peak and uses water cooling at 4 l/min. It features overvoltage protection via MOV and a protection rating of IP20.
It runs at up to 55 °C ambient and weighs 56 kg. The module provides an I/O slot for fieldbus connections. Cooling water temperature is limited to 30 °C.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Ambient operating temperature
Max. 55 °C
Cooling medium
Water, 4 l/min
Electrical connection
High-current bushing terminal
I/O interface
Slot for parallel, serial, or fieldbus
Max. cable cross-section
95 mm²
Max. cooling water temperature
30 °C
Max. output current
1200 A
Max. secondary current
54 kA (PSG 3100)
Nominal system current
220 A
Overvoltage protection
Metal oxide varistor (MOV)
Protection rating (module)
IP20
Protection rating (with cabinet)
IP54
Storage temperature range
-25 °C to +70 °C
Supply voltage
24 V DC (19–30 V DC, EN 61131-2)
Temperature monitoring
Integrated
Type
3-phase MF inverter module, recessed mounting
Weight
Approx. 56 kg
Weld timer
Integrated
