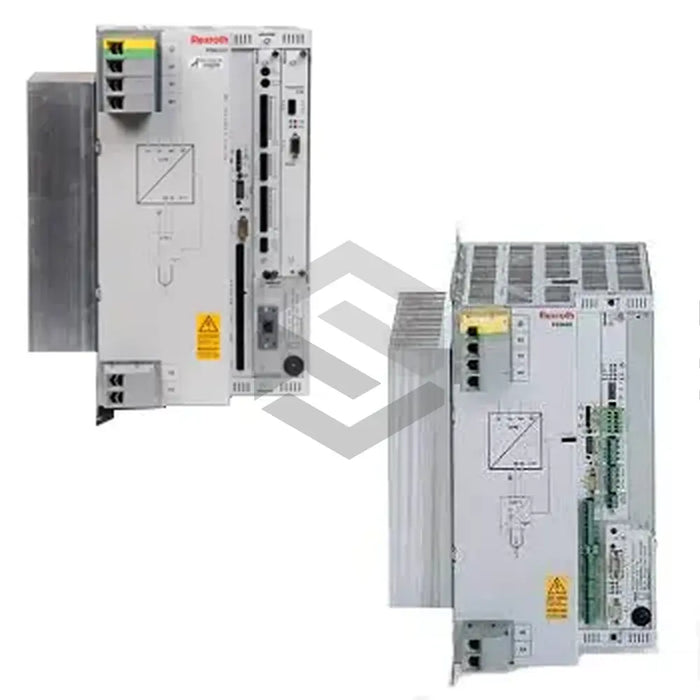

PSI6100.625-L1

Original price $2,700.00 - Original price $2,700.00
Original price
$2,700.00
$2,700.00 - $2,700.00
Current price $2,700.00
Available, Shipping Varies
Request a quote
The product in consideration is the PSI6100.625-L1 MF inverter by Bosch Rexroth Indramat, a well-known name in industrial technologies. A crucial component in an industrial setting, it is employed for resistance metal welding, specifically in combination with PSG 3000 series welding transformers. The PSI6100.625-L1 presents a trio of I/O interface options: Fieldbus, serial, or parallel. The power unit boasts a 3-phase design with an integrated weld timer, and voltage supply maintained at a constant 24 V DC. Its mechanical parameters include the following key specs: a maximum output current of 400A, a nominal system current of 110 A, and a maximum secondary current of 20 kA. The power unit is designed to be flexible with an option for vertical, or back mounting using a plate. It is required to operate in ambient conditions not exceeding 55 degrees and capped at 2000 meters above sea level. A downside to the PSI6100.625-L1 would be a high switchgear cabinet loss of 69W and cooling loss of 360W.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: MF Inverter
  • Model: PSI6100.625-L1
  • Intended Use: Industrial Metal Welding
  • Design: 3-phase
  • I/O Interfaces: Fieldbus, Serial, Parallel
  • Maximum Output Current: 400A
  • Nominal System Current: 110A
  • Maximum Secondary Current: 20kA
  • Voltage Supply: 24V DC
  • Clock Frequency: 1 kHz
  • Overvoltage Protection: MOV (Metal Oxide Varistor)
  • Wire Range: 35 mm2
  • Switchgear Cabinet Loss: 69W
  • Maximum Cooling Loss: 360W
  • Weight: 20kg
  • Mounting Options: Vertical or Back Mounting
  • Rated Voltage: 400 to 480V, 50/60 Hz
  • Storage Temperature: -25 to 70 degrees
  • Operating Temperature: Up to 55 degrees
  • Permissible Relative Humidity: 90% at 20 degrees
  • Installation Elevation: Up to 2000 meters above sea level
  • Protection Category: IP20
  • Recommended Enclosure: IP54 switchgear cabinet
  • Uses: PSG 350.00 A, PSG 3050.10 A, PSG 3075.10 A, and PSG 3100.00 A Welding Transformers
  • Benefits: Reudced welding splashes, exceptional welding for thin sheets, 3-sheet & fine spot applications.
