PSI6100.650-L1

Original price $9,920.00 - Original price $9,920.00
Original price
$9,920.00
$9,920.00 - $9,920.00
Current price $9,920.00
In Stock, Ships 1 - 2 Days
Request a quote

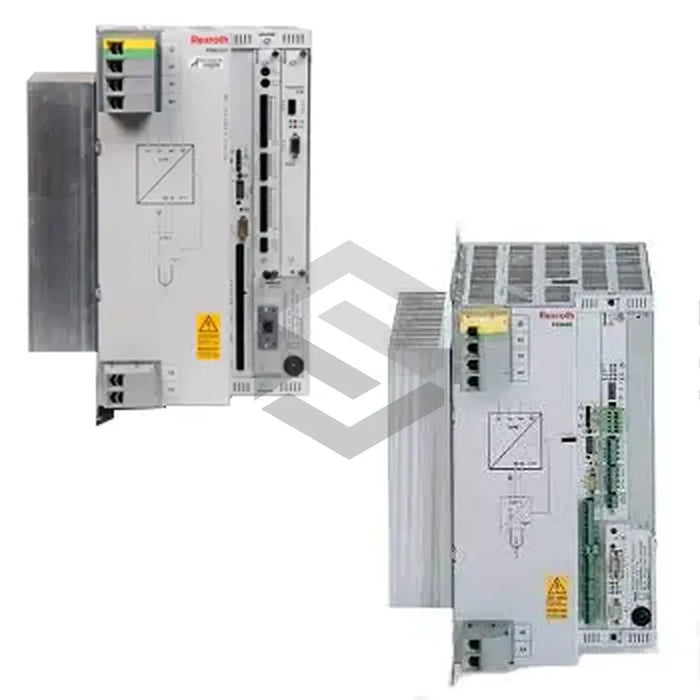

Produced by Bosch Rexroth Indramat, the PSI6100.650-L1 is a medium-frequency inverter system used for direct current welding applications. This device, when paired with a PSG-3000 transformer, significantly enhances welding results owing to its unique features, such as integrated controls and monitoring functions. Minimal additional cabling is required due to the compact integration of the system’s components. With an inbuilt weld-timer, the inverter features a slot for Fieldbus and quality modules, and utilizes a nominal current of 110 A, with a maximum current output of 400 A. The PSI6100.650-L1 also includes a metal oxide varistor for overvoltage protection. Weighing around 20 kg, it can be mounted vertically or on a back plate and shows compatibility with IP 20 standard protection. An easy-to-use BOS-5000 operator interface and comprehensive diagnostic capabilities are integrated for user's convenience. This system ensures high operational stability, continuously controls welding results, and is equipped with a thermostatic switch to detect overload conditions in the PSG-3000 transformer.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Medium Frequency Inverter System
  • Model: PSI6100.650-L1
  • Usability: Direct Current Welding Processes
  • Compatibility: PSG-3000 Transformer
  • Control Functionality: High Quality, Medium Frequency Welding
  • Installation: Portable Welding Box System
  • Additional Feature: Inbuilt Weld-Timer in CPU
  • Slots: One for Fieldbus Module, One for Quality Module
  • Nominal Current: 110 A
  • Maximum Output Current: 400 A
  • Overvoltage Protection: Equipped with MOV (Metal Oxide Varistor)
  • Weight: Approximately 20 kg
  • Mounting: Back Mounting Plate or Vertical Position
  • Protection Standard: IP 20, Can be Installed in a Switchgear Cabinet with IP 54 Standard Protection
  • Interface: BOS-5000 Operator Interface
  • Diagnostic Capabilities: Comprehensive
  • Operational Reliability: High, Reports Fault if PSG-3000 Transformer is under Overload
  • Switch: Thermostatic Switch to Signal Overload Fault
  • Special Feature: Constant Current Control for Constant Welding Result.
