P image of PSI6300.360-L1

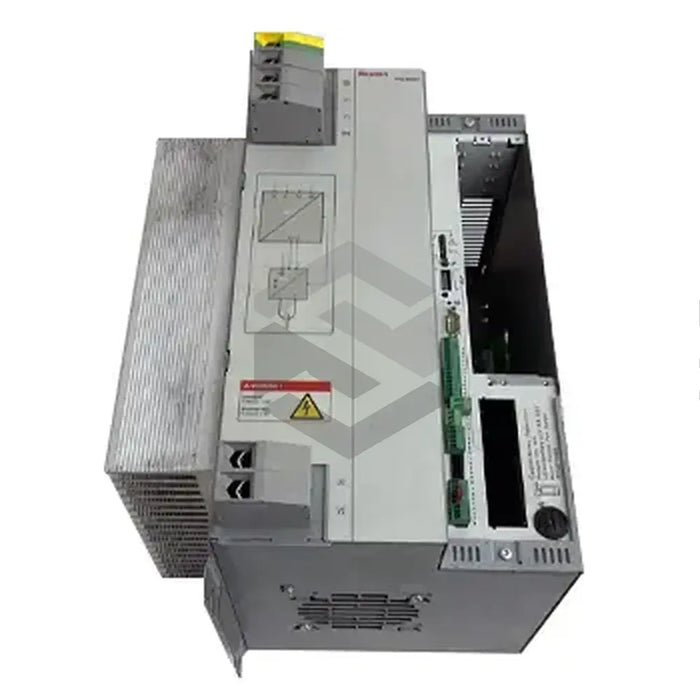

PSI6300.360-L1

by Bosch Rexroth Indramat
$1,912.30 - $1,912.30
$1,912.30
$1,912.30 - $1,912.30
$1,912.30

In Stock, Ships 1 - 3 Days

Manufactured by Bosch Rexroth Indramat, the PSI6300.360-L1 is a medium-frequency inverter ideal for resistance seam, projection, and spot-welding applications. This 1,000Hz or DC technology module boasts a maximum constant current rating of 220A and comes equipped with an integrated control function. Designed strictly for industrial environments, it abides by DIN EN 50081-2 and 50082-2 specifications. The module is CE certified and has an IP20 protection rating, requiring installation in a switchgear cabinet with an IP54 rating or higher. The inverter operates optimally at a frequency of 50-60Hz and its mounting should account for its weight. In addition, it requires at least 100mm clearance top and bottom and a dust and chemical-free environment. With a maximum operating temperature of 55°C, the module uses a metal oxide varistor for over-voltage protection, supports a maximum output current of 800A, and a clocking frequency of 1kHz. For optimal function, ensure vertical mounting and clean, uncoated contact surfaces.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

PSI6300.360-L1

Product Type

Medium-frequency Inverter

Application

Resistance seam, projection, and spot-welding

Thermal Constant Current Rating

220A

Control Function

Integrated

Certification

CE

Series

PSI

Operating Environment

Industrial environments per DIN EN 50081-2 and 50082-2

Protection Rating

IP 20

Operating Frequency

50-60Hz

Mounting Clearance

At least 100mm at the top and bottom

Additional Features

Integrated weld timer, Recessed mounting style

Ambient Operating Temperature

55°C

Humidity Class

Class F per DIN 40040

Over-voltage Protection

Metal oxide varistor

Maximum Elevation for Installation

2000m above sea level

Maximum Output Current Rating

800A

Clocking Frequency

1kHz

Orientation

Vertical.
