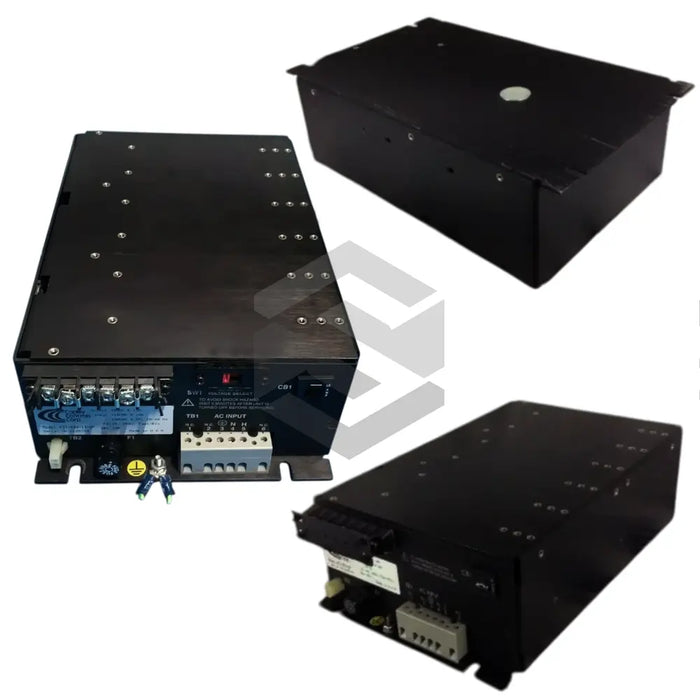

S image of PST-075-10-EF

PST-075-10-EF

by Copley Controls
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The PST-075-10-EF from Copley Controls delivers continuous output power of +70VDC at 10A and a no-load voltage of 77VDC. Part of the PST Power Supplies, it operates from 105 to 132VAC and draws up to 9A. It offers a capacitance of 20,000µF and supports an optional fan bar for three 3.15" fans.

The unit has a 15A circuit breaker and peak current of 2.5× rated for 1s. Operating temperature ranges from 0°C to 50°C. Weighing 18.0 lbs with a 7"×11.5" footprint, it is compact and robust.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Capacitance

20,000 µF

Circuit breaker rating

15 A

Continuous output current

10 A

Dimensions (footprint)

7" × 11.5"

Input frequency

60 Hz

Input phase

Single‑phase

Input voltage range

105–132 VAC

Max input current

9 A

No‑load voltage

77 VDC

Operating temperature range

0°C to 50°C

Optional fan bar

Three 3.15" fans

Output voltage

+70 VDC

Peak output current

2.5× continuous for 1 s (20% duty)

Resistor value

3.9 kΩ

Temperature derating

0.86%/°C from 50°C to 65°C

Tooling

PEM fasteners on top plate

Weight

18.0 lbs (8.2 kg)
