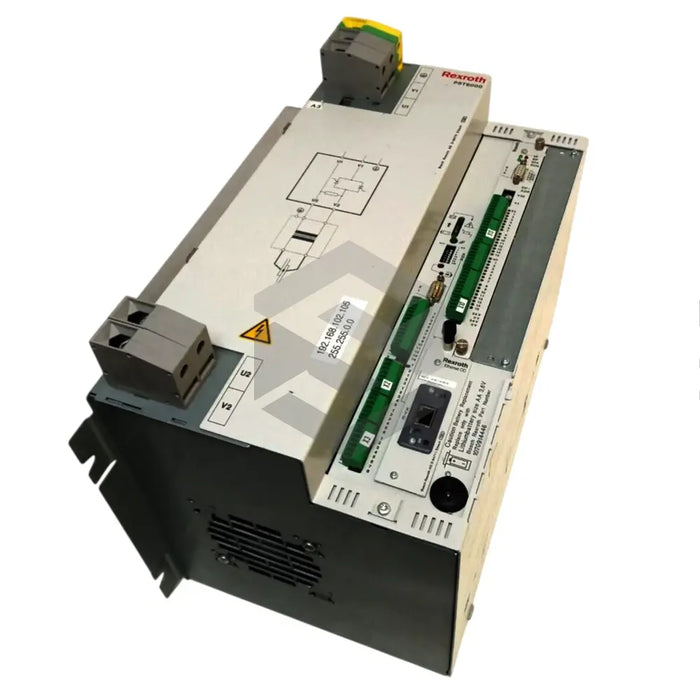

manufacturer image of PST6100.210-L

PST6100.210-L

by Bosch Rexroth Indramat
Request a quote
The PST6100.210-L is a thyristor power unit, produced by Bosch Rexroth Indramat, falling under the PST6100 series. Utilized primarily for alternating current resistance welding, it boasts separated control and monitoring systems, enclosed within a streamlined form. The unit's features include programmable weld times, diverse welding modes, and a weld timer. It employs Fieldbus interfaces for communication and regulates the welding transformer, thereby boosting welding quality. The PST6100.210-L conforms to the humidity class F according to DIN 40040, and its thermostatic switch can flag overload conditions. With an IP protection level of 54 when installed in a switchgear cabinet, the unit's structure permits lesser cabling and robust system component integration. Its load capacity is dependent on the maximum size of the welding transformer. The unit proffers multiple welding process applications, including seam, spot, and projection welding.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: PST6100.210-L
  • Series: PST 6100
  • Usage: Alternating current resistance welding
  • Control and Monitoring: Separated functionality
  • Enclosure: Compact with thyristor power unit and weld timer
  • Weld Timer: Programmable
  • Welding Modes: Variety
  • Humidity Class: Class F as per DIN 40040
  • Communication: Fieldbus interfaces
  • Function: Control of welding transformer
  • Diagnostics: Integrated facilities
  • Overload Detection: Thermostatic switch
  • Protection: IP 54 when installed in switchgear cabinet
  • Cabling: Reduced due to system component integration
  • Load: Depends on maximum welding transformer size
  • Installation: Vertical recommended
  • Mounting Position: Vertical or back on mounting plate
  • Clearance: 100 millimeters minimum at top and bottom
  • Commissioning: Check weld program, current values, and weld times
  • Portability: Can be integrated into portable welding box system
  • Power Loss: 70 Watts in basic switchgear cabinet
  • Durability: Rugged design
  • Applicable Welding Processes: Spot welding, seam welding, projection welding.
