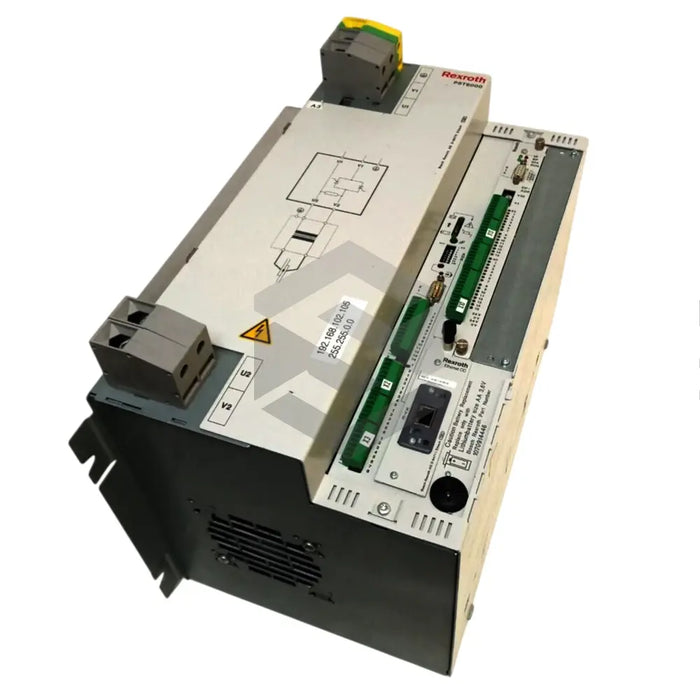

manufacturer image of PST6100.322-L

PST6100.322-L

by Bosch Rexroth Indramat
Request a quote
The PST6100.322-L is a thyristor power unit produced by Bosch Rexroth Indramat, designed for 76 kVA transformers. Equipped with an air cooling system, this unit has an integrated control function, rated voltage range of 400 to 600 volts, and constant thermal current of 110A. It features mounting options, multiple connection points, weld timer, and numerous I/O interfaces such as Fieldbus, serial, and parallel. An additional battery compartment and quality module slot are also included. Weighing 12.5kg, this unit has a clock frequency of 50 to 60Hz and is protected by a Metal Oxide Varistor (MOV) for overvoltage defense. It allows vertical as well as back mounting with an IP 20 protection category, while being ideal for a switchgear of IP 54 category. The PST6100.322-L operates under -25 to 70 degree storage temperatures, up to 55 degrees operation temperature, and can be installed at elevations up to 2000 meters. Moreover, the required connection voltage is 24 V DC, with a line voltage range of 400V-20% to 600V+10%. This unit utilizes a BOS-5000 operator interface for straightforward operation, programming, and diagnostics, with less cabling needed due to integrated components.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: PST6100.322-L
  • Type: Thyristor Power Unit
  • Connection Capacity: Up to 76 kVA transformers
  • Cooling Type: Air Cooling
  • Rated Voltage: 400 to 600 Volts
  • Rated Thermal Current: 110A
  • Mounting: M6 options
  • Supply Connection: Mains supply
  • Control Function: Integrated
  • I/O Interfaces: Fieldbus, serial, parallel
  • Battery Compartment: Included
  • Weight: 12.5kg
  • Wire Range: 50 mm2
  • Clock Frequency: 50 to 60Hz
  • Overvoltage Protection: Metal Oxide Varistor (MOV)
  • Mounting Orientation: Vertical or back on a mounting plate
  • Protection Category: IP 20
  • Installation Requirements: Switchgear that complies with IP 54
  • Ambient Condition Storage Temperature: -25 to 70 degrees
  • Maximum Operating Temperature: 55 degrees
  • Maximum Installation Elevation: 2000 meters above sea level
  • Relative Humidity: 95% no condensation
  • Voltage Supply: 24 V DC
  • Line Voltage Connection: 400V-20% to 600 v +10%
  • Switchgear Cabinet Power Loss: 70 W
  • Accessories: Must be mounted parallel
  • Features: BOS-5000 operator interface
