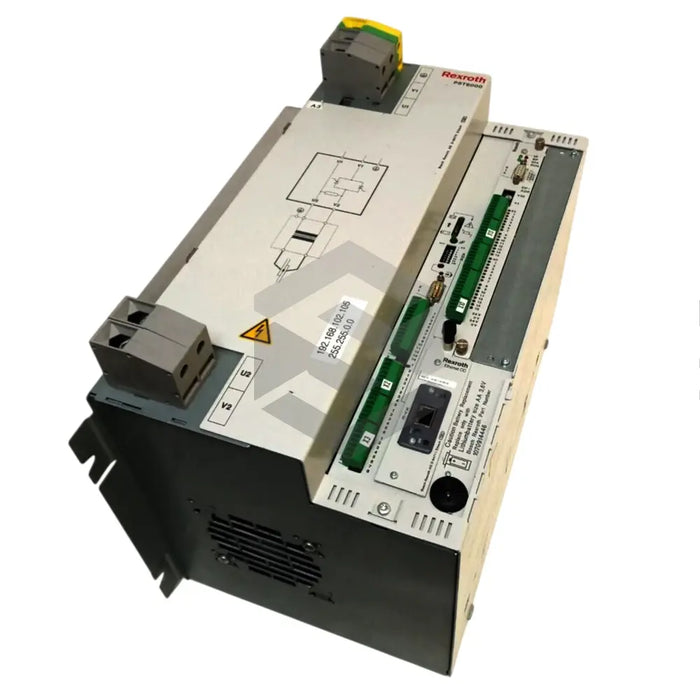

S image of PST6100.630-L

PST6100.630-L

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat PST6100.630-L is a high-quality, 2-phase thyristor power unit, designed for resistance metal welding applications. It is furnished with an air cooling system, onboard control function, and operates at a voltage rating between 400V -20% and 600V +10%. The unit offers versatile mounting options with M6 rear and left side panels. It integrates welding transformer and mains supply connections and is built with an array of interface slots such as parallel I/O, serial I/O, and Fieldbus I/O. Operating under an IP 54 protection category, the unit can withstand an ambient temperature up to 55 degrees and cooling air temperature up to 45 degrees. It also features temperature monitoring functions and can be installed at elevations up to 2000 meters. Weighing roughly 12.5kg, this compact device demands minimal cabling and can be effortlessly integrated into welding box systems.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

PST6100.630-L

Cooling Method

Air

Control Function

Integrated

Rated Voltage

400V -20% to 600V +10%

Mounting Options

M6 rear and left side panel

Features

mains supply connection, thyristor power unit symbol, welding transformer connection, integrated weld timer

Interface Slots

Parallel I/O, Serial I/O, Fieldbus I/O, programming and quality module

Design

2-phase thyristor power unit for recessed mounting

Protection category

IP 54

Max Ambient Temperature

55 degrees

Max Cooling Air Temperature

45 degrees

Temperature Monitoring

Integrated

Storage Temperature

-25 to 70 degrees

Relative Humidity

90% at 20 degrees, 50% at 40 degrees

Installation Elevation

2000m above sea level

Weight

12.5kg

Wire Range

50mm2

Clock Frequency

50/60Hz

Primary Use

connection of welding transformers for metal resistance welding

Application

Industrial

Required Clearance

30m from residential areas, 10m from communication systems

Cabling

Minimal due to component integration.
