PST6250.105-L

Original price $10,000.00 - Original price $10,000.00
Original price
$10,000.00
$10,000.00 - $10,000.00
Current price $10,000.00
Available, Shipping Varies

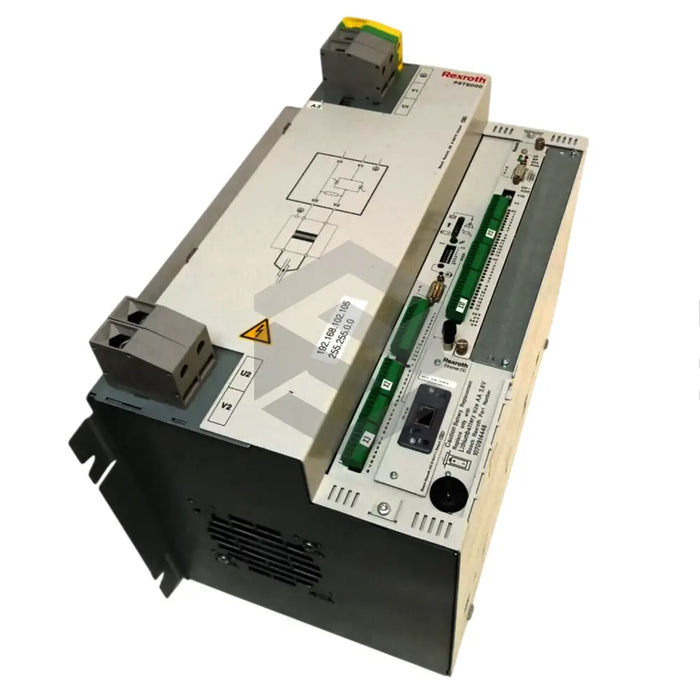

The PST6250.105-L, a product by Bosch Rexroth Indramat, is a two-phase thyristor power unit designed for transformers up to 250kVA capacity. Its cooling method is air-based. This device supports rated voltages between 400V-20% and 600V +10%, offering an integrated control function. Moreover, it possesses an I/O interface which can be of either parallel, serial, or Fieldbus type. Prepared for retrofitting, it offers a quality module slot. The device carries a protection category of IP 20, requiring an accommodation in a switchgear cabinet of IP 54 protection class. It supports line voltage connections ranging from 400V and 600V, can handle a nominal system current of 200A, and requires a voltage supply of 24V DC. Also, it operates under certain ambient conditions, having a temperature range of -25 to 55 degrees Celsius, relative humidity of 90% at 20 degrees Celsius and 50% at 40 degrees Celsius, and a maximum installation altitude of 2,000m above sea level. Weighing 12.5 Kg, it features MOV overvoltage protection and a wire range that accommodates up to 95mm2. Available for vertical or mounting plate installation, follow precautions during assembly to ensure adequate air cooling and prevent any overload of its weld timer. The PST6250.105-L comes equipped with a mains supply connection, multiple mounting options, slots for the interface, and a battery compartment. For proper functioning, ensure correct electrical connection, sufficient cooling, and avoid overloading the unit.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: PST6250.105-L
  • Product Type: Thyristor Power Unit
  • Transformer Limit: 250 kVA
  • Cooling Method: Air
  • Rated Voltage: 400 V - 20% to 600 V +10%
  • Control Function: Integrated
  • Design: 2-Phase, Recessed Mounting
  • I/O Interface: Parallel, Serial, or Fieldbus
  • Protection Category: IP 20
  • Required Cabinet Protection Class: IP 54
  • Line Voltage Connection: 400 V to 600 V
  • Nominal System Current: 200 A
  • Voltage Supply: 24 V DC
  • Operating Temperature: 55 Degrees
  • Storage Temperature: -25 to 70 Degrees
  • Relative Humidity: 50% at 40 Degrees & 90% at 20 Degrees
  • Max Installation Height: 2000 Meters Above Sea Level
  • Weight: 12.5 Kg
  • Surge Protection Type: MOV Overvoltage
  • Wire Range: Up to 95 mm2
  • Mounting Options: Vertical or Mounting Plate.
