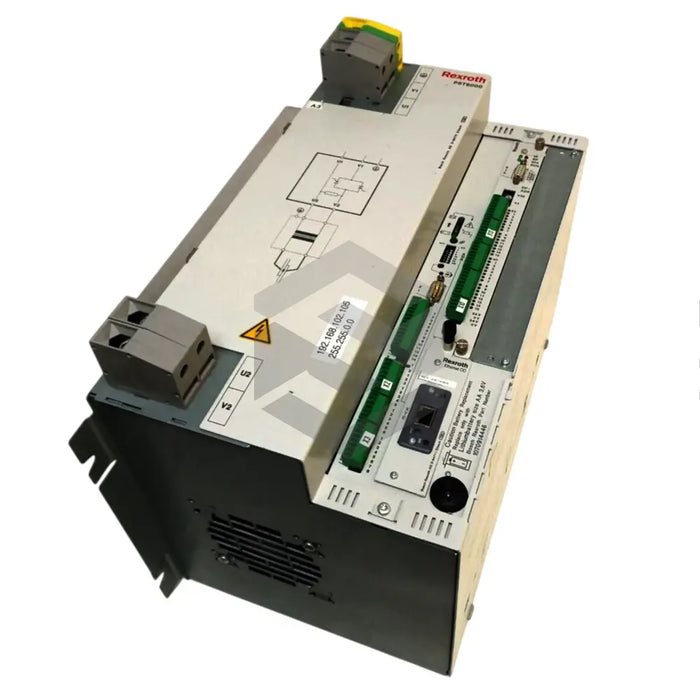

manufacturer image of PST6250.627-L

PST6250.627-L

by Bosch Rexroth Indramat
$2,700.00 - $2,700.00
$2,700.00
$2,700.00 - $2,700.00
$2,700.00
In Stock, Ships 1 - 2 Days
The PST6250.627-L is a 2-phase thyristor power unit created by industry leader, Bosch Rexroth Indramat. Designed for optimal application with welding transformers, this unit is noted for its integrated weld timer and expandable quality module slot. The unit adheres to an IP 20 protection standard and should be hosted within an IP 54 environment, which must be free from acidic, caustic, corrosive, or salty substances. The unit's ambient conditions allow for installation up to 2000m altitude, up to 90% humidity, and temperatures between -25 and 70°C, while functioning optimally at 55°C. Attention to electrical conditions is key with this unit, including a 200A nominal system current line voltage of 400V to 600V, and a 50/60 Hz clock frequency. Weighing in at 12.5kg, the PST6250.627-L uses a metal oxide Varistor for overload protection, requiring either vertical or plate-based mounting. The unit's design allows for varied interface options and includes safeguards such as a thermostatic switch, blocking sequences when exceeding 80°C.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Thyristor Power Unit
  • Model: PST6250.627-L
  • Design Type: 2-Phase
  • Additional Features: Integrated Weld Timer, Quality Module Slot for Retrofitting
  • Protection Category: IP 20 (Unit), IP 54 (Mounting)
  • Ambient Conditions: Max altitude: 2000 meters, Humidity: 90% at 20 degrees, 50% at 40 degrees
  • Ambient Temperature: Storage: -25 to 70 degrees, Operation: up to 55 degrees
  • Electrical Parameters: Nominal System Current: 200 A, Line Voltage Connection: 400-600 V, Clock Frequency: 50/60 Hz
  • Mechanical Specs: Weight: 12.5Kg, Wire Range: 95mm2, Overload Protection: Metal Oxide Varistor
  • Mounting: Vertical Orientation or Mounting Plate
  • Construction Details: Left Side and Rear Panel Mounting, Welding Transformer Connection, Parallel, Fieldbus, and Serial Interface slots, Quality Module and Battery Compartment for Retrofitting
  • Temperature Control: Thermostatic Switch (blocks sequences if unit temperature exceeds 80 degrees)
