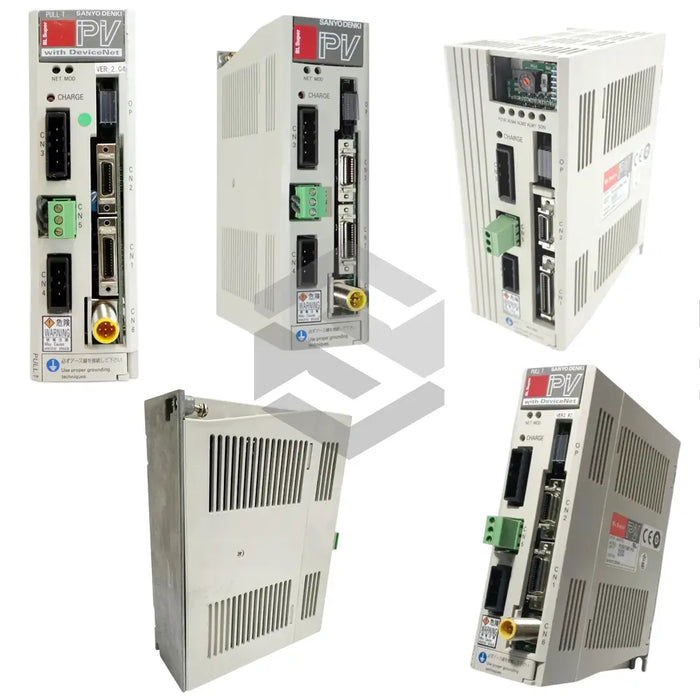

PV2A015SMT1P50-202
by Sanyo Denki
The Sanyo Denki PV2A015SMT1P50-202 is a high-performance servo amplifier from the distinguished PV Super Servo Amplifiers series by Sanyo Denki. Designed for demanding industrial automation applications, this device delivers a rated output current of 15 A and a rated output voltage of 50 V, making it well suited for precise motion control in robotics, CNC machines, and other automated systems. With a switching frequency of 4 kHz, the PV2A015SMT1P50-202 provides swift response times and smooth operation, ensuring accurate speed and torque control under dynamic load conditions.
Built on robust surface mount technology (SMT), the PV2A015SMT1P50-202 features a passive cooling method with the option for active cooling to maintain temperatures within its operating range of –20°C to +75°C. Crafted with industrial-grade metal enclosure material, it offers durability and heat dissipation, while protection features such as overcurrent, overvoltage, and thermal protection safeguard the amplifier and connected equipment. Terminal connections are realized via SMT pads and leads, facilitating compact integration into control cabinets. The unit achieves an efficiency of over 90%, minimizing energy loss and heat generation during continuous operation.
This amplifier supports versatile mounting options—both panel and DIN rail—maximizing installation flexibility in varied layouts. The compact package dimensions of 50 x 40 x 20 mm (L×W×H) allow integration into space-constrained assemblies. The PV2A015SMT1P50-202 is certified to meet CE, TÜV, and UL safety standards, ensuring compliance with international regulations. Additional connectivity is enabled through high-density D-sub connectors and an optional OP connection for module expansion or optical contacts. By combining rugged construction, advanced protection, and high switching speed, the PV2A015SMT1P50-202 enhances system reliability and precision, delivering superior performance in industrial environments.
