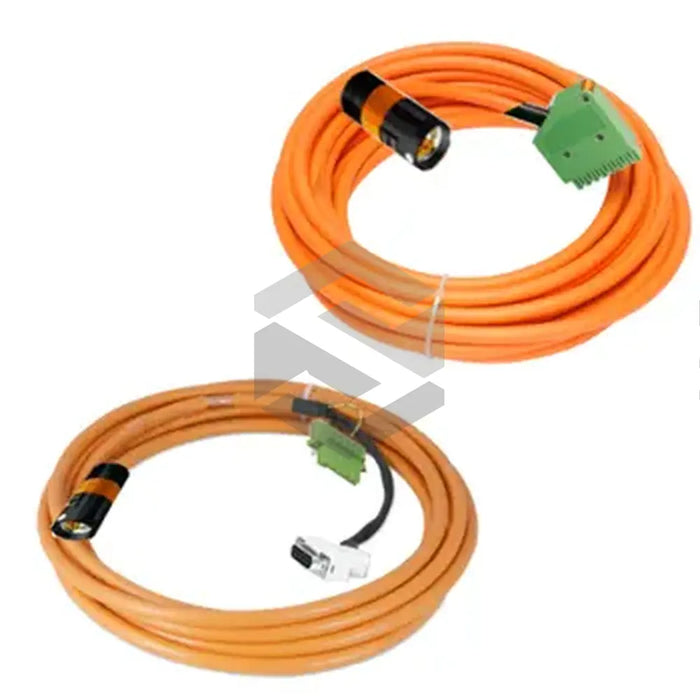

PWR-AKM-030M-MCS-000-14-6H
by Kollmorgen
The PWR-AKM-030M-MCS-000-14-6H is an advanced servo cable manufactured by Kollmorgen and a key component of the Kollmorgen Servo Cables series, designed to deliver robust performance in demanding industrial automation environments. This versatile cable supports a wide nominal input voltage range of 207-460 VAC, 3-phase, accommodating diverse power systems with ease. It features an inrush handling capability rated at 4 A (10 ms) to protect downstream equipment during startup surges. With a typical input wattage of 17 W, the cable maintains efficient power consumption even under heavy load. The integrated internal DC bus capacitance between 110-240 μF ensures stable voltage supply for connected servo drives.
The PWR-AKM-030M integrates multiple technical safeguards to optimize performance and reliability. Energy absorption is finely tuned across operating conditions, offering 3-7 J at 230 V motor/line, 28-60 J at 460 V motor on 230 V line, and 10-22 J at 460 V motor/line configurations. It operates reliably within an input frequency window of 47-63 Hz and maintains a nominal input current of 2.44-4.18 A RMS. A typical input current of 700 mA further underscores its efficiency under normal loads. The cable’s shunt switch threshold of 780 VDC and max external shunt resistor current of 5.9 A AC govern safe discharge of regenerative energy.
Operational benefits of the PWR-AKM-030M are numerous, enhancing system uptime and control precision. A max shunt resistor power rating of 4.5-5 kW (at minimum resistor) allows effective dissipation of braking energy, while the minimum shunt resistor impedance of 130 Ω ensures predictable dynamic response. The max holding brake driver current of 0.5 A secures loads instantly, preventing unintended motion when power cycles. By smoothing voltage fluctuations, the built-in DC bus capacitance reduces ripple and protects sensitive drive electronics. These features converge to provide high-speed response, consistent torque delivery, and long operational life in complex motion systems.
Integration of the PWR-AKM-030M-CS-000-14-6H cable into existing automation architectures is seamless. The robust design interfaces directly with Kollmorgen servo drives and controllers, leveraging standard connectors and mounting schemes. Its tailored electrical characteristics support applications in robotics, CNC machinery, filling and packaging lines, and other precision motion platforms. By combining energy management, surge protection, and brake control in a single assembly, this servo cable simplifies system design and enhances overall reliability.
