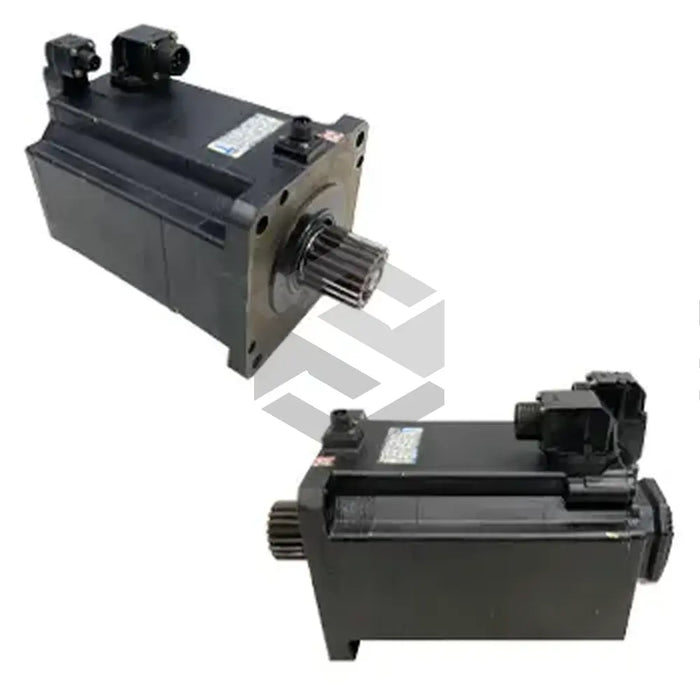

S image of PX-MAF230M-3TB-A

PX-MAF230M-3TB-A

by Okuma
$16,100.00 - $16,100.00
$16,100.00
$16,100.00 - $16,100.00
$16,100.00

In Stock, Ships 1 - 3 Days

The PX-MAF230M-3TB-A from Okuma features an integral motor/spindle design that boosts rigidity and dampens vibration. Part of the PREX Servo Motors series, it reaches a 5000 rpm turning spindle speed and 427 N·m torque (10 min). It delivers a 3 s rapid traverse and a 4.4 mm² turning capacity.

The motor supports 6000 rpm milling speed and 30 kW output (15 min). Spindle bearings measure 80 mm inner and 120 mm outer diameters. It cuts cycle time by up to 20% in heavy-duty applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Cycle time reduction

up to 20%

Max machining diameter

Ø410 mm

Milling max spindle speed

6000 rpm

Milling motor output (15 min)

30 kW

Milling motor output (continuous)

22 kW

Motor/spindle integral design

improves rigidity, reduces vibration

Rapid traverse time

3 s

Spindle bearing inner dia

80 mm

Spindle bearing outer dia

120 mm

Spindle indexing time

0.1 s

Turning capacity

4.4 mm²

Turning max spindle speed

5000 rpm

Turning motor output (10 min)

22 kW

Turning motor output (continuous)

15 kW

Turning torque (10 min)

427 N·m

Turning torque (20 min)

346 N·m

Turning torque (continuous)

281 N·m

Turret machining diameter

Ø340 mm
