Q1AA07075DXS00M

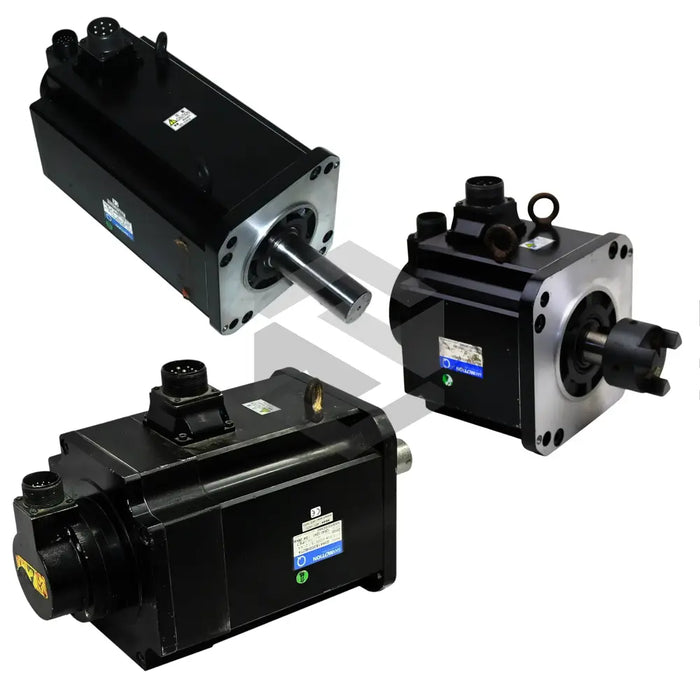

The Sanyo Denki Q1AA07075DXS00M servo motor is a high-performance industrial actuator from the renowned Q SANMOTION Servo Motors series by Sanyo Denki. This compact unit delivers a Rated Output Power of 0.75 kW and a continuous Rated Torque of 2.38 N·m, making it ideal for medium-duty automation tasks. It operates at a precise Rated Speed of 3000 min⁻¹ with a steady Rated Current of 4.3 Arms, ensuring consistent performance under load. The motor’s Phase Resistance is specified at 0.633 Ω, optimizing current draw and thermal efficiency. Its Cooling Method is self-cooling, eliminating the need for external fans or heat sinks, while the robust Protection Rating of IP67 guarantees dust-tight operation and protection against temporary immersion.

Performance characteristics of the Q1AA07075DXS00M emphasize rapid dynamic response and torque delivery. The peak output is characterized by a Peak Torque of 7.16 N·m and a Peak Current of 15.0 Arms, enabling short-duration bursts for acceleration or high-load transitions. A low Inertia (including Wiring) of 0.636×10⁻⁴ kg·m² supports agile motion profiles, while the Maximum speed rating of 5000 min⁻¹ extends the operating envelope for fast positioning tasks. Electrical characteristics include a precise Torque Constant of 0.613 N·m/Arms and a Voltage Constant of 21.4 V/min⁻¹, facilitating efficient conversion between electrical input and mechanical output. Continuous stability is maintained by a Continuous Stall Torque of 2.38 N·m and a corresponding Continuous Stall Current of 4.3 Arms, ensuring reliable torque at standstill and during low-speed operation.

Engineered for reliability and seamless integration, this servo motor excels in industrial automation systems where space and environmental resilience are critical. The IP67 rating and self-cooling design minimize maintenance downtime and safeguard against contaminants in harsh factory conditions. Its low inertia profile accelerates response times, making it well suited for pick-and-place, packaging, and assembly line applications. Integration into multi-axis controllers or CNC platforms is simplified by standardized electrical interfaces and a compact form factor. With Sanyo Denki’s proven quality standards, the Q1AA07075DXS00M offers a robust solution for precise, high-frequency motion control in demanding industrial environments.
