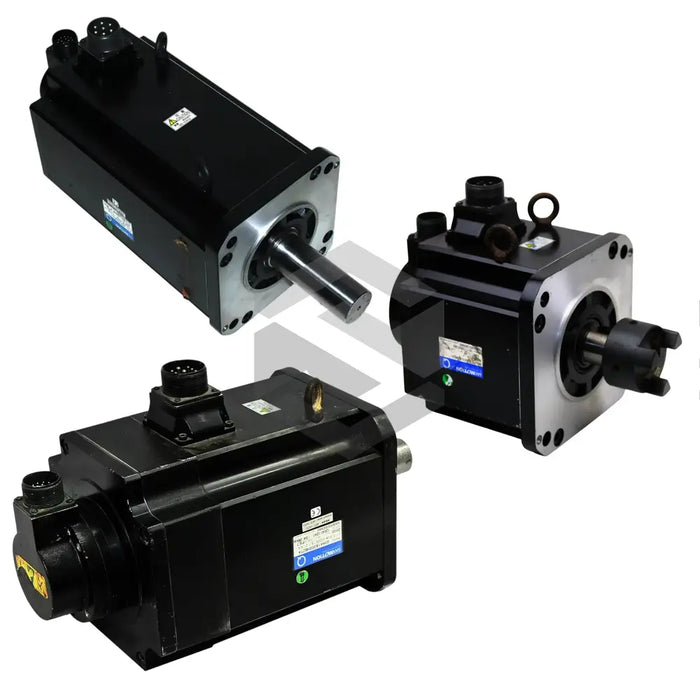

The Q1AA13500DXP0EM is a 5 kW rated output servo motor by Sanyo Denki in the Q SANMOTION Servo Motors series, delivering a rated speed of 3000 min⁻¹ and a rated torque of 15.7 N·m, peaking at 47.6 N·m stall torque with a continuous stall torque of 18.1 N·m. It draws 25.8 Arms and features an inertia of 8.47×10⁻⁴ kg·m² and a torque constant of 0.724 N·m/Arms, ensuring high precision and dynamic response.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Aluminum Plate Dimensions
t20×540 mm
Continuous Stall Current
27.5 Arms
Continuous Stall Torque
18.1 N·m
Inertia (jm)
8.47×10⁻⁴ kg·m²
Peak Current
83 Arms
Peak Torque
47.6 N·m
Phase Resistance
0.0461 Ω
Rated Current
25.8 Arms
Rated Output
5 kW
Rated Power Rate (qr)
291 kW/s
Rated Speed
3000 min⁻¹
Rated Torque
15.7 N·m
Torque Constant (kt)
0.724 N·m/Arms
Voltage Constant (per Phase, Keφ)
25.3 mV/min⁻¹
