Q1EA06020DXS00M

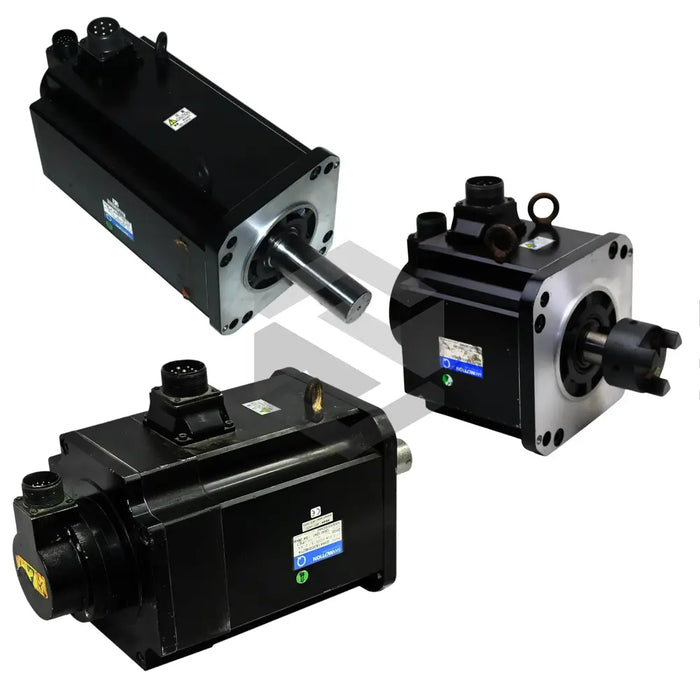

The Sanyo Denki Q1EA06020DXS00M servo motor, part of the Q SANMOTION Servo Motors series, delivers precise motion control in industrial automation applications. Manufactured by Sanyo Denki, this compact AC servo motor provides a rated output (pr) of 0.2 kW and operates at a rated speed (nr) of 3000 min⁻¹ with a maximum speed (nmax) of 5000 min⁻¹. It delivers a rated torque (tr) of 0.637 N·m and achieves a peak torque (tp) of 1.91 N·m for dynamic load handling. The motor draws a rated current (ir) of 4.5 Arms under continuous operation and can handle a peak current (ip) of 15.5 Arms for transient bursts. Its lightweight design incorporates an inertia (jm) of 0.141 ×10⁻⁴ kg·m² (including wiring) to support rapid acceleration and deceleration cycles.

Performance characteristics of the Q1EA06020DXS00M emphasize electrical and mechanical responsiveness. The motor’s torque constant (kt) of 0.161 N·m/Arms and voltage constant (keφ) of 5.63 mV/min ensure efficient energy conversion for precision positioning. A low phase resistance (rφ) of 0.327 Ω and minimal mechanical time constant, corresponding to its inertia, deliver smooth current flow and reduced thermal loss. The continuous stall torque (ts) of 0.637 N·m remains stable at high duty cycles, while the rated power rate (qr) of 28.8 kW/s enables rapid power transitions. This servo motor supports feedback integration via an incremental encoder (2000 pulses/rev) for accurate closed-loop control and responds quickly to command changes in high-speed indexing operations.

Built for robust industrial environments, the Q1EA06020DXS00M features an Aluminum Plate t6×305 mm mounting flange to simplify mechanical integration into automated assemblies. Its design ensures consistent performance in ambient conditions up to 40°C and relative humidity levels as high as 90%, without condensation risks. The motor’s balanced electrical parameters and high peak current capability minimize the need for external braking systems, improving overall system reliability. When paired with compatible drives and controllers, it seamlessly integrates into multi-axis motion platforms for applications including pick-and-place robotics, semiconductor handling, and packaging machinery. The Sanyo Denki Q1EA06020DXS00M offers a durable, high-precision solution for demanding industrial automation tasks.
