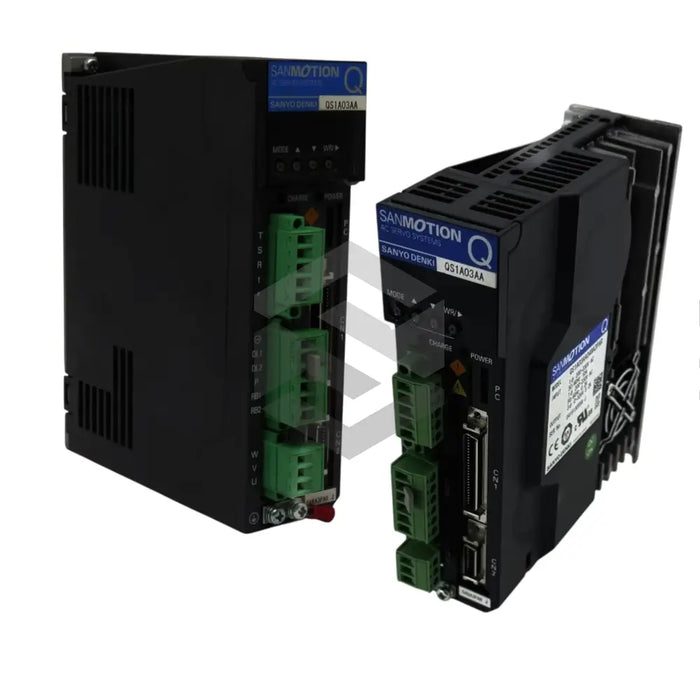

S image of QS1A03AA03501P00

QS1A03AA03501P00

by Sanyo Denki
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The QS1A03AA03501P00 servo amplifier from Sanyo Denki's Q SANMOTION Servo Amplifiers series delivers precise motion control. It supports single and three-phase AC 200-230 V input, features a 600 Hz linear frequency response, and operates from 0 °C to 55 °C ambient temperature. This compact design uses a 3-phase control method with digital logic-level interfaces and integrates overcurrent and thermal shutdown protection. It achieves accuracy tolerances of ±1 % to ±5 %.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Accuracy/tolerance

Typically ±1% to ±5%

Current Consumption

Typically in the milliamp range (<50 mA)

Current Rating

5.8A

Frequency Characteristics

600 Hz Linear

Input Voltage

Single/Three phase AC200-230V

Marking And Identification

Standard manufacturer markings for identification

On-chip Protection

Includes overcurrent and thermal shutdown features

Operating Temperature Range

–40°C to +85°C

Operating Voltage

Approximately 3.3 V to 5 V

Pcb Layout Guidelines

Optimized for thermal dissipation and minimal noise

Phase Type

3-phase

Pin Configuration

Compact, lead frame design

Series/family

QS1A03AA

Signal Interface

Digital logic-level compatible

Switching Frequency

Around 100 kHz (if applicable)
