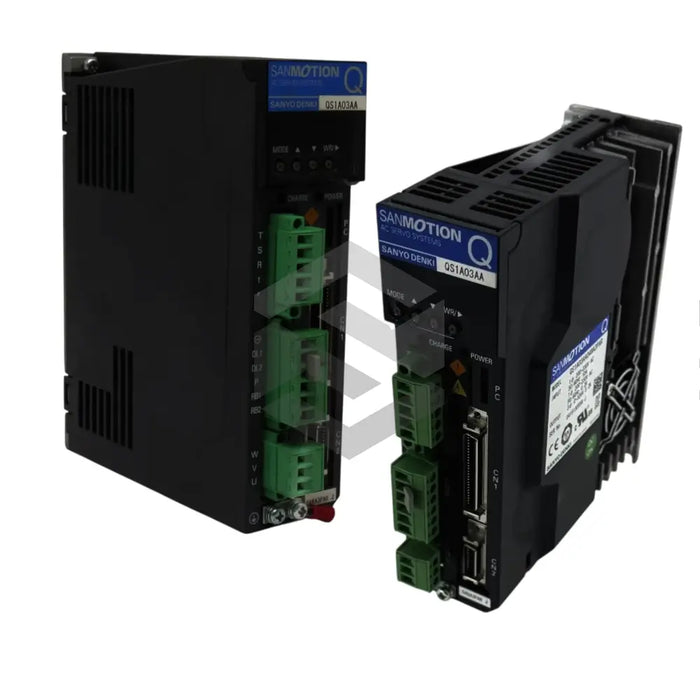

QS1A15AJ02E0MB00

The Sanyo Denki QS1A15AJ02E0MB00 servo amplifier from the Q SANMOTION Servo Amplifiers series provides a compact yet powerful solution for industrial automation motion control applications. Engineered to deliver 200 W of continuous output power, this three-phase unit operates on a 200 V AC main circuit with a tolerance of ±10% at 50/60 Hz ±3 Hz, ensuring robust performance across varied supply conditions. With a nominal speed of 3000 r/min and compliance to IE2 efficiency standards, the QS1A15AJ02E0MB00 achieves precise velocity regulation while minimizing energy consumption. The unit integrates a waterproof protective design, offering resilience in harsh factory environments and facilitating reliable operation in high-humidity zones up to 90% RH. Compactness and ease of installation are emphasized by its manageable mass of 6.8 kg and built-in cooling fan requiring a minimal clearance of 50 mm around the enclosure.

The technical specification matrix of the QS1A15AJ02E0MB00 highlights critical parameters for advanced engineering integration. The servo amplifier accepts a +24 VDC ±10% interface voltage for control logic, while the main AC input spans 200–230 V AC ±10%, supporting three-phase power delivery. Its 15 A amplifier capacity facilitates high torque production when paired with compatible P series motors, and the internal encoder interface supports a wire-saving incremental type delivering 6000 pulses per revolution. Environmental tolerances include a storage temperature range of -20 to +65°C, an operating temperature window from 0 to +55°C, 0.5 G vibration resistance across 10–55 Hz, and 5 G shock resistance, assuring dependable functionality under mechanical stress. The unit’s waterproof construction is rated for industrial use, safeguarding internal electronics against dust and water ingress.

Operational features of the QS1A15AJ02E0MB00 center on versatile control modes and dynamic performance. Engineers can switch between speed, torque, and position loops, with advanced presets for speed–torque, position–torque, and position–speed transfer functions to meet application-specific kinematic requirements. The amplifier’s rapid response characteristics are supported by precise feedback from the high-resolution encoder input, enabling tight loop performance for acceleration and deceleration profiles. Thermal management is maintained via the integrated fan and optimized heat sink, keeping junction temperatures within safe limits even under sustained 15 A currents. The waterproof housing and broad humidity tolerance allow continuous operation in casting, packaging, and material handling systems without degradation of control accuracy.

System integration is streamlined through the amplifier’s standardized communication interfaces and mounting footprint compatible with existing drive racks and control cabinets. The QS1A15AJ02E0MB00 pairs seamlessly with Sanyo Denki’s motor catalog to deliver turnkey solutions for CNC machines, robotic arms, conveyors, and precision assembly equipment. Its compliance with IEC protection classes and industrial safety standards simplifies certification efforts in global manufacturing facilities. This amplifier is ideal for applications requiring compact form factors, rigorous environmental resilience, and multi-loop control flexibility in high-throughput automation scenarios.
