QS1J03AA0WNA3P01
by Sanyo Denki

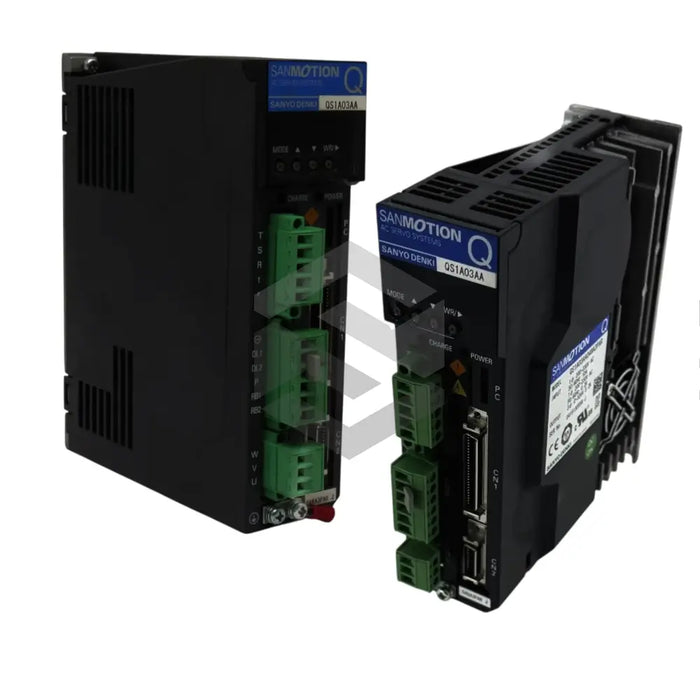

The Sanyo Denki QS1J03AA0WNA3P01 is a precision servo amplifier from the Q SANMOTION Servo Amplifiers series, designed to deliver advanced motion control in industrial automation. As a versatile unit supporting speed, torque, and position control, it offers a remarkable speed control range of 1:5000 for exceptional responsiveness across diverse applications. Operating on AC 200V input with a frequency characteristic of 600Hz (JL=JM), this amplifier ensures rapid and stable performance. Its primary function is to regulate motor behavior through precise command interfaces, making it ideal for high-dynamics systems requiring accurate motion profiles.
The QS1J03AA0WNA3P01 integrates a range of robust technical specifications for reliable operation. It features a Built-in Brake to secure motor stops and prevent drift, while an AWG8 Main Circuit Wire Diameter accommodates high current loads. The device accepts up to 5M pulses/s as its Max Input Pulse Frequency, enabling fine-grained control commands. Monitoring is facilitated via dual outputs delivering 2.0V±10% (speed & current) signals for real-time diagnostics. Comprehensive Protection Functions guard against overload, regeneration errors, overvoltage, and low voltage, enhancing system safety and longevity.
Beyond core performance, this amplifier offers extensive compatibility and durability features. A wide Storage Temperature range of –20 to +65°C ensures resilience in harsh environments. Sequence Input Signals such as servo on, alarm reset, torque limit, external trip, and E-stop afford seamless integration into safety-critical installations. By consolidating regeneration resistance, DB resistance, and processing circuits internally, the unit eliminates the need for external regeneration modules, minimizing setup complexity and reducing footprint. The result is a highly efficient, compact servo amplifier that streamlines commissioning and maintenance while delivering sustained precision and reliability in industrial applications.
