QS1L03AA07E01P00

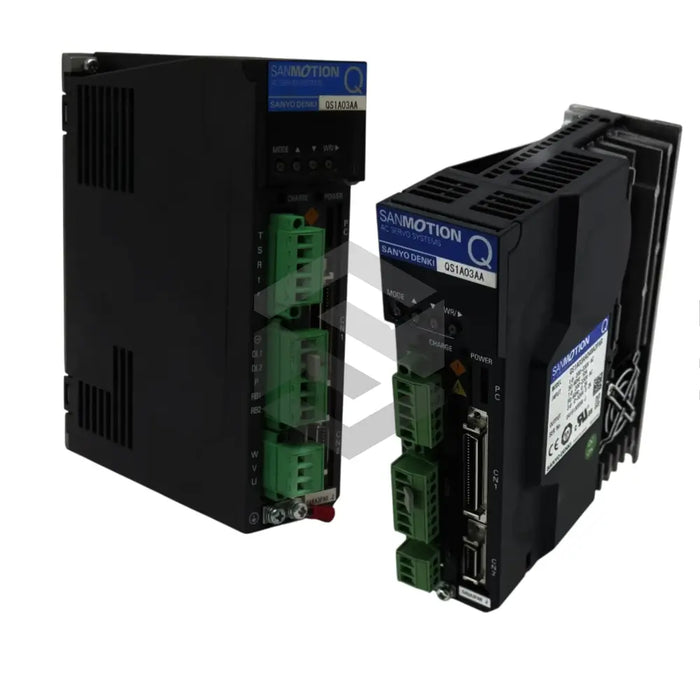

The Sanyo Denki QS1L03AA07E01P00 servo amplifier represents a high-performance solution in the Q SANMOTION Servo Amplifiers series, engineered by Sanyo Denki for advanced industrial automation. This E type variant module delivers enhanced functionality through a multi-channel digital output configuration, enabling precise control over several actuator channels simultaneously. Designed for reliability in demanding settings, the QS1L03AA07E01P00 integrates robust overcurrent protection and short-circuit protection to maintain safe operation under fault conditions. Its streamlined form factor supports a panel mount installation, conserving space and simplifying system layouts. Engineered for continuous duty, this amplifier ensures consistent performance in complex automation workflows.

The QS1L03AA07E01P00’s technical specifications underline its suitability for a broad range of industrial applications. It operates on a 24 V DC input voltage, drawing a current rating of 1–5 A to match diverse load requirements. The device achieves industrial safety compliance with an isolation voltage of ≥500 V DC, safeguarding user circuitry against voltage transients. Communication is handled via a PLC-compliant digital interface, ensuring seamless integration with control systems. This Type E module supports an operating temperature range of −10 °C to +55 °C, enabling stable operation across fluctuating factory environments. Configured for industrial automation tasks, it features a multi-channel digital output architecture for multi-axis control. Mounting is performed via a panel mount approach, facilitating secure placement within control cabinets. Additional protective measures include independent overcurrent protection and dedicated short-circuit protection per output channel.

Operational performance of the QS1L03AA07E01P00 is optimized through its digital control scheme, which minimizes latency in command execution and feedback processing. The amplifier’s robust thermal management accommodates extended duty cycles without derating, ensuring that output channels maintain full capacity up to the upper ambient threshold. Real-time fault detection rapidly responds to abnormal current flows, isolating affected channels and preserving overall system continuity. Its low electromagnetic emission profile aligns with industrial EMC standards, reducing interference with neighboring equipment. The servo amplifier’s precise digital outputs yield repeatable switching behavior, enhancing synchronization across multiple motion axes.

System integration is streamlined by the device’s native compatibility with leading PLC platforms, allowing engineers to deploy the QS1L03AA07E01P00 directly into existing automation architectures. The compact panel mount design eases retrofitting and new installations in control panels where space is constrained. This module excels in applications such as pick-and-place robotics, conveyor motion control, and assembly line sequencing, where multi-channel coordination and high reliability are essential. By leveraging the robust safety and interface features of the Q SANMOTION Servo Amplifiers series, machine builders can achieve superior performance in industrial automation deployments.
